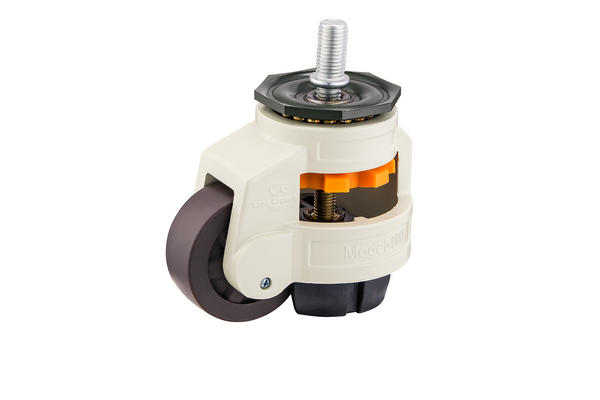

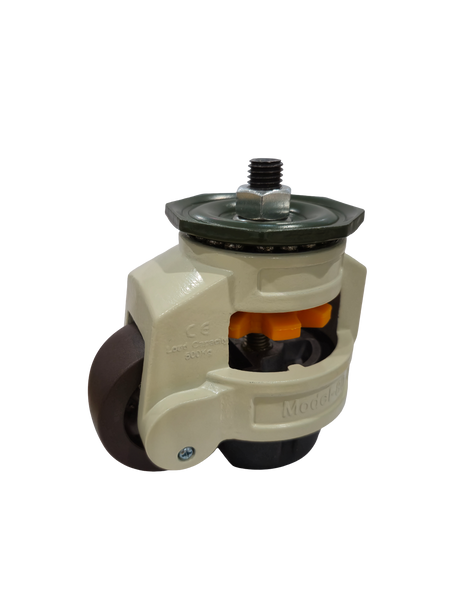

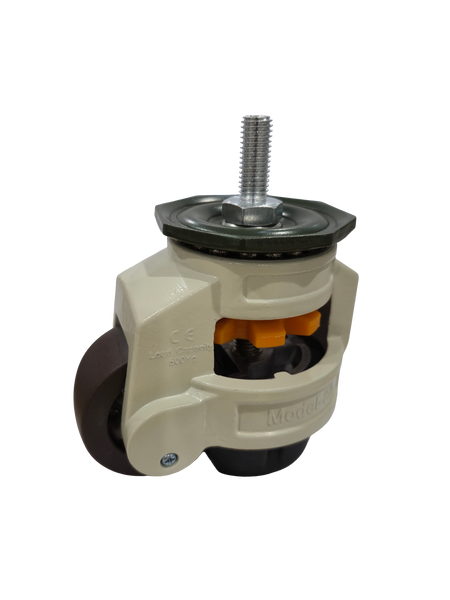

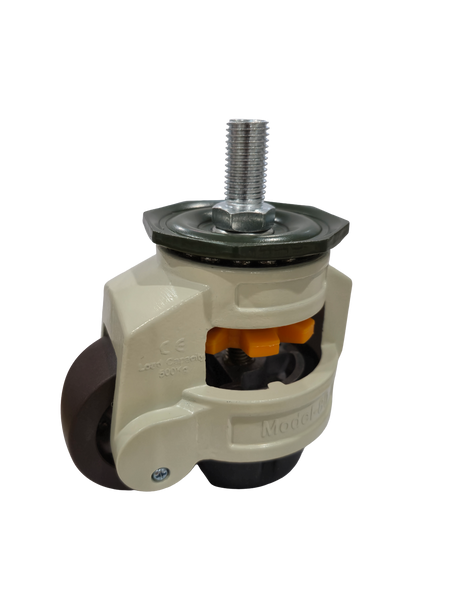

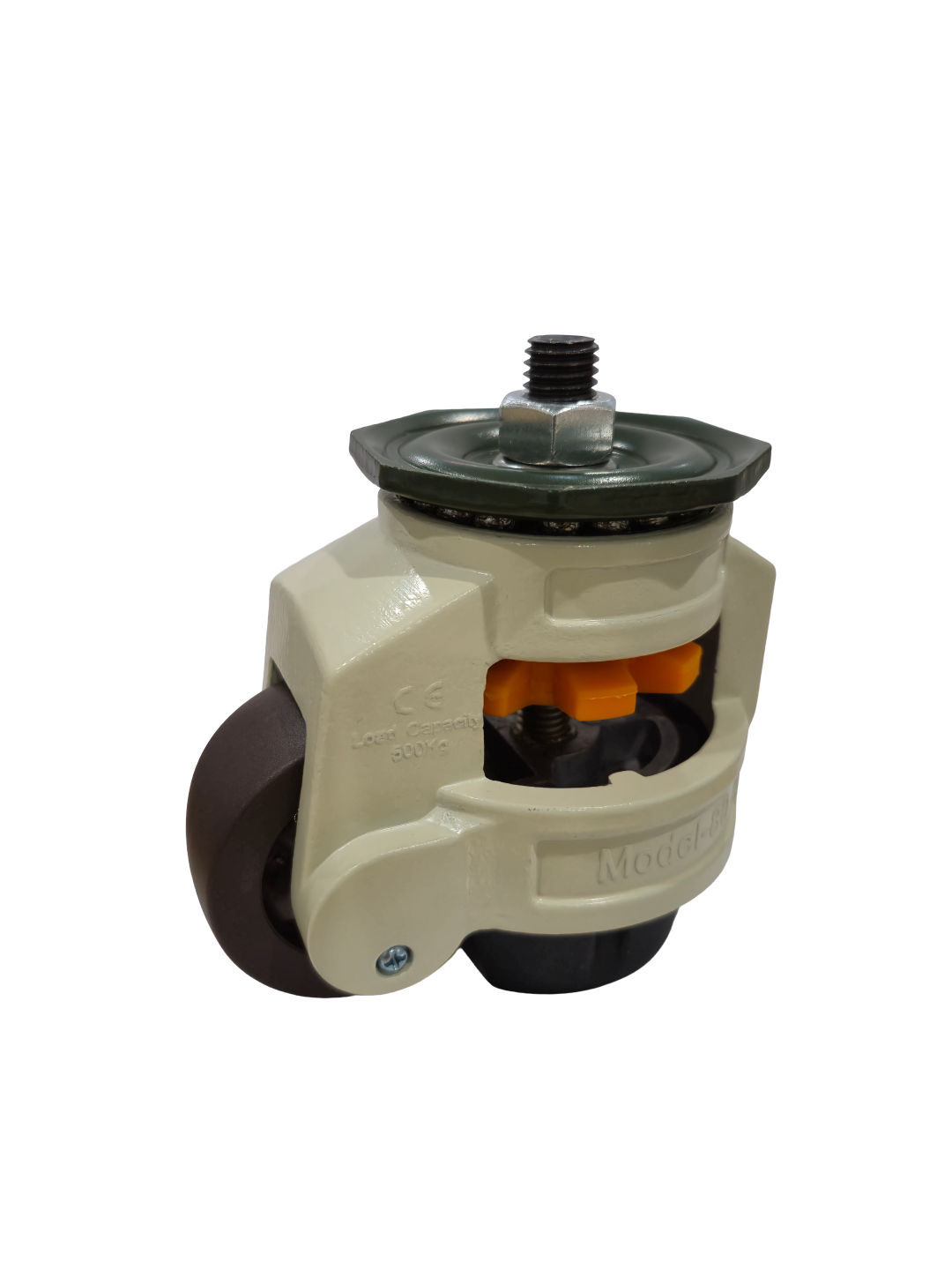

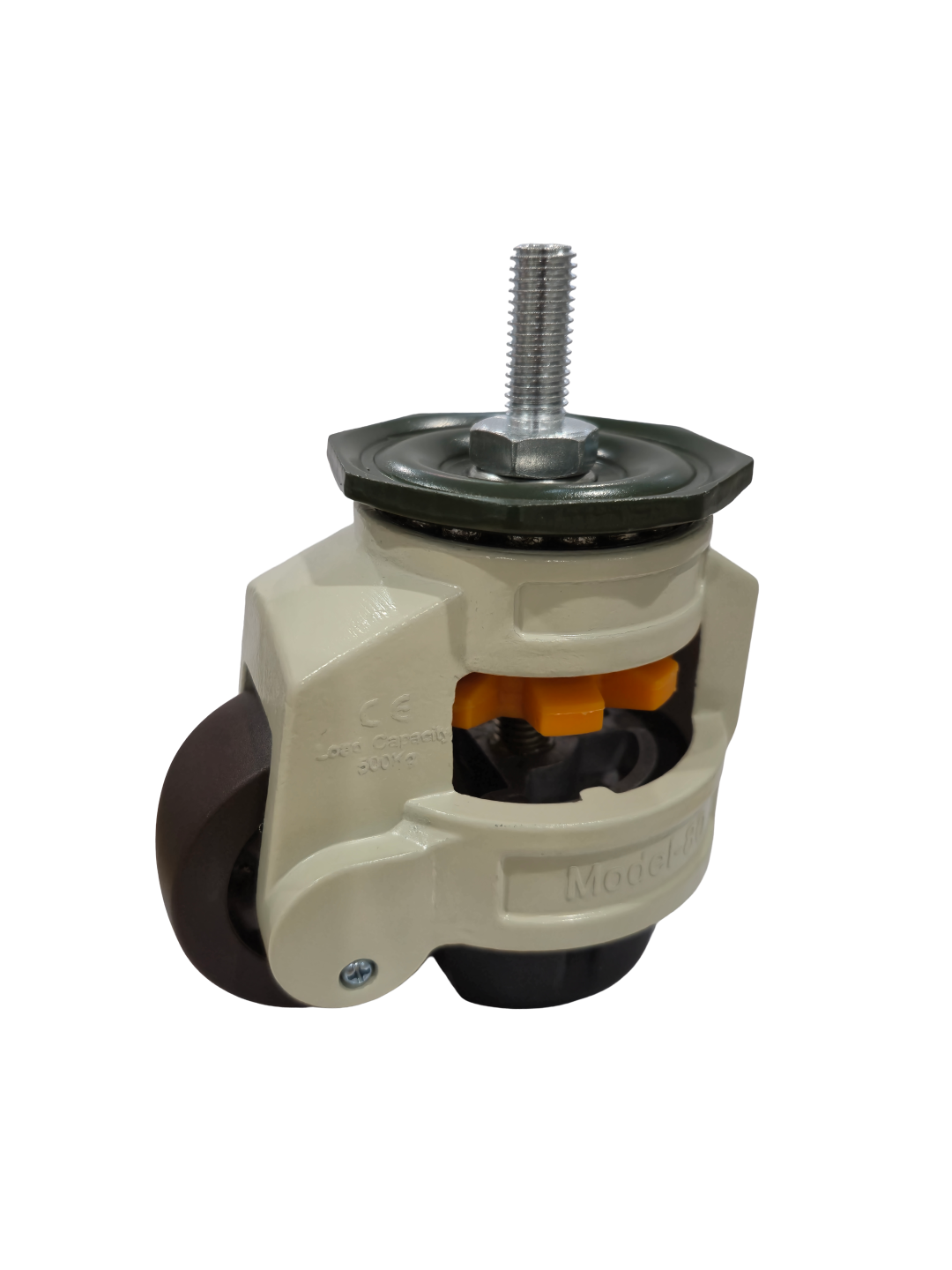

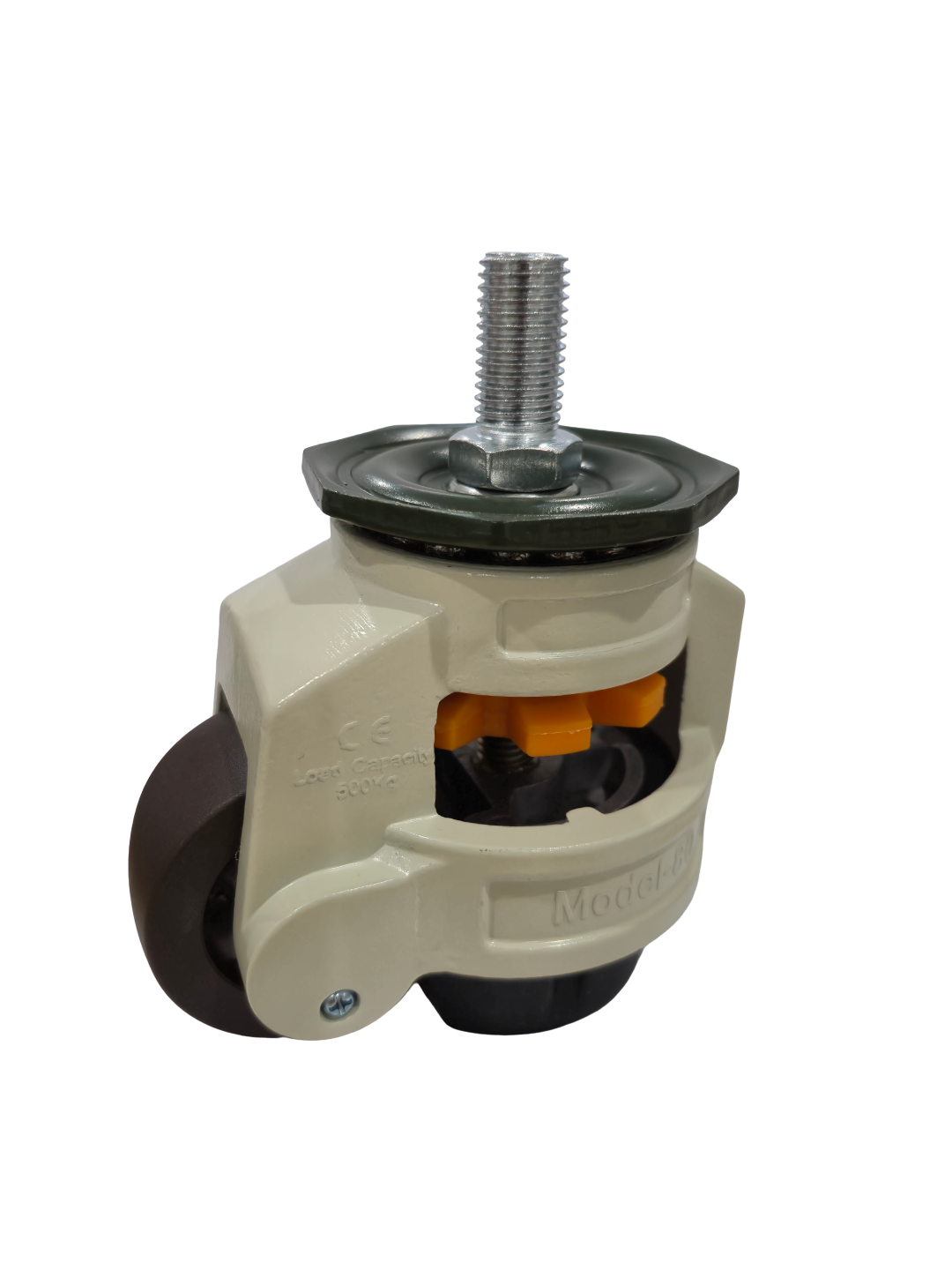

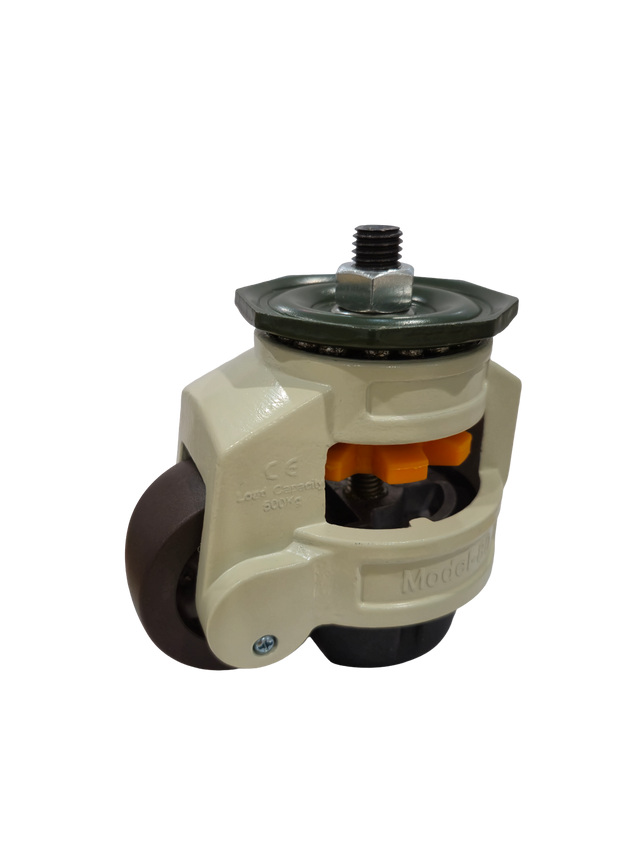

LV62HWHT-BH(14) - Level/Height Adjustment Castor 500kg
Shipping calculated at checkout.
LV62HWHT-BH(14) is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
LV62HWHT-BH(14) is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU LV62HWHT-BH(14)
-
Castor TypeLevelling Castor
-
Capacity500 kg
-
Swivel Radius75 mm
-
Overall Height110 mm
-
Lift Height+12 mm
- Wheel
-
Wheel DiameterØ62 mm
-
Tread Width30 mm
-
Tread MaterialNylon
- Frame
-
Frame FinishCream Power Coat
-
Mounting TypeThreaded Pintle
-
Pintle ThreadM14
-
Thread Length30 mm
- Frame
-
Axle TypeBolted
- Bearing & Bore
-
TypeBush
- Lift Operation: Rotating ringer operated wheel (orange)
- Adjustment Range: +12mm
- Overall Height: 110-122mm

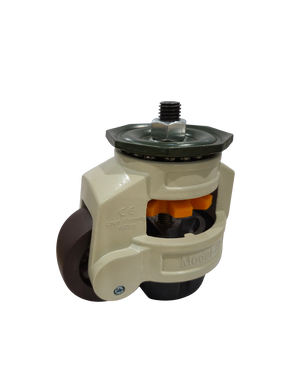

The LV62HWHT-BH(14) 62mm levelling castor offers a 500kg capacity per castor with M14 threaded pintle mounting. It combines a nylon swivel wheel and adjustable rubber foot for heavier workbenches, machinery and equipment with a compatible mounting arrangement.
The finger-operated handwheel provides 12mm of height adjustment. Lowering the foot lifts the wheel clear of the floor, allowing the equipment to be levelled and supported on vibration-reducing rubber. Retract the foot to return the equipment to its wheels for repositioning.
The cast alloy body has a cream powder-coated finish. The pintle thread is 30mm long, and the overall height adjusts from 110 to 122mm.
For heavier loads, relieve the load on the castor before adjusting the foot.
