LV40HBLK - Level/Height Adjustment Castor 50kg

$36.96
GST included.
Shipping calculated at checkout.
Data sheet Data Sheet PDF

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 50 kg per castor
  • Mounting Type: Plate, 55mm x 55mm - Holes 7mm 42mm x 42mm Centres
  • Wheel Material: Nylon
  • Wheel Bearing Type: Plain Bush
  • Frame Finish: Black Powder Coat
  • Wheel Diameter X Tread Width: 40mm x 22mm
  • Swivel Radius: 50.5mm
  • Lift/Levelling Operation: Finger Operated Rotating Wheel (orange)
  • -adjustable Range: 0-8mm
  • Overall Height: Castor 75mm+8mm at max height adjustment

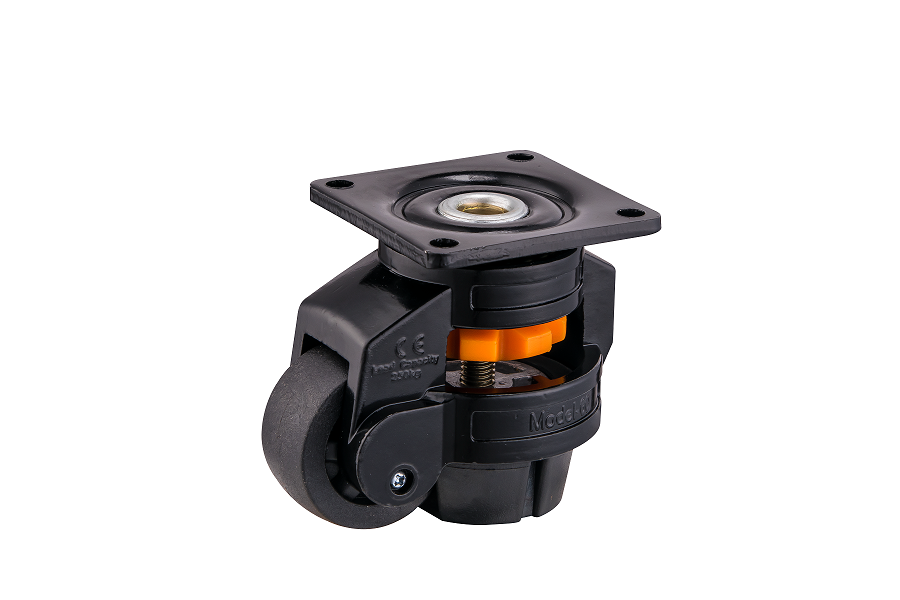

Finger operated levelling castor. Anti vibration rubber foot and nylon wheel. Cast alloy body with powder coat finish. Once the rubber foot is lowered the castor wheel is raised off the ground (heavier loads must be taken off castors to allow adjustment). When the foot is wound up the wheel contacts the ground and becomes a swivel castor. Suitable for workbenches, pool tables, machinery and displays. 200kg max load over 4 units.

  • Castor Type
    Swivel
  • Frame Finish
    Black Powder Coat
  • Maximum Capacity
    50 kg
  • Wheel Diameter
    40 mm
  • Tread Material
    Nylon
  • Tread/Wheel Width
    22 mm
  • Bearing Type
    Plain Bush
