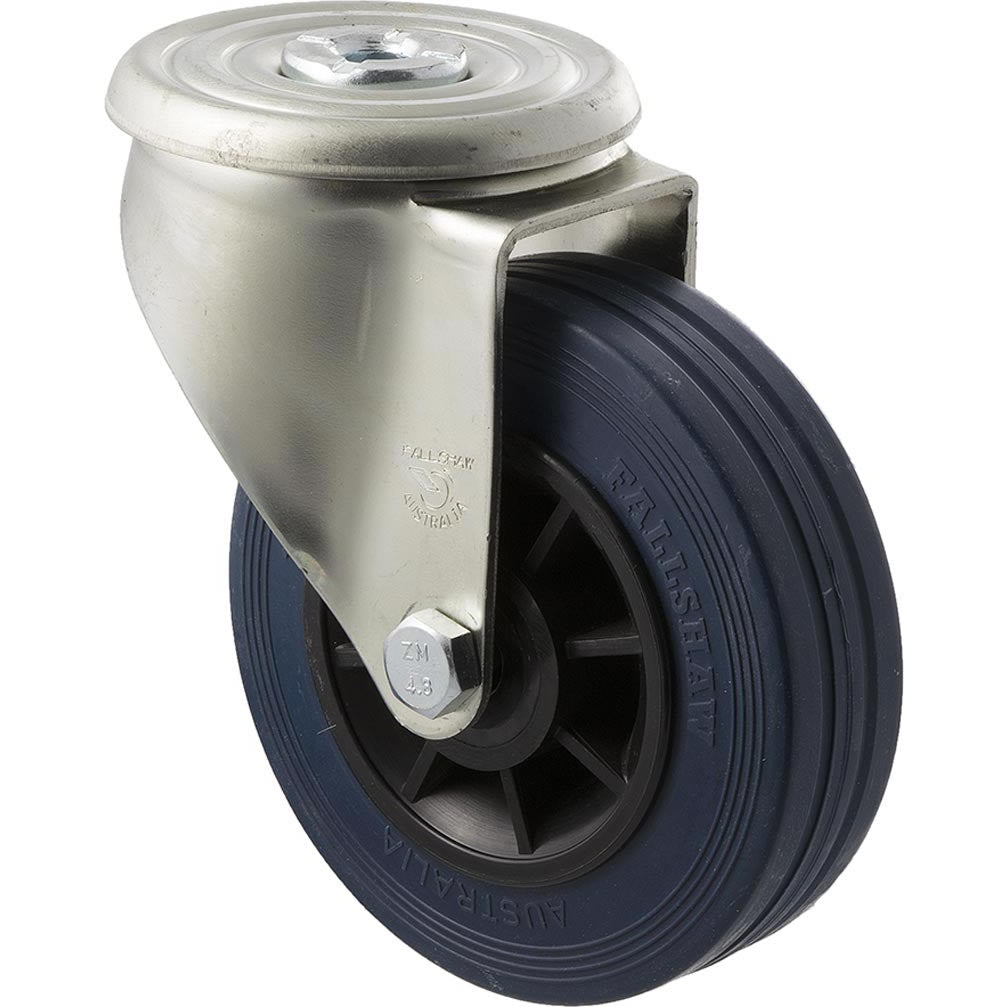

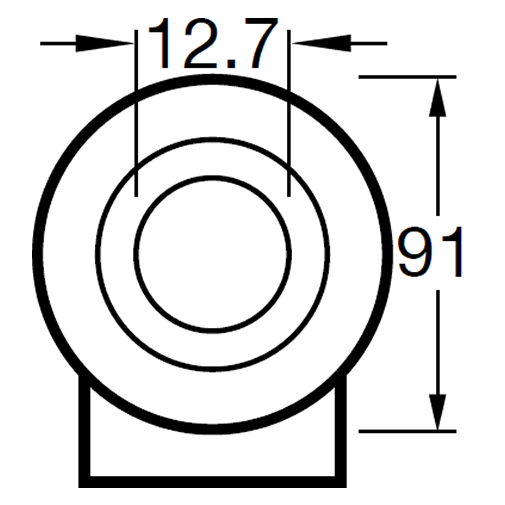

JBR125/JZH 180 Kg Zinc Castor Bolt-Hole Blue Rubber 125mm x 35mm

CBQ100G/MZH 100 Kg Zinc Castor Bolt-Hole Blue Rubber 100mm x 30mm

$29.75 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ100G/MZHDL 100 Kg Zinc Castor Bolt-Hole Direction Lock Only Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ100G/MZHTB 100 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ125G/MZH 100 Kg Zinc Castor Bolt-Hole Blue Rubber 125mm x 30mm

$33.05 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 30mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 103mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ125G/MZHDL 100 Kg Zinc Castor Bolt-Hole Direction Lock Only Blue Rubber 125mm x 30mm

$40.75 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 30mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ125G/MZHTB 100 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 125mm x 30mm

$40.75 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 30mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ75G/MZH 85 Kg Zinc Castor Bolt-Hole Blue Rubber 75mm x 30mm

$27.55 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 85 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 75mm x 30mm
• -Overall Height- 106mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ75G/MZHDL 85 Kg Zinc Castor Bolt-Hole Direction Lock Only Blue Rubber 75mm x 30mm

$35.25 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 85 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 75mm x 30mm
• -Overall Height- 106mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CBQ75G/MZHTB 85 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 75mm x 30mm

$35.25 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 85 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 75mm x 30mm
• -Overall Height- 106mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 118mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CFQ175/CPH 45 Kg Black Paint Castor Swivel Foamed Urethane 175mm x 45mm

$86.70 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 45 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Foamed Urethane
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Black Paint
• -Wheel Diameter X Tread Width- 175mm x 45mm
• -Overall Height- 225mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 130mm

Wheelchair specific castor. EVA foam wheel non-marking

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

CFQ200/CPH 45 Kg Black Paint Castor Swivel Foamed Urethane 200mm x 45mm

$93.85 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 45 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Foamed Urethane
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Black Paint
• -Wheel Diameter X Tread Width- 200mm x 45mm
• -Overall Height- 237mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 144mm

Wheelchair specific castor. EVA foam wheel non-marking

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

DCI75/MZH 100 Kg Zinc Castor Bolt-Hole Cast Iron 75mm x 32mm

$28.85 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 75mm x 32mm
• -Overall Height- 106mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- N/A
• -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.
