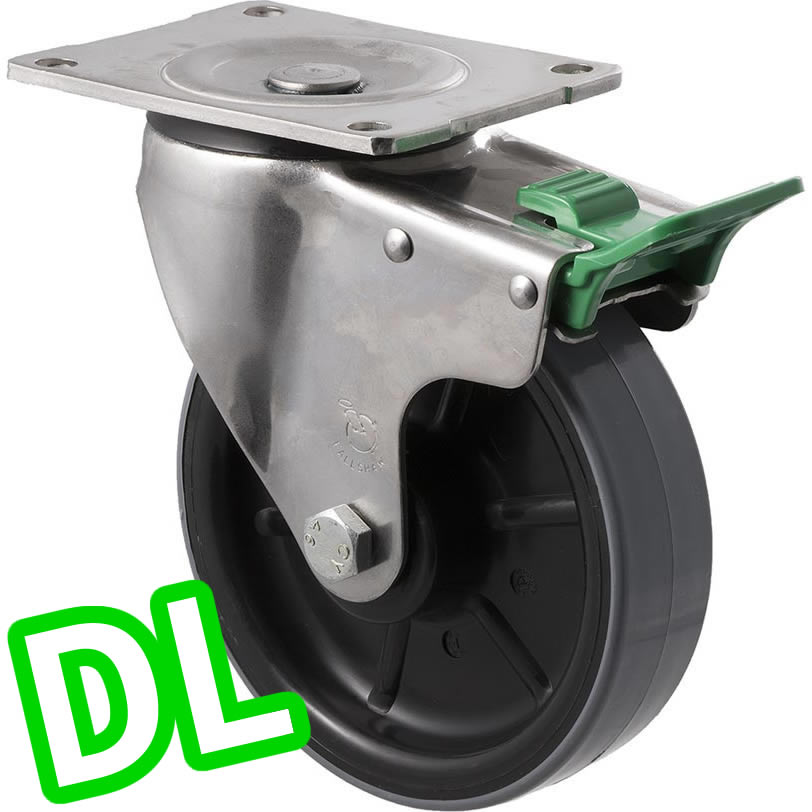

HUS150/OSPDL - 450 kg Stainless Steel Swivel Plate Direction Lock Only 150mm Polyurethane
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
HUS150/OSPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
HUS150/OSPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU HUS150/OSPDL
-
Castor TypeSwivel
-
Capacity450 kg
-
Overall Height189 mm
- Wheel
-
Wheel DiameterØ150 mm
-
Tread Width40 mm
-
Wheel MaterialNylon
-
Tread MaterialPolyurethane
- Frame
-
Frame FinishStainless Steel
-
Axle TypeBolted
- Bearing & Bore
-
TypeStainless Steel Needle Roller
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 450 kg
- Brake Type:Direction Only

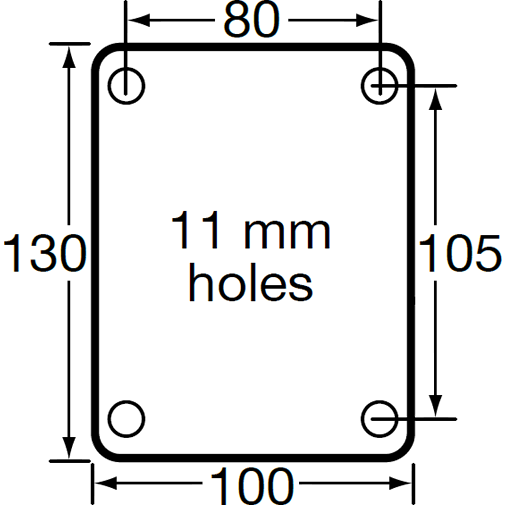

- Mounting Type: Plate
- Wheel Material: P/U on Nylon
- Wheel Bearing Type: S/S Needle Roller
- Thread Guard Fitted?: No
- Frame Finish: Stainless Steel
- Wheel Diameter X Tread Width: 150mm x 40mm
- Overall Height: 189mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 140mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavier industrial stainless steel polyurethane castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.
Click the wheel only option to view other HUS150 frame options.
