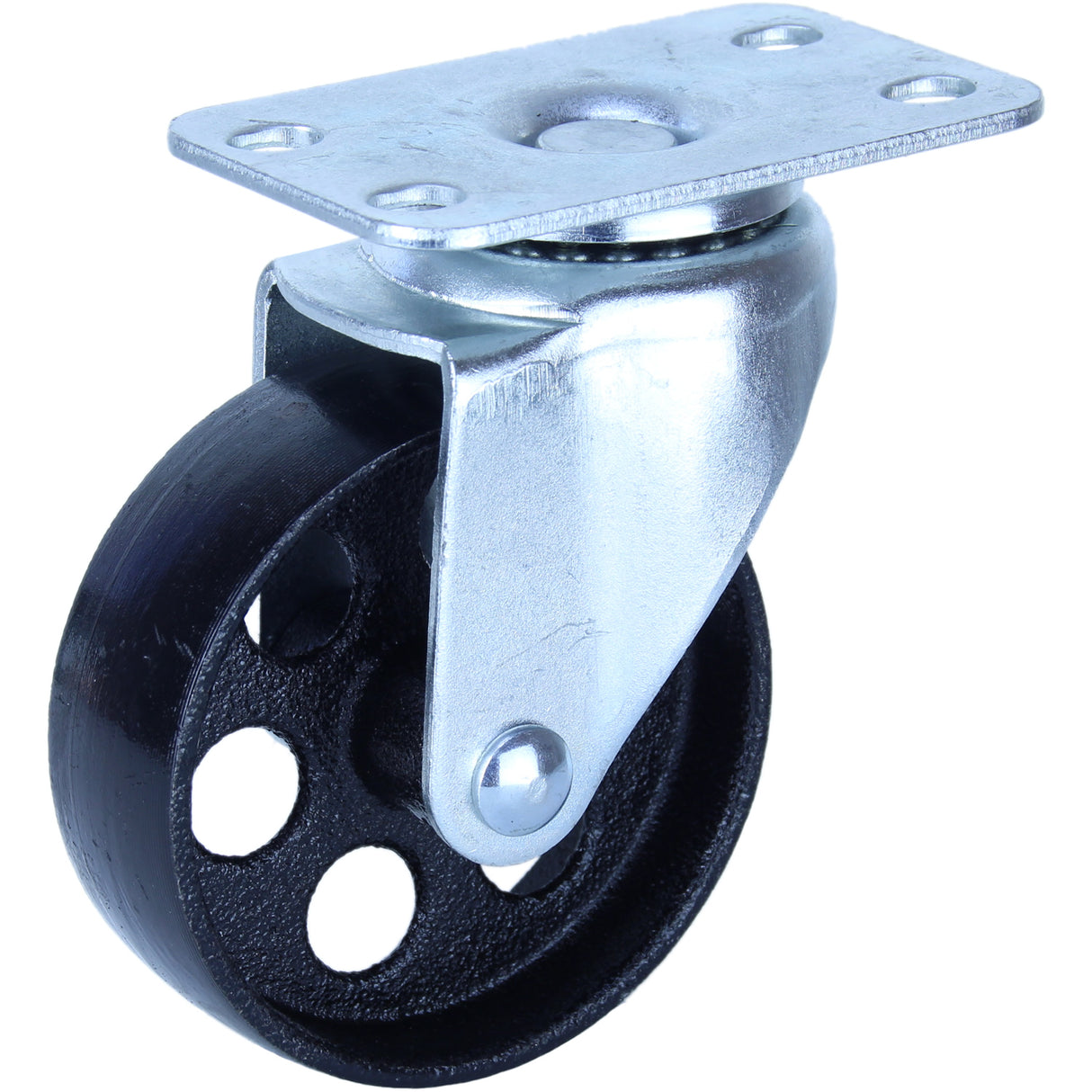

ECC88 88mm Large Cast Iron Engine Crane Castor

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- Not rated!
• -Brake Type- N/A

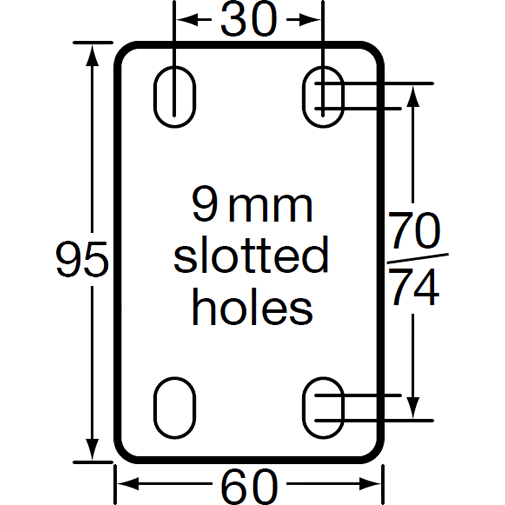

• -Mounting Type- Plate
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Mild Steel
• -Wheel Diameter X Tread Width- 88mm x 29mm
• -Overall Height- 115mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 71mm

Large engine crane castor used mostly as the rear or front leg support of most engine cranes available.
