WV68 80 Kg 68mm V Groove


Technical Specifications.

  • -Groove Type- V Groove
  • -Load Capacity- 80 Kg
  • -Wheel Diameter- 68mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 27mm
  • -Groove Width- 14mm
  • -Groove Depth- 9mm
  • -Bearing Type- Ball Bearing
  • -Bracket Width- 44mm
  • -Bracket Length- 80mm
  • -Mounting hole Centres- 50mm
  • -Mounting hole size- 10mm
  • -Overall Height- 78mm

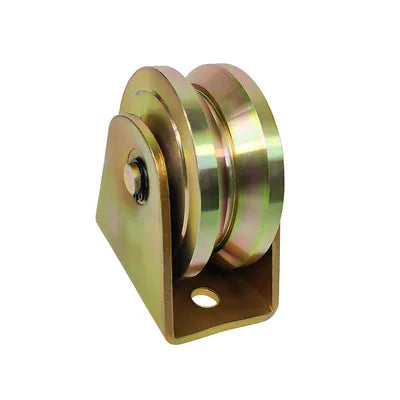

Machined steel "V" groove wheel fitted to bracket. Suitable for running on angle iron tracks. Wheel is removable via circlips to allow for bracket mounting.

$28.75 (Incl. GST)

Make an enquiry about this product: WV68 80 Kg 68mm V Groove
