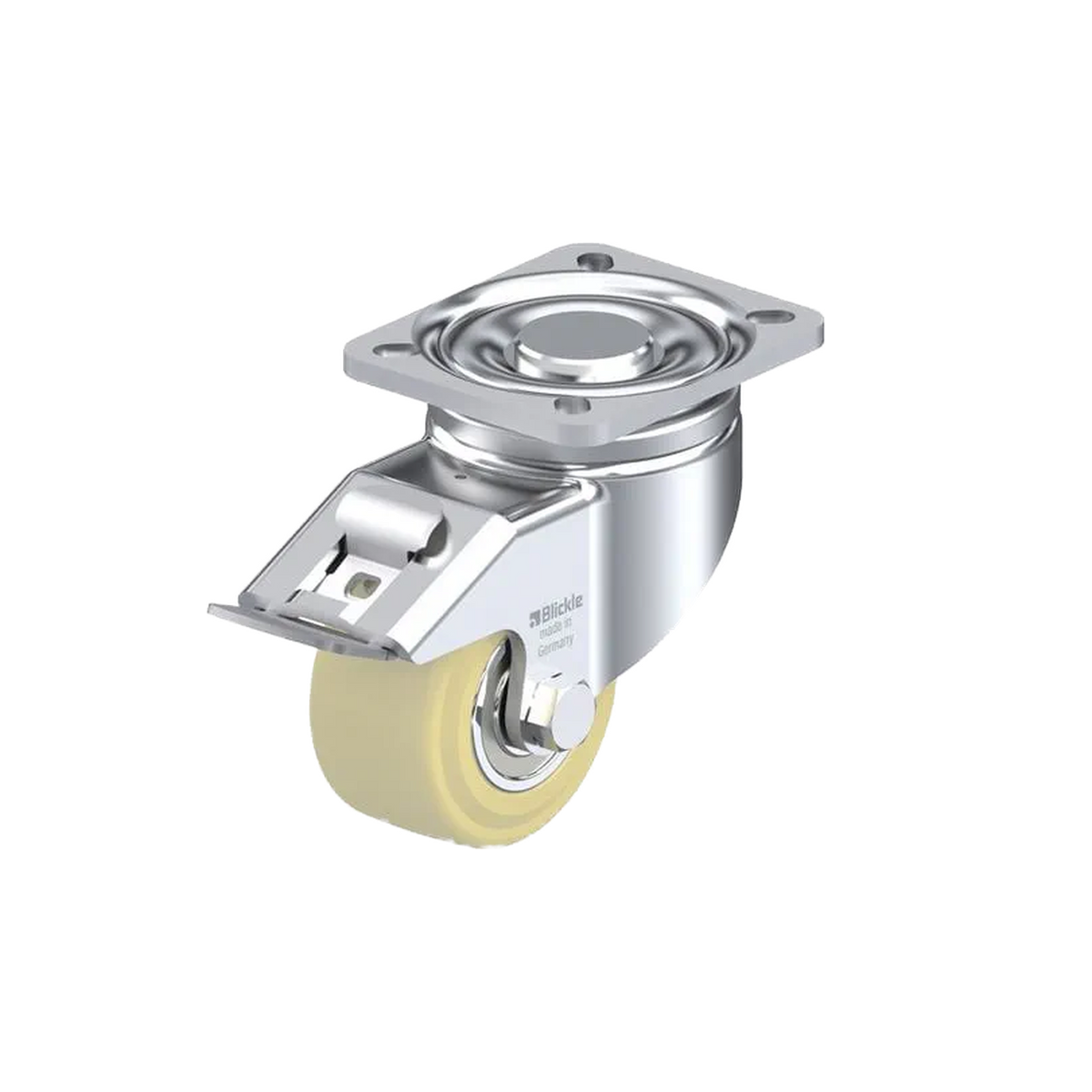

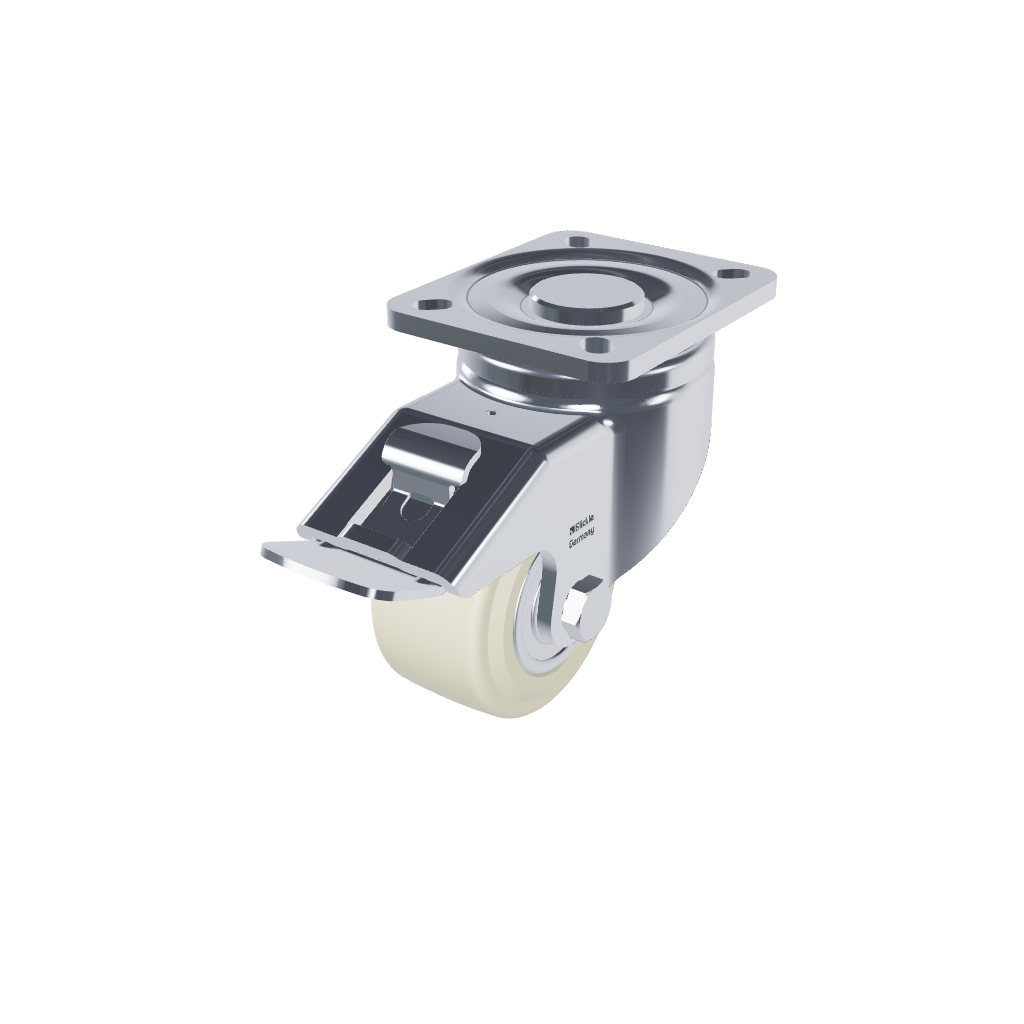

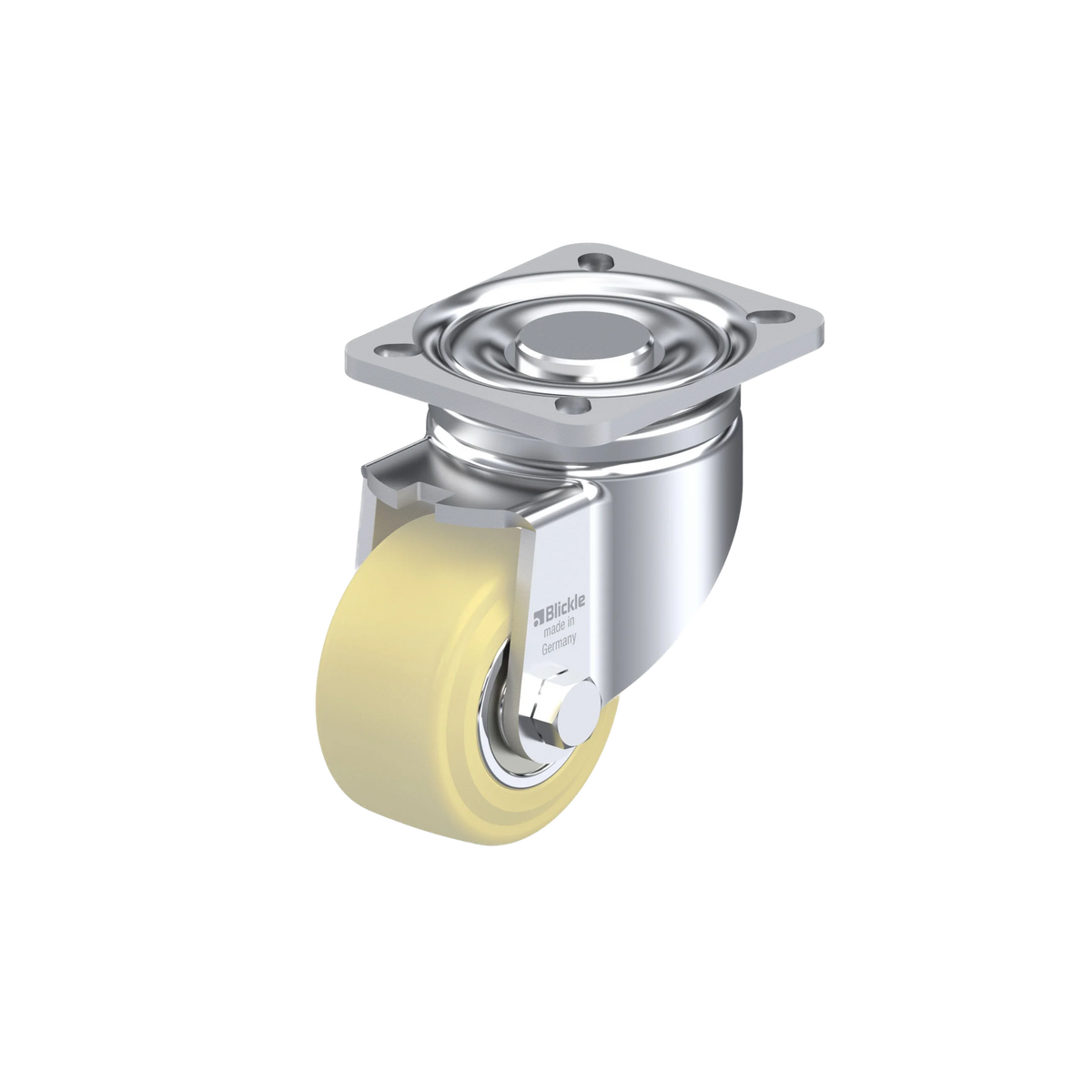

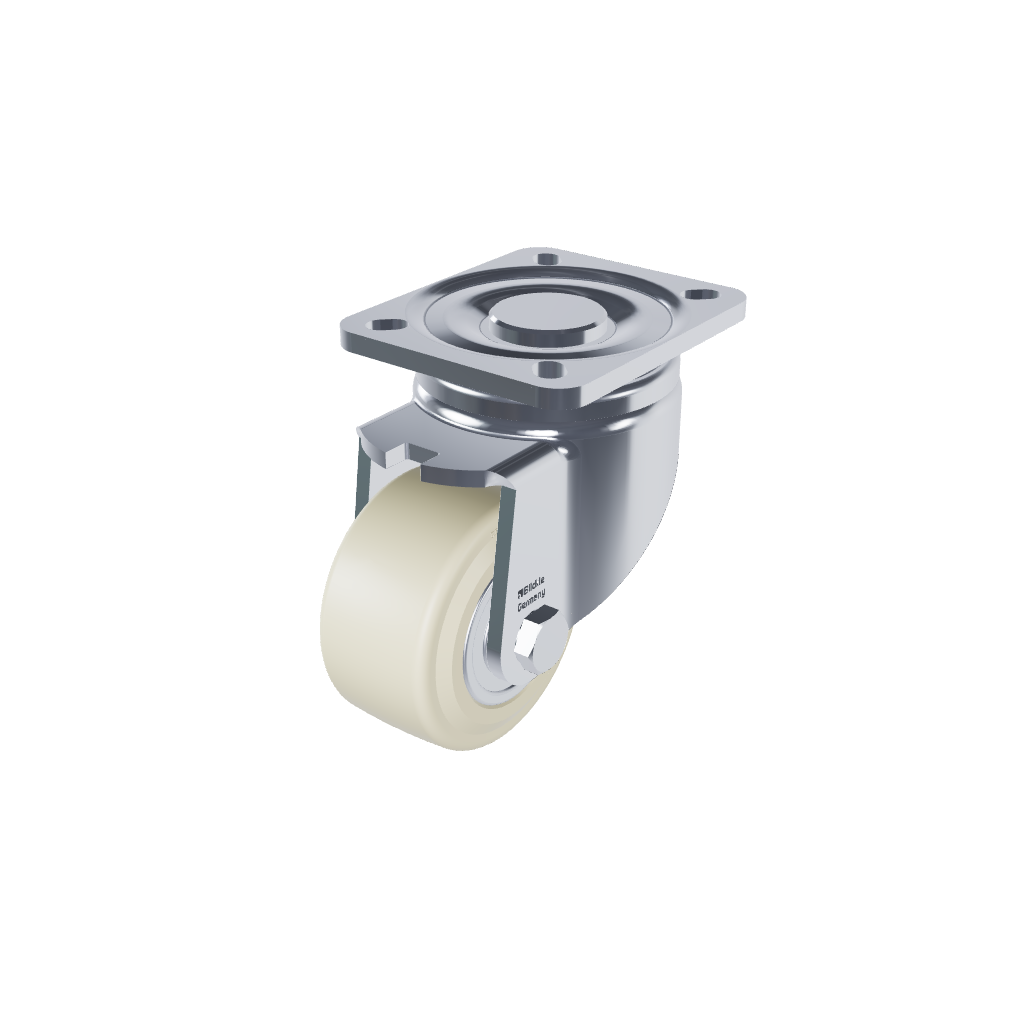

Blickle GSPO Heavy Duty 80mm Swivel Plate Compressed Nylon Castor
Shipping calculated at checkout.
LH-GSPO 80K is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
LH-GSPO 80K is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.

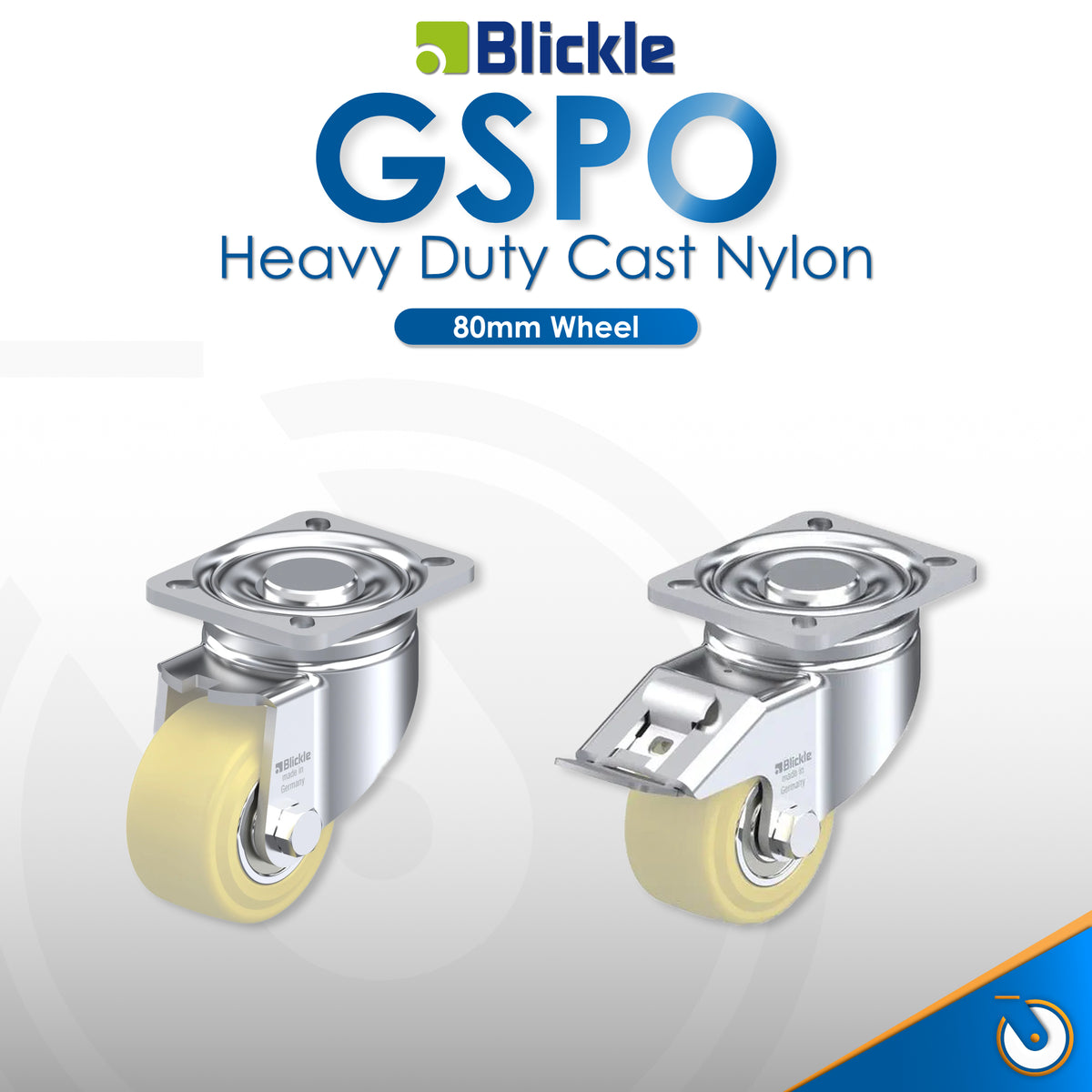

Blickle GSPO Compressed Nylon Heavy Duty Castor Series
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Underlined specification values indicate differences between product options.
Please confirm all specifications before ordering.
- SKU LH-GSPO 80K
-
Castor TypeSwivel
-
Capacity700 kg
-
Static Capacity1,750 kg
-
Swivel Radius85 mm
-
Overall Height120 mm
-
Lift Height+0 mm
- Wheel
-
Wheel DiameterØ80 mm
-
Tread Width40 mm
-
Tread MaterialCompressed Cast Nylon
-
Hardness80 Shore D
-
Temperature Range-20 to 80 °C
-
Non-Marking
- Frame
-
Frame FinishCr6-Free Zinc Plated
-
Mounting TypePlate
-

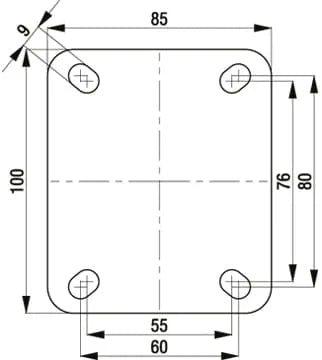

Plate Dimensions (L x W)100 x 85 mm
-
Plate Hole Centres (L x W)76-80 x 55-60 mm
-
Bolt Hole Hardware SizeM8
-
Bolt Hole DiameterØ9 mm
-
Axle TypeBolted
-
- Bearing & Bore
-
TypeBall Bearing
-
Seal TypeShielded
-
Bore TolerancePrecision
The Blickle GSPO heavy duty series is a premium German made compressed nylon castor designed for equipment that needs to carry high loads, move with minimal rolling effort and withstand demanding industrial use.
The compressed, cast nylon wheel has a hardness of 80 Shore D, providing exceptionally low rolling resistance on smooth, level floors with very good resistance to wear. The non-marking material is highly resistant to many aggressive substances and absorbs very little moisture, supporting reliable use in demanding industrial environments.
The wheel is manufactured from high quality impact resistant compressed cast nylon, while ball bearings keep movement smooth and consistent under load. Its hard running surface and high load capacity make the GSPO heavy duty series particularly well suited to machinery, production equipment, industrial transport equipment and other applications operating on strong, smooth floors capable of supporting concentrated point loads.
Blickle engineers, manufactures, and tests its castors in Germany under exceptionally tight production tolerances. The heavy duty swivel frame uses a double ball bearing swivel head, heavy fork and top plate, an extremely strong secured central kingpin and specially shaped hardened bearing seats to provide excellent resistance to shock and impact.
The GSPO heavy duty castor series is tested in accordance with DIN EN 12530, with extended test breaks used to avoid thermal overloading. Blickle's manufacturing systems are certified to DIN EN ISO 9001, ISO 14001, ISO 45001 and ISO 50001.
The GSPO heavy duty series is best suited to applications where high capacity, exceptionally low rolling resistance and industrial durability matter more than cushioning, noise reduction or floor protection. For machinery, production equipment and industrial transport applications on strong, smooth floors, it is our premium heavy duty compressed nylon castor choice.
