Technical Specifications
- -Brand -Tente
- -Castor Type- Swivel
- -Load Capacity- 120 Kg
- -Brake Type- N/A
- -Mounting Type- Plate
- -Size of Plate- 77mm x 67mm
-
-Hole Centres- 61,5/56 x 51,5/46,5 mm
-
-Hole Size- 8.5mm
- -Wheel Material- Polyurethane
- -Wheel Bearing Type- Precision Ball Bearing
- -Thread guard Fitted?- Yes
- -Frame Finish- White Polyamide
- -Overall Height- 121mm
- -Axle Type- Internal
- -Swivel Radius (inc. brake if fitted)- 90mm

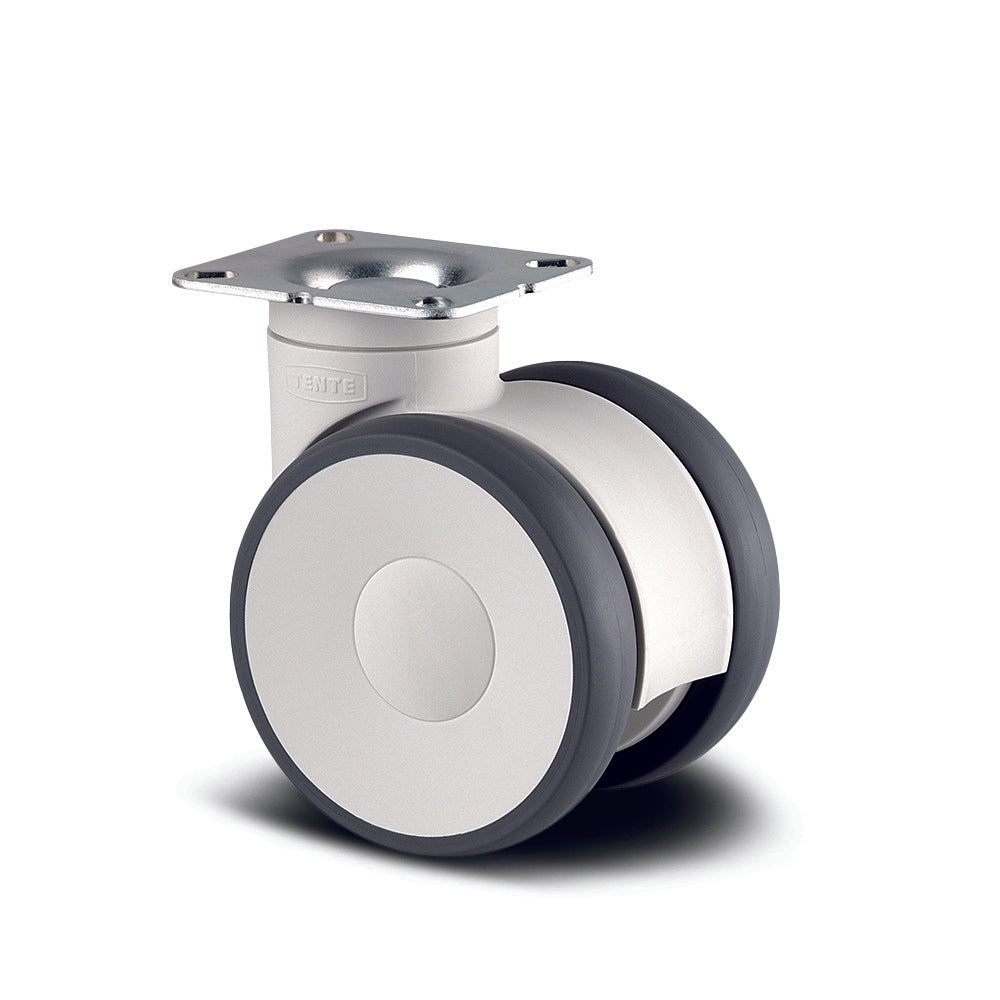

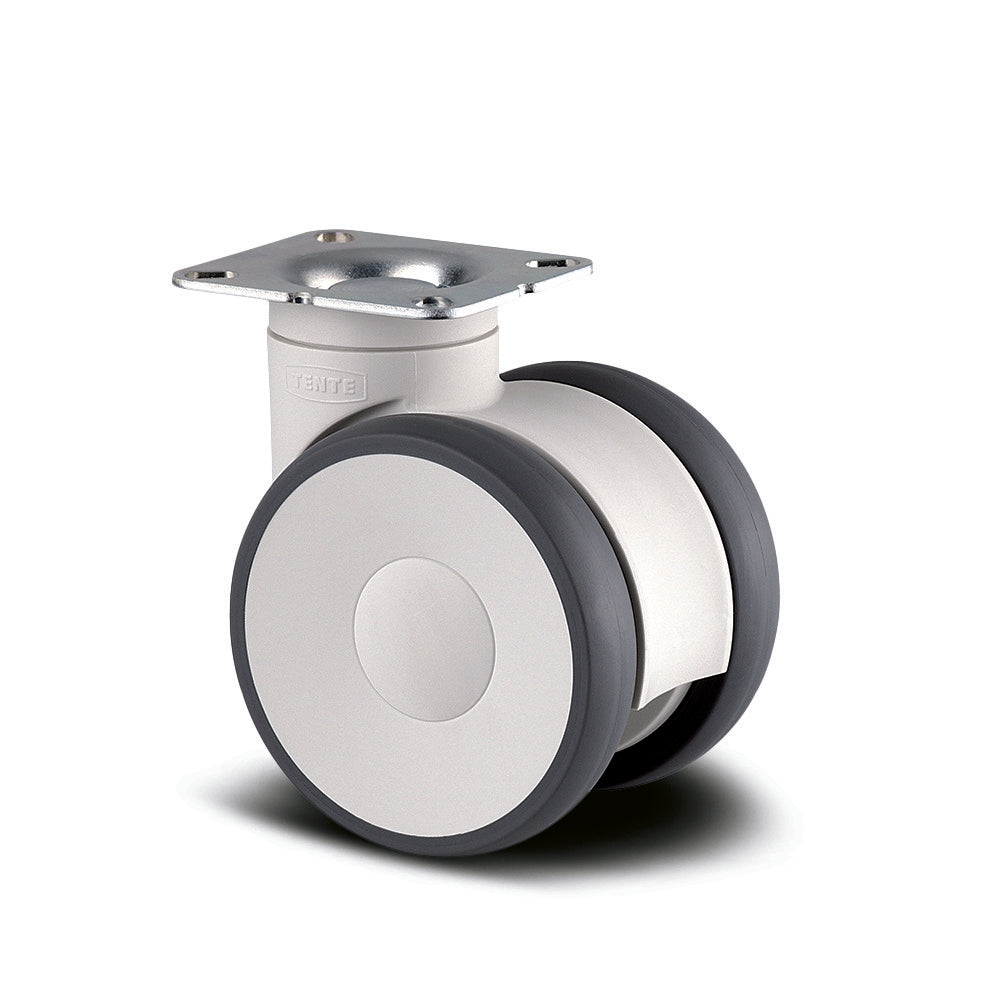

The 5940UAP100W-P50 is a robust twin-wheel swivel castor from the TENTE Linea range, offering smooth, reliable rolling and excellent manoeuvrability. It features a durable polyamide body, polyurethane tread (Shore A 92), and precision ball bearings in both the wheels and swivel head for reduced friction and long-lasting performance—even under frequent or heavy use.
With 100 mm diameter wheels, 20 mm tread width, and a castor width of 82 mm, this twin-wheel castor supports a 120 kg dynamic load and 240 kg static load, operating reliably between –10 °C and +40 °C. The castor includes a plate mount fitting and has an overall height of 121mm.
Designed to EN 12530 standards, the 5940UAP100W-P50 is ideal for medical equipment, laboratory furniture, or service trolleys, combining strength, quiet operation, and long-term durability.
