Technical Specifications
- -Material- Ball Jointed Bolt-Down Stainless Steel
- -Size- 60mm x M20
- -Base Diameter- 60mm
- -Thread Length- 250mm
- -Base+Knuckle Height- 51mm
- -Base Only Height- 23mm
- -Thread Size- M20
- -Thread Type- Stainless Steel
- -Pivot Angle- 40 Deg
- -Load Rating - Vertical- 1000 Kg
- -Bolt Down Hole Centres- 80mm
- -Bolt Down Hole Diameter- 11mm

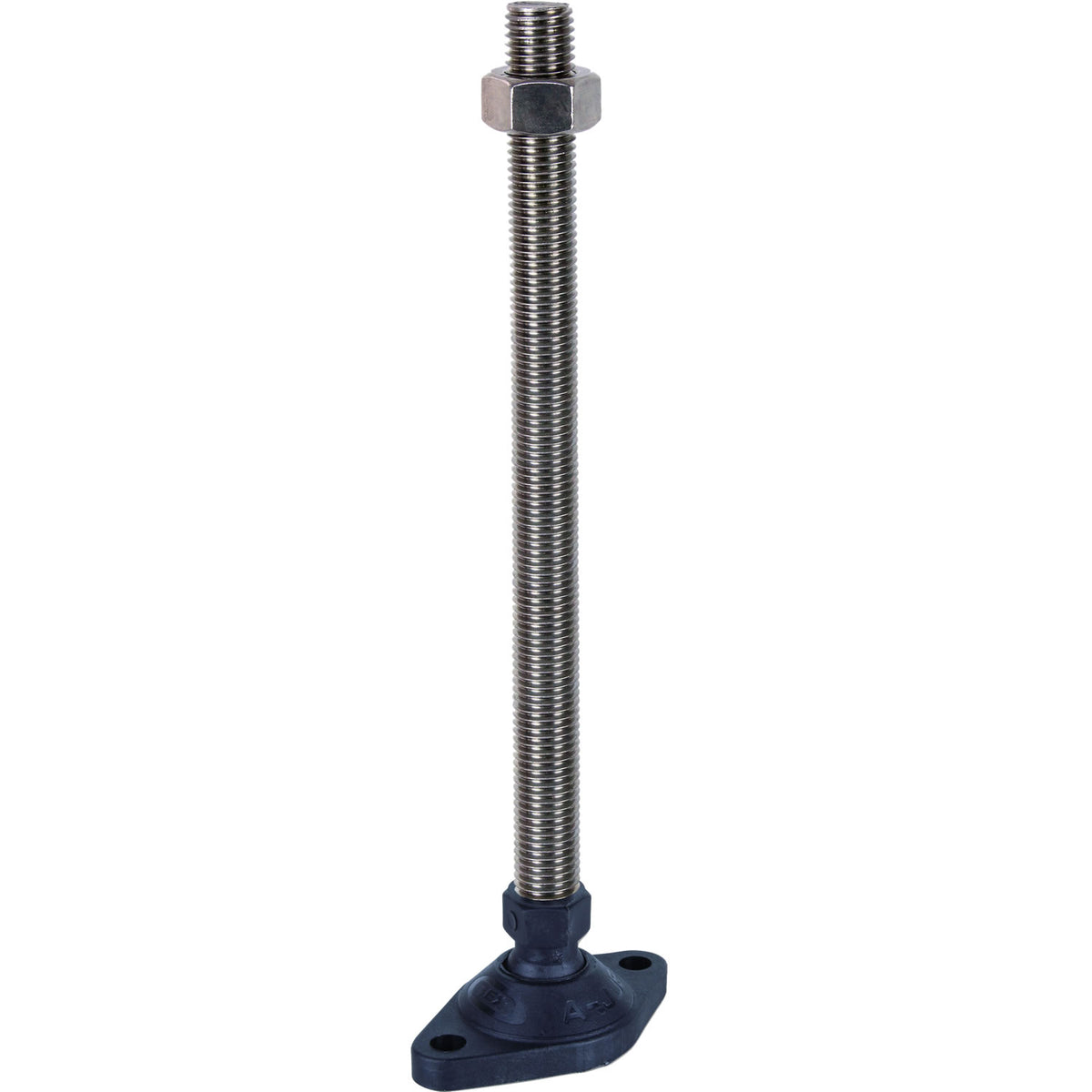

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.
