Technical Specifications
- -Material- Ball Jointed Bolt-Down Mild Steel
- -Size- 40mm x M8
- -Base Diameter- 40mm
- -Thread Length- 60mm
- -Base+Knuckle Height- 33mm
- -Base Only Height- 20mm
- -Thread Size- M8
- -Thread Type- Zinc Plated
- -Pivot Angle- 40 Deg
- -Load Rating - Vertical- 350 Kg
- -Bolt Down Hole Diameter- 9mm

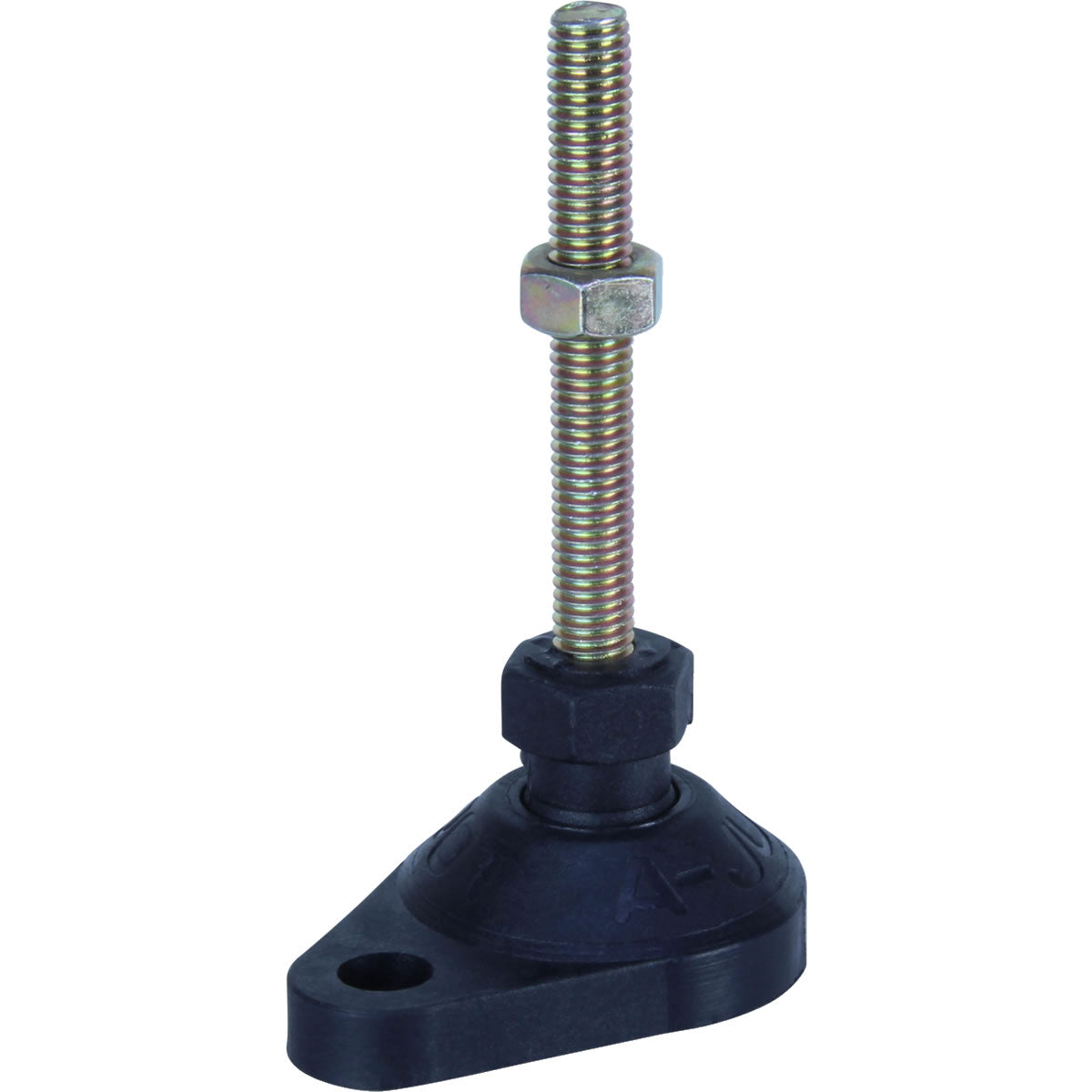

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.
