1230V 480 kg 120mm V Groove

$85.80
GST included.
Shipping calculated at checkout.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

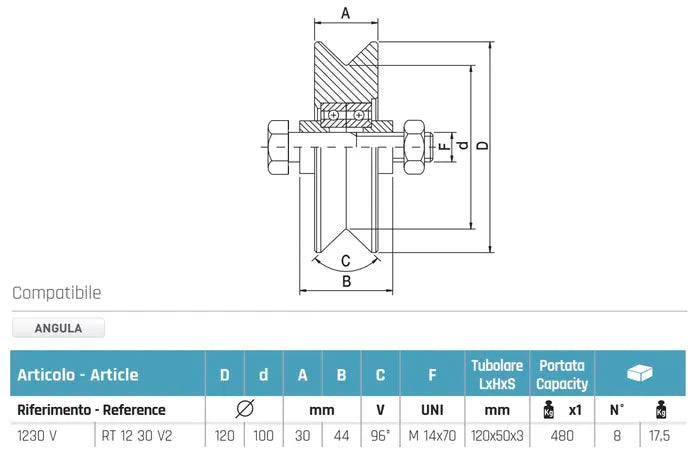

Technical Specifications.

  • Groove Type: V Groove
  • Load Capacity: 480 kg
  • Wheel Diameter: 120mm
  • Wheel Material: Steel
  • Finish: Zinc Plated
  • Tyre Material: Steel
  • Tread Width: 30mm
  • Groove Width: 22mm
  • Groove Depth: 9mm
  • Hub Length (Unsleeved): 24mm
  • Hub Length (Sleeved): 44mm
  • Bore Diameter (Unsleeved): 17mm
  • Sleeved Bore Diameter Options: 14mm
  • Sleeve Type: Top Hat Pair
  • Bearing Type: Ball Bearing
  • Axle Bolt/Nut Supplied: ? M14 x 70mm & Nut

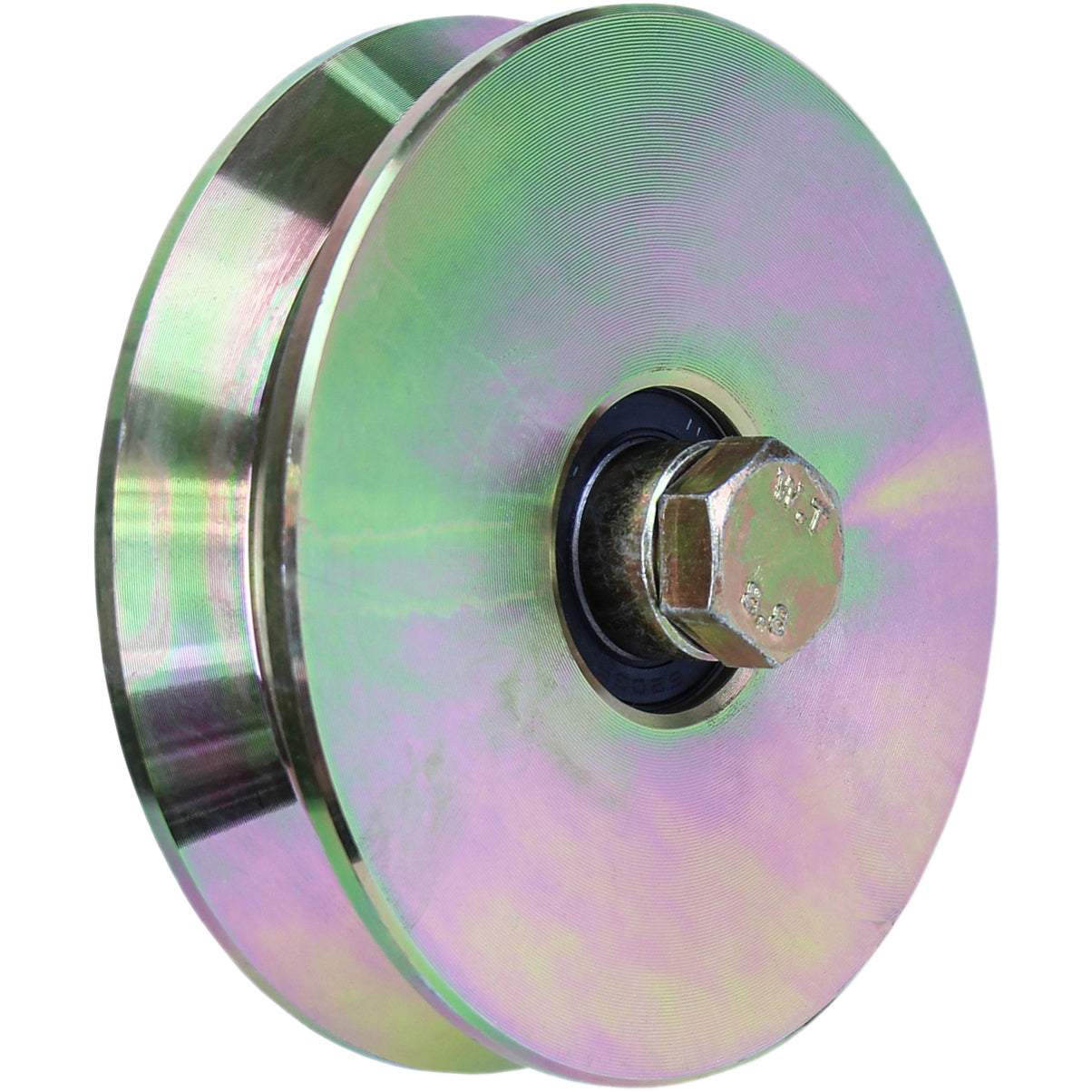

Machined steel "V" groove wheel, for use with folded angle tracks.

  • Maximum Capacity
    480 kg
  • Wheel Diameter
    120 mm
  • Tread Material
    Steel
  • Tread/Wheel Width
    30 mm
  • Bearing Type
    Ball Bearing
  • Sleeve/Bush Type
    Top Hat Pair
  • Sleeved Bore Diameter
    14 mm
  • Unsleeved Bore Diameter
    17
  • Sleeved Hub Length
    44 mm
  • Unsleeved Hub Length
    24 mm
  • Product Range
    Sliding Gate Wheels

Enquire about the 1230V 480 kg 120mm V Groove
