Technical Specifications
- -Brand - Blickle Germany
- -Castor Type- Swivel
- -Load Capacity- 150 Kg
- -Brake Type- N/A

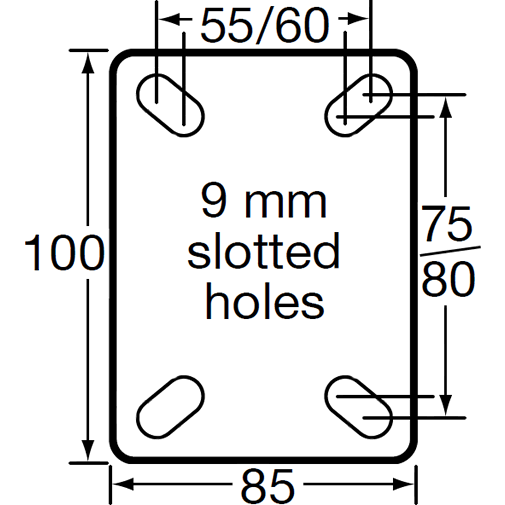

- -Mounting Type- Plate
- -Wheel Material- Blue Rubber on Nylon
- -Wheel Bearing Type- Ball Bearing
- -Thread guard Fitted?- Yes
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 100mm x 35mm
- -Overall Height- 126mm
- -Axle Type- Bolted
- -Swivel Radius (inc. brake if fitted)- 83mm
- Download 3D Model

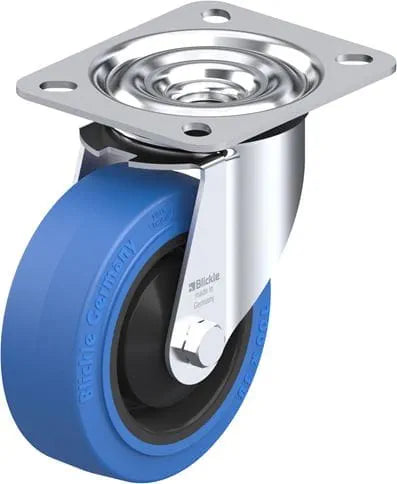

The POEV wheel series consist of a “Blickle EasyRoll” elastic solid rubber tyre vulcanised onto a black, impact-resistant nylon wheel centre. The smooth-rolling rubber compound provides lower rolling resistance and higher load capacities than a standard solid rubber tyre. This series also provides a high level of operational comfort, good floor preservation and low-noise operation. Wheels and castors from the POEV series are all-rounders capable of handling almost all applications and industries. So-called “blue wheels” with a blue tread are frequently used for stage equipment and in the events industry
Bracket: LE series
pressed steel, zinc-plated, blue-passivated, Cr6-free
double ball bearing in the swivel head
swivel head seal
minimum swivel head play and smooth rolling characteristic and increased
service life due to the special dynamic Blickle riveting process
Wheel: POEV series
tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality,
hardness 65 Shore A, color blue, non-marking
wheel centre: high-quality nylon 6, impact resistant
Other features:
synthetic thread guard
high chemical resistance to many aggressive substances, except oils
operating temperature: -20 °C to +80 °C, temporarily up to +100 °C
