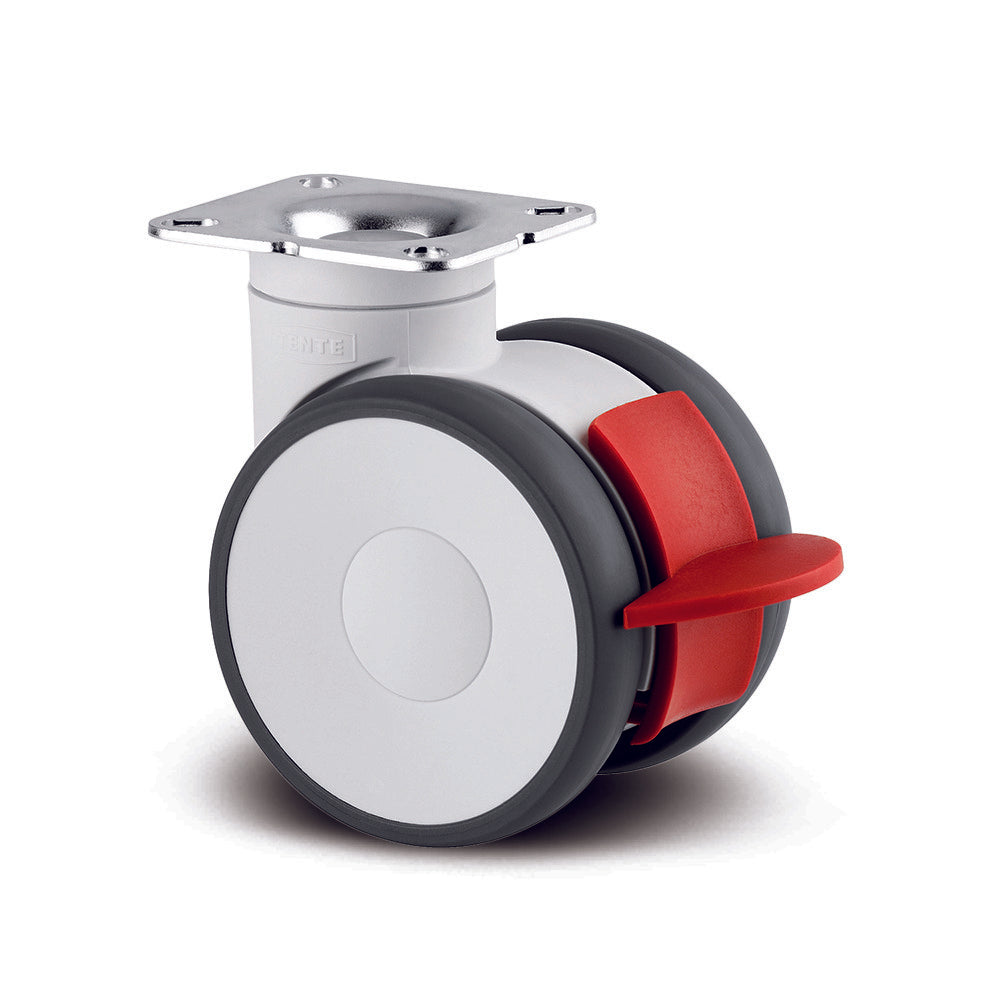

5947UAP100W-PRB - 120 Kg Swivel/Brake Plate 100mm Twin Wheel Polyurethane

Product Description

Technical Specifications

• Brand: Tente
• Castor Type: Swivel
• Load Capacity: 120 Kg
• Brake Type: Total Brake
• Mounting Type: Plate
• Size Of Plate-: 77mm x 67mm

• -hole Centres-: 61,5/56 x 51,5/46,5 mm
• -hole Size-: 8.5mm
• Wheel Material: Polyurethane
• Wheel Bearing Type: Precision Ball Bearing
• Thread Guard Fitted?: Yes
• Frame Finish: White Polyamide

• Overall Height: 121mm
• Axle Type: Internal
• Swivel Radius (Inc. Brake If Fitted): 108mm

The 5947UAP100W-PRB is a robust twin-wheel swivel/brake castor from the TENTE Linea range, offering smooth, reliable rolling and excellent manoeuvrability. It features a durable polyamide body, polyurethane tread (Shore A 92), and precision ball bearings in both the wheels and swivel head for reduced friction and long-lasting performance—even under frequent or heavy use.

With 100 mm diameter wheels, 20 mm tread width, and a castor width of 82 mm, this twin-wheel castor supports a 120 kg dynamic load and 240 kg static load, operating reliably between –10 °C and +40 °C. The castor includes a plate mount fitting and has an overall height of 121 mm.

Designed to EN 12530 standards, the 5940UAP100W-P50 is ideal for medical equipment, laboratory furniture, or service trolleys, combining strength, quiet operation, and long-term durability.
