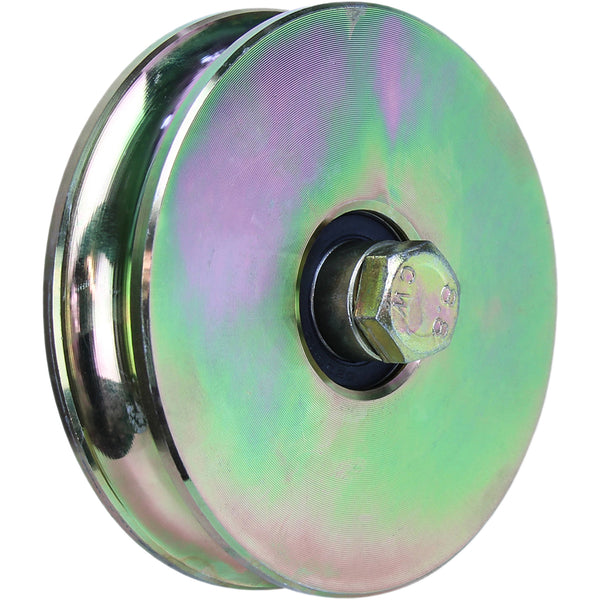

1230O 480 Kg 120mm 20mm Round Groove

Description

Technical Specifications.

  • -Groove Type- 20mm Round Groove
  • -Load Capacity- 480 Kg
  • -Wheel Diameter- 120mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 30mm
  • -Groove Width- 21mm
  • -Groove Depth- 9mm
  • -Hub Length (unsleeved)- 24mm
  • -Hub Length (sleeved)- 44mm
  • -Bore Diameter (unsleeved)- 17mm
  • -Sleeved Bore Diameter Options- 14mm
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearing
  • -Axle Bolt/Nut Supplied? M14 x 70mm & Nut

Machined steel "O" round groove wheels, for use with sliding gate floor track or 20mm bar.

$107.25 (Incl. GST)

Make an enquiry about this product: 1230O 480 Kg 120mm 20mm Round Groove
