1030PCV 350 Kg 100mm V Groove

$80.19
GST included.
Shipping calculated at checkout.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

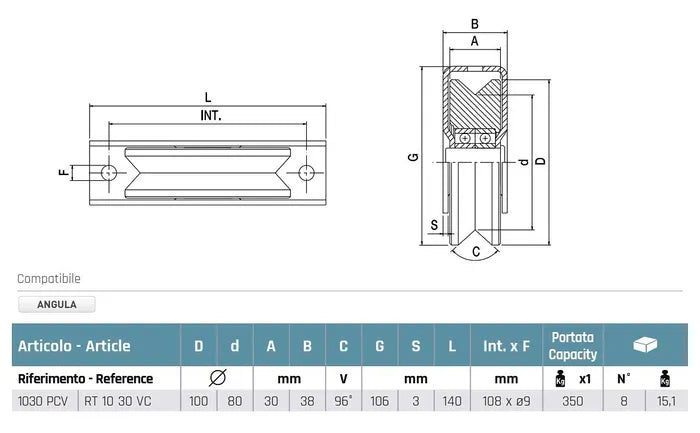

Technical Specifications.

  • Groove Type: V Groove
  • Load Capacity: 350 Kg
  • Wheel Diameter: 100mm
  • Wheel Material: Steel
  • Finish: Zinc Plated
  • Tyre Material: Steel
  • Tread Width: 30mm
  • Groove Width: 22mm
  • Groove Depth: 9mm
  • Bearing Type: Ball Bearing
  • Bracket Width: 38mm
  • Bracket Length: 140mm
  • Mounting Hole Centres: 108mm
  • Mounting Hole Size: 9mm
  • Overall Height: 106mm

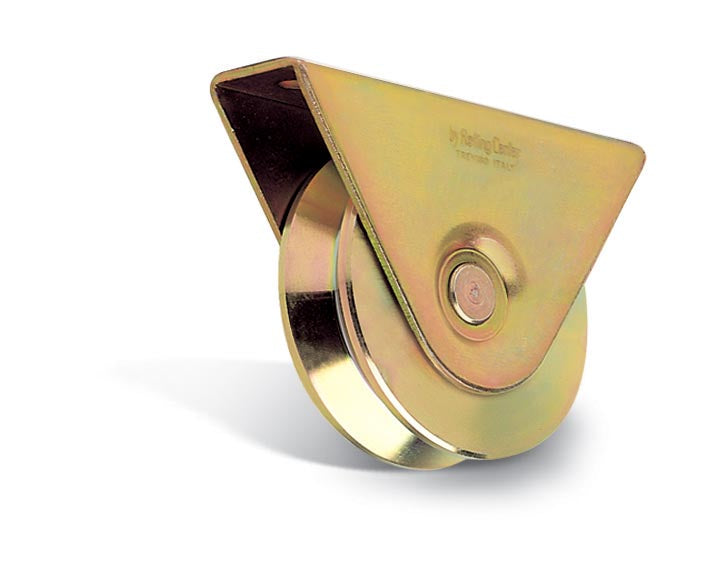

Machined steel "V" groove wheel fitted to bracket. Suitable for running on folded angle tracks.

  • Wheel Diameter
    100 mm
  • Load Capacity
    350 kg

Enquire about the 1030PCV 350 Kg 100mm V Groove
