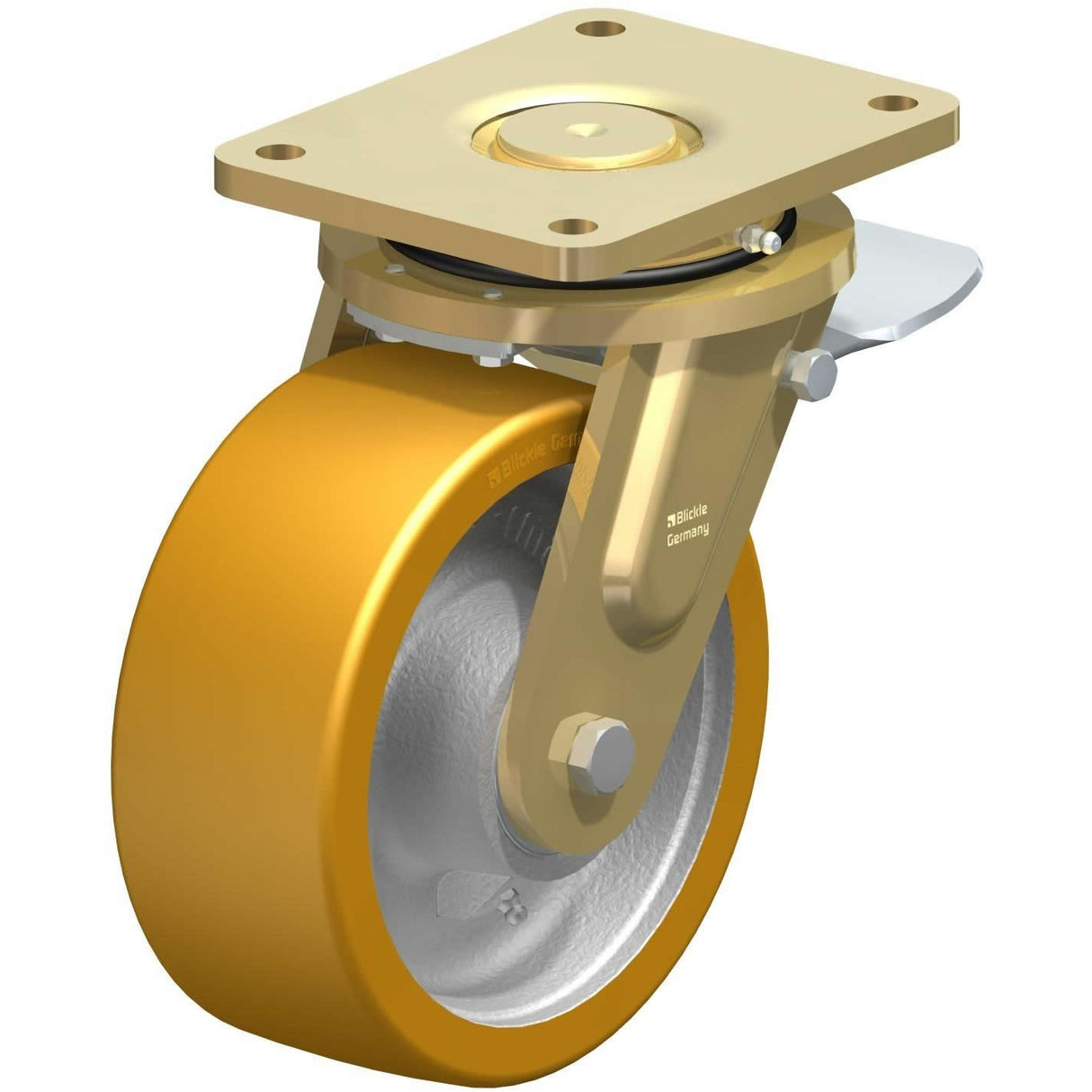

LS-GTH 202K-ST 1600 kg Swivel Plate 200mm Polyurethane Total Brake

$616.00
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours
Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 1600 kg
  • Brake Type: Total Brake

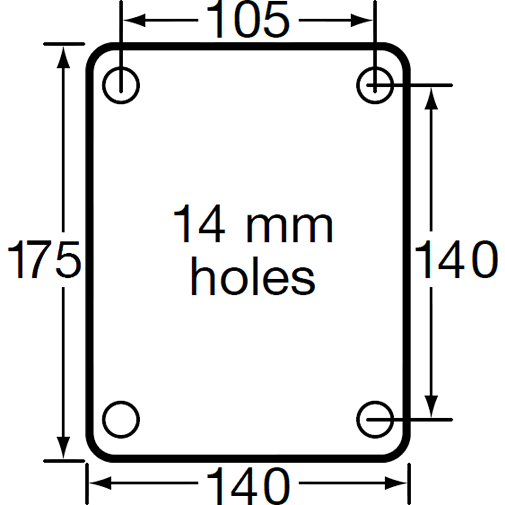

  • Mounting Type: Plate
  • Wheel Material: P/U on Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 200mm x 80mm
  • Overall Height: 255mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 165mm

Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications. Polyurethane tyre will protect floor surface and reduce noise.

Related Options...

  • Maximum Capacity
    1,600 kg
  • Overall Height
    255 mm
  • Wheel Diameter
    200 mm
  • Tread Width
    80 mm
  • Tread Material
    Polyurethane
  • Wheel Material
    Cast Iron
  • Castor Type
    Swivel Total Brake
  • Mounting Type
    Mounting Plate
  • Frame Finish
    Zinc
  • Bearing Type
    Ball Bearing
  • Axle Type
    Bolted
