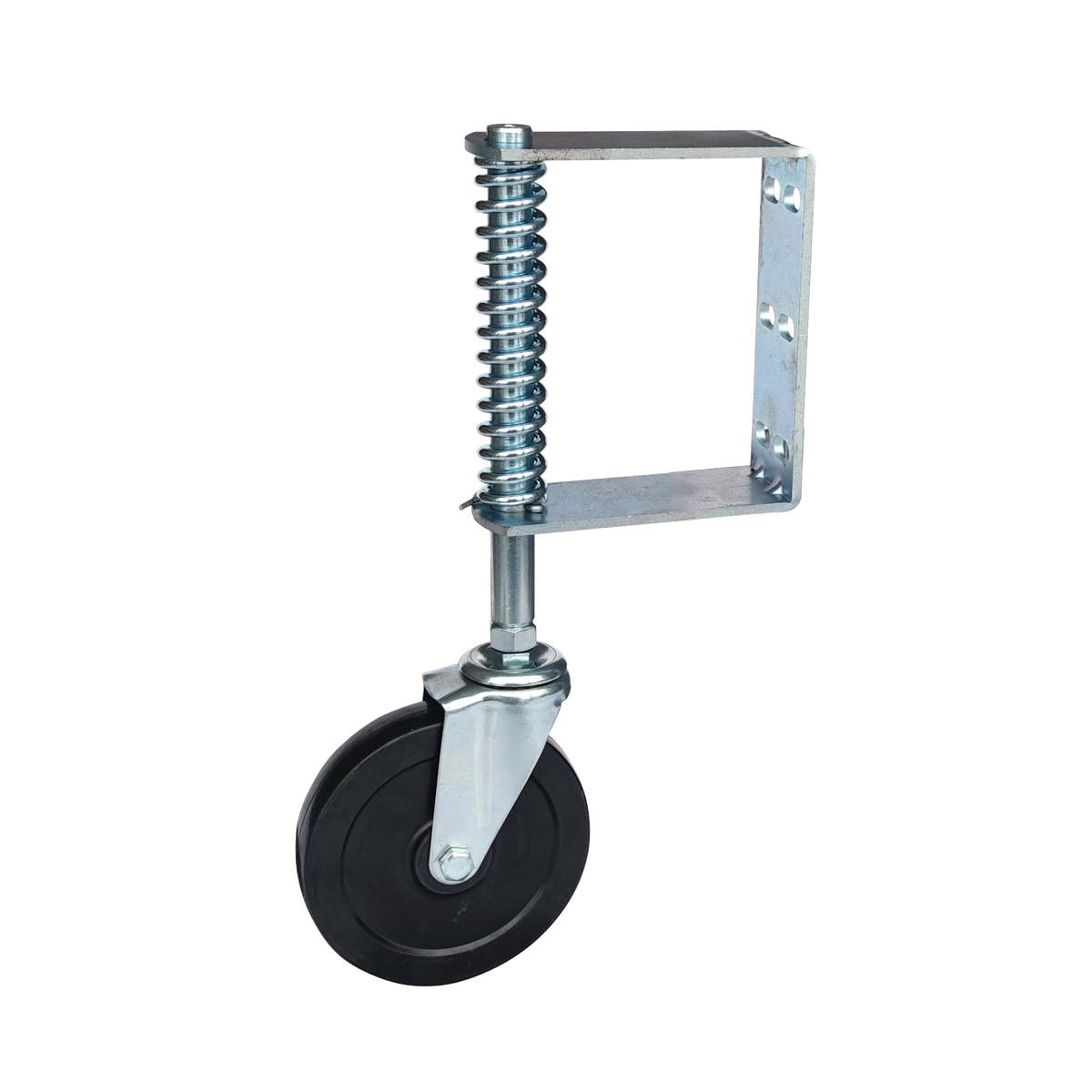

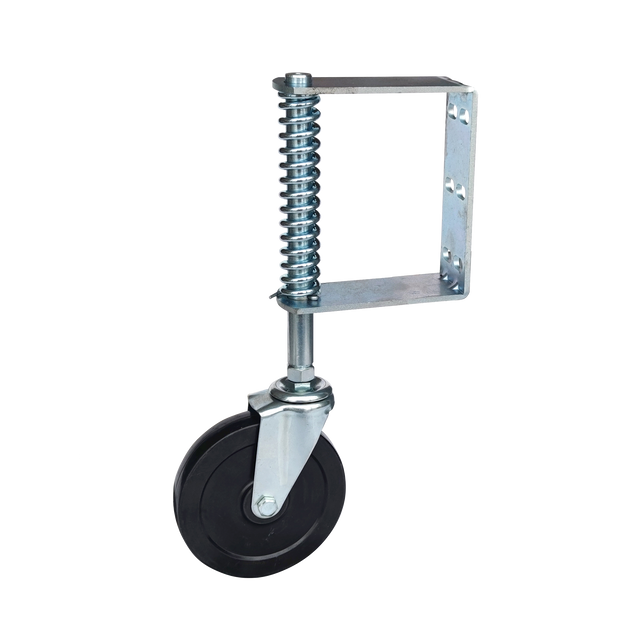

GATE CASTOR HD SPRING LOADED - 100 kg 125mm Heavy-Duty Spring Loaded Gate Castor
Bundle & Save
Regular price
$40.00
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
GATE CASTOR HD SPRING LOADED is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Contact us
for discounts on trade and large quantity orders!
GATE CASTOR HD SPRING LOADED is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU GATE CASTOR HD SPRING LOADED
-
Capacity100 kg
-
Swivel Radius93 mm
-
Overall Height357 mm
- Wheel
-
Wheel DiameterØ125 mm
-
Tread Width25 mm
- Frame
-
Mounting TypePlate
-
Plate Dimensions (L x W)146 x 50 mm
-
Plate Hole Centres (L x W)52 x 25 mm
-
Bolt Hole DiameterØ9.5 mm
-
Pintle Thread1/2" UNC
-
Castor Specifications
- Wheel Material: Nylon Wheel, Zinc Plated Frame
- Wheel Diameter: 125mm
-
Swivel Radius: 93mm
- Castor Mounting Type: Male 1/2" UNC Pintle
Bracket Specifications
- Overall Height (Castor + Bracket): 357mm
-
Bracket Offset: 115mm
-
Bracket Mounting Holes:
- 6x slotted holes, 3 rows of 2
- 9.5(D) x 18(W)mm slots
- Centrally spaced, 25(W) x 52(H) apart (+52mm)
- Bracket Material: 5mm Zinc Plated Steel
- Load Capacity: 100 kg
-
Spring Travel: 60mm
Spring loaded swinging gate support castor, Heavy duty model, suitable for medium to large gates needing up to 60mm of spring travel. Spring loaded design works well over uneven ground or sloping surfaces. Castor is designed for mounting to the face of the gate.
