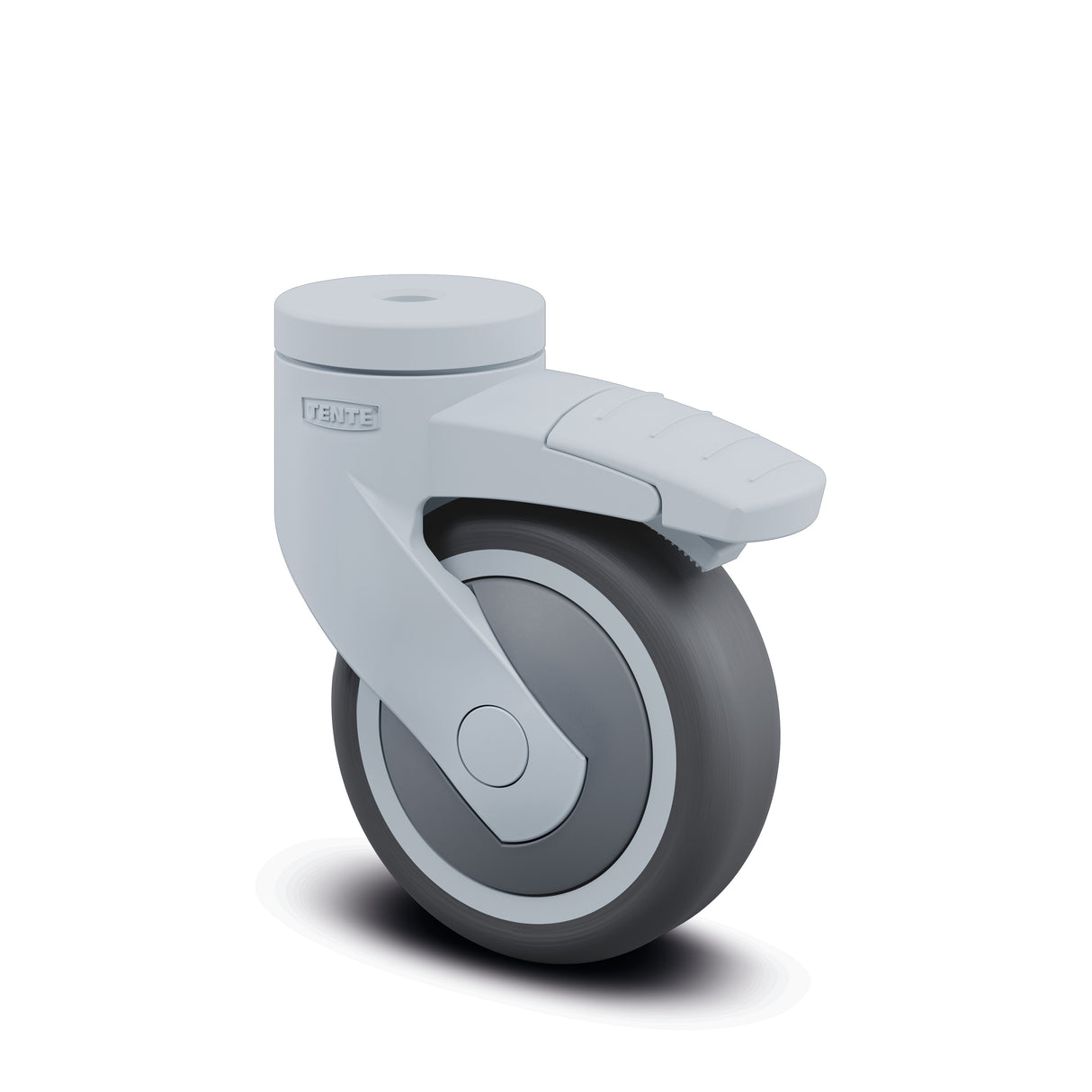

5225PJP075L51-G<span>75 Kg Bolt Hole Wheel Brake 75mm TPE</span>

Product Description

Technical Specifications

• -Brand -Tente
• -Castor Type- Swivel
• -Load Capacity- 75 Kg
• -Brake Type- Wheel Brake
• -Mounting Type- Various
• -Wheel Material- Grey TPE
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Polyamide

• -Overall Heights-
  • No Pintle -103mm
  • M8 x 25mm -109mm
  • M10 x 25mm -109mm
  • M10 X 50mm -109mm

  • Plate -113mm
  • C11 Circlip -107.5mm

• -Axle Type- Fixed
• -Swivel Radius (inc. brake if fitted)- 64.5mm

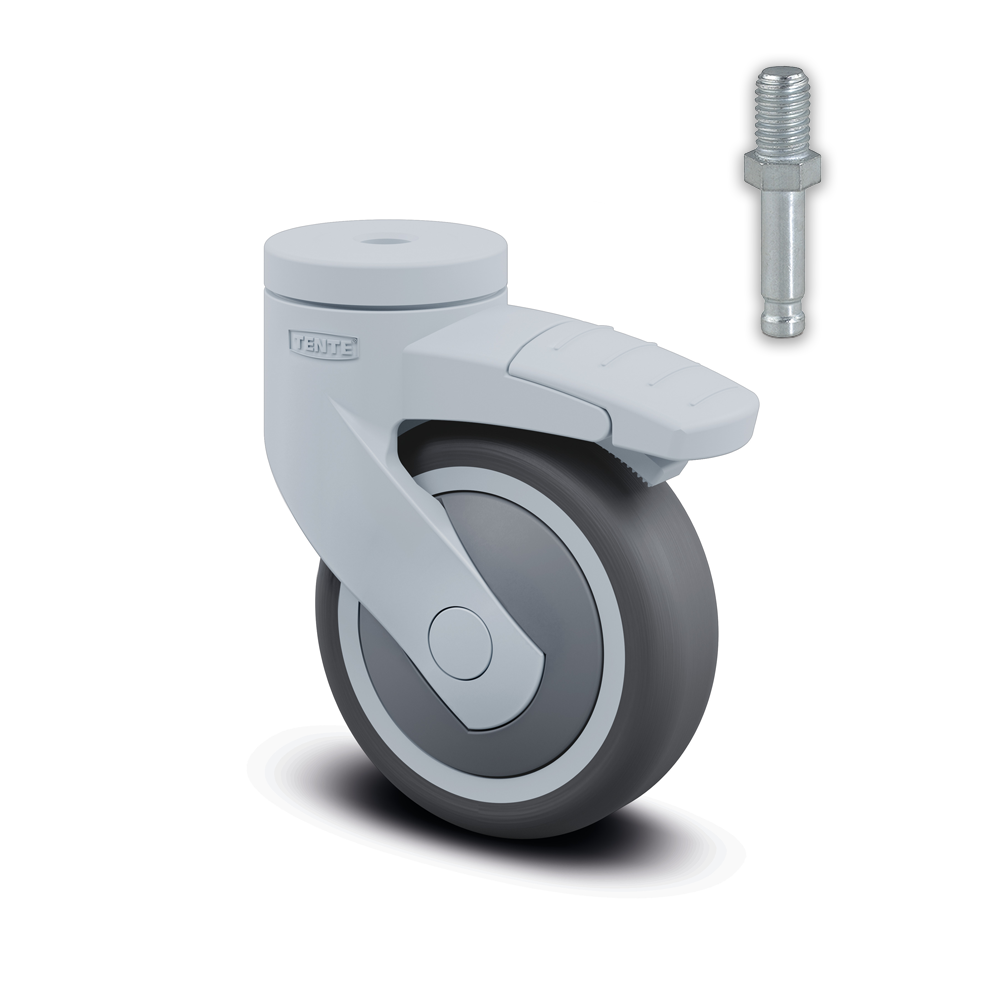

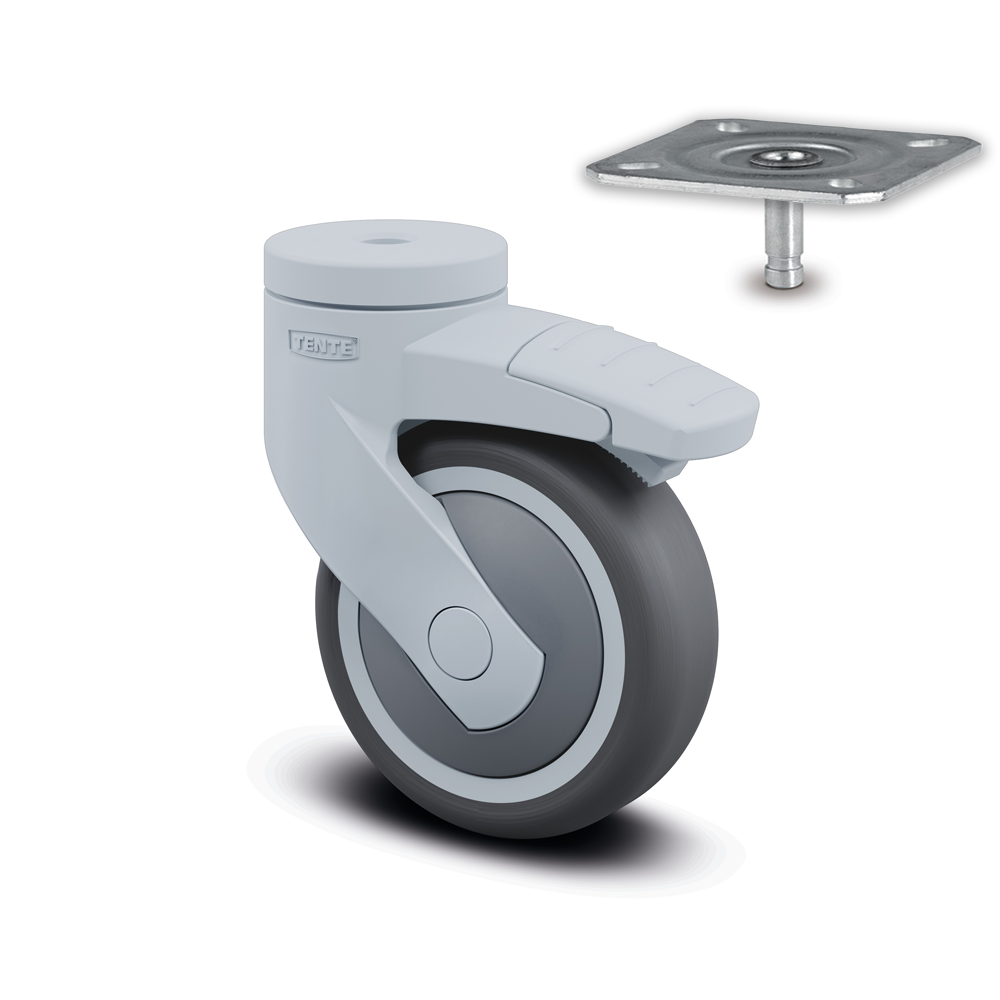

TENTE 5225PJP075L51-G – 75mm Levina Light Swivel Castor

The TENTE 5225PJP075L51-G is a premium swivel castor from the Levina Light series, designed for light-duty applications where smooth, quiet movement and floor protection are essential. Its Supratech wheel and glass-filled polyamide housing absorb shocks and reduce noise, making it ideal for medical equipment, trolleys, and other quiet environments.

The grey synthetic thermoplastic rubber (TENTEprene) tread is non-marking, preserving sensitive floors, while the swivel head design provides easy manoeuvrability without bearings. With a wheel diameter of 75 mm, wheel width of 25 mm, and a dynamic load capacity of 75 kg (static 150 kg), this castor delivers reliable, long-lasting performance in demanding light-duty settings.

Perfect for hospitals, clinics, laboratories, and other spaces requiring silent operation, this castor combines functionality, durability, and subtle performance.
