5220PJP075L51-G 75 Kg Bolt Hole 75mm TPE

Product Description

Technical Specifications

• Brand: Tente
• Castor Type: Swivel
• Load Capacity: 75 Kg
• Brake Type: N/A
• Mounting Type: Various
• Wheel Material: Grey TPE
• Wheel Bearing Type: Ball Bearing
• Thread Guard Fitted?: Yes
• Frame Finish: Polyamide

• Overall Heights:
  • No Pintle -103mm
  • M8 X 25mm: 109mm

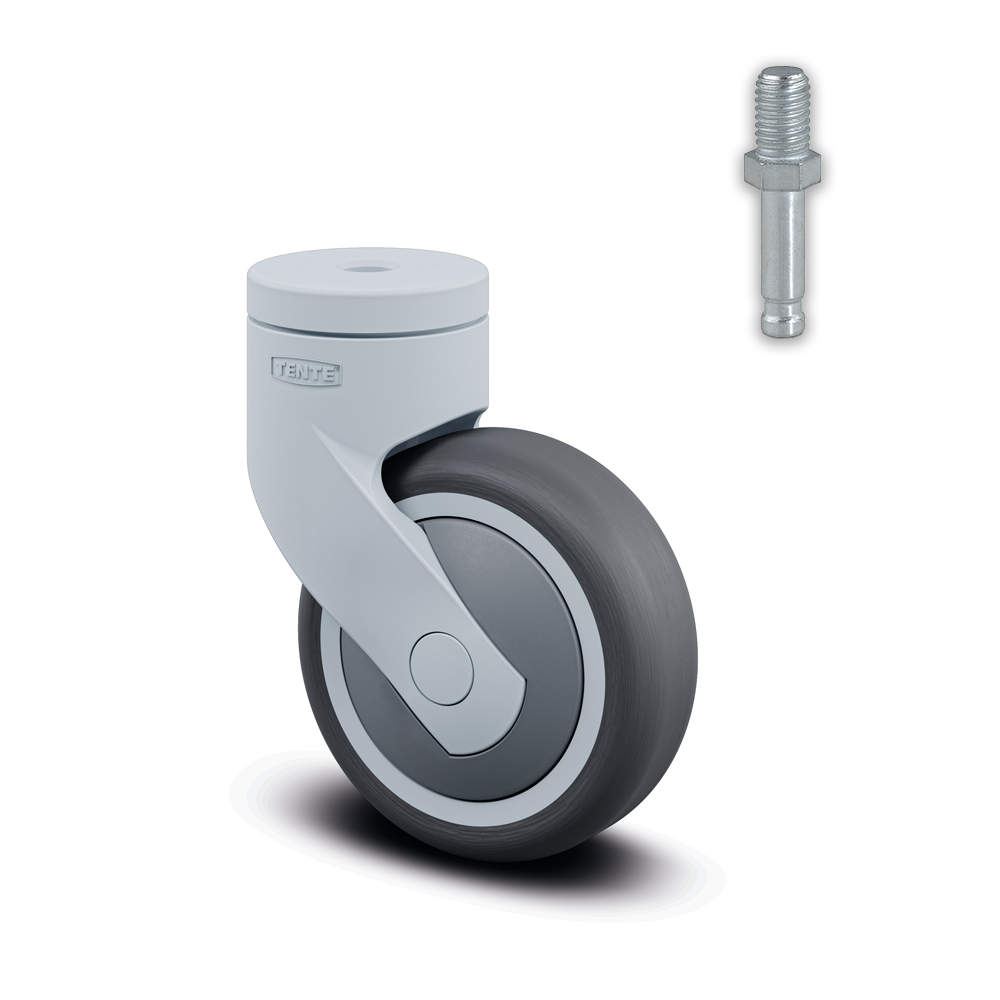

  • M10 X 25mm: 109mm

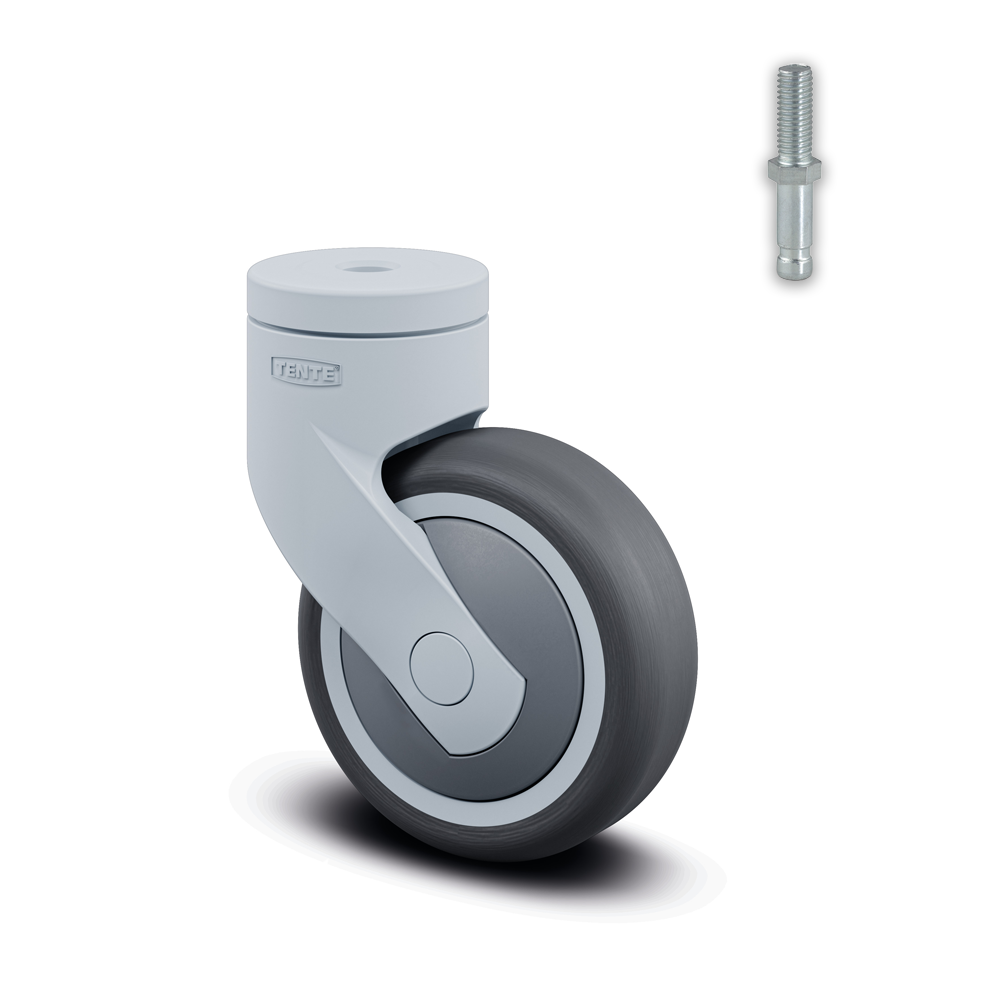

  • M10 X 50mm: 109mm

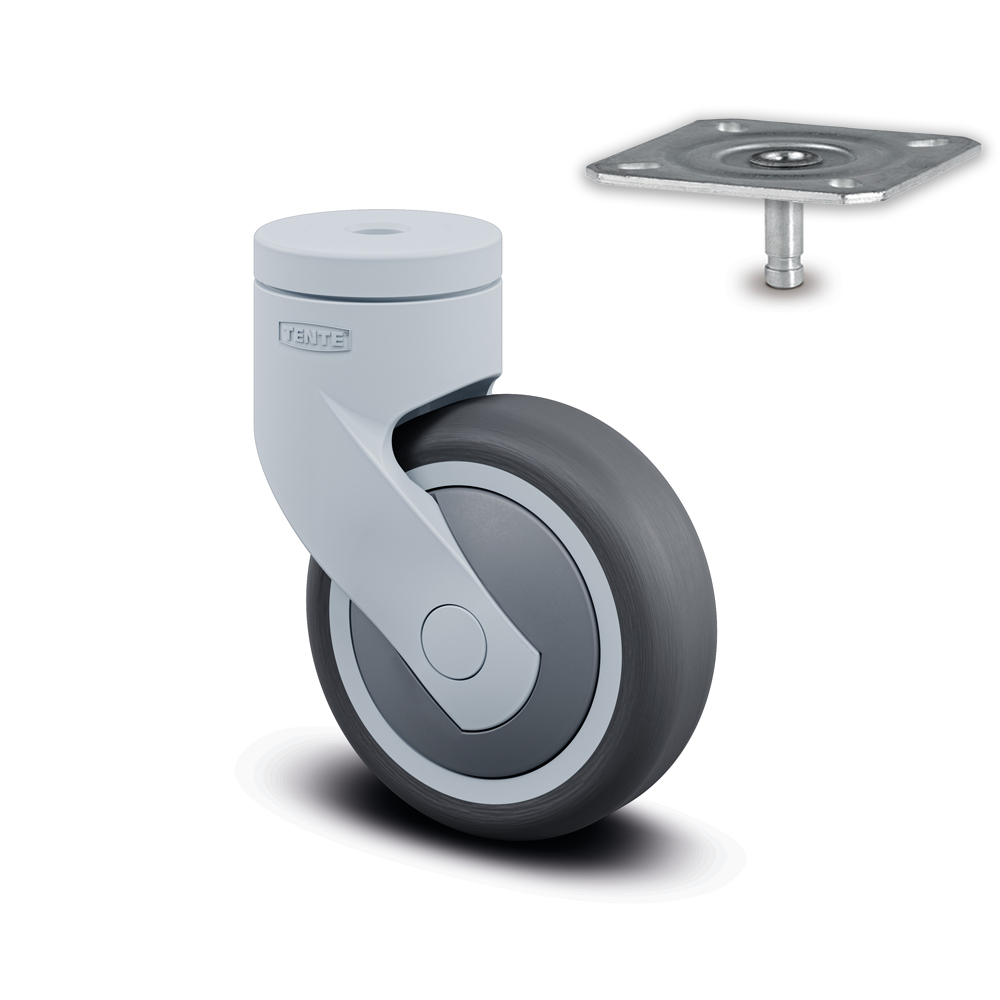

  • Plate: 113mm
  • C11 Circlip: 107.5mm

• Axle Type: Fixed
• Swivel Radius (Inc. Brake If Fitted): 64.5mm

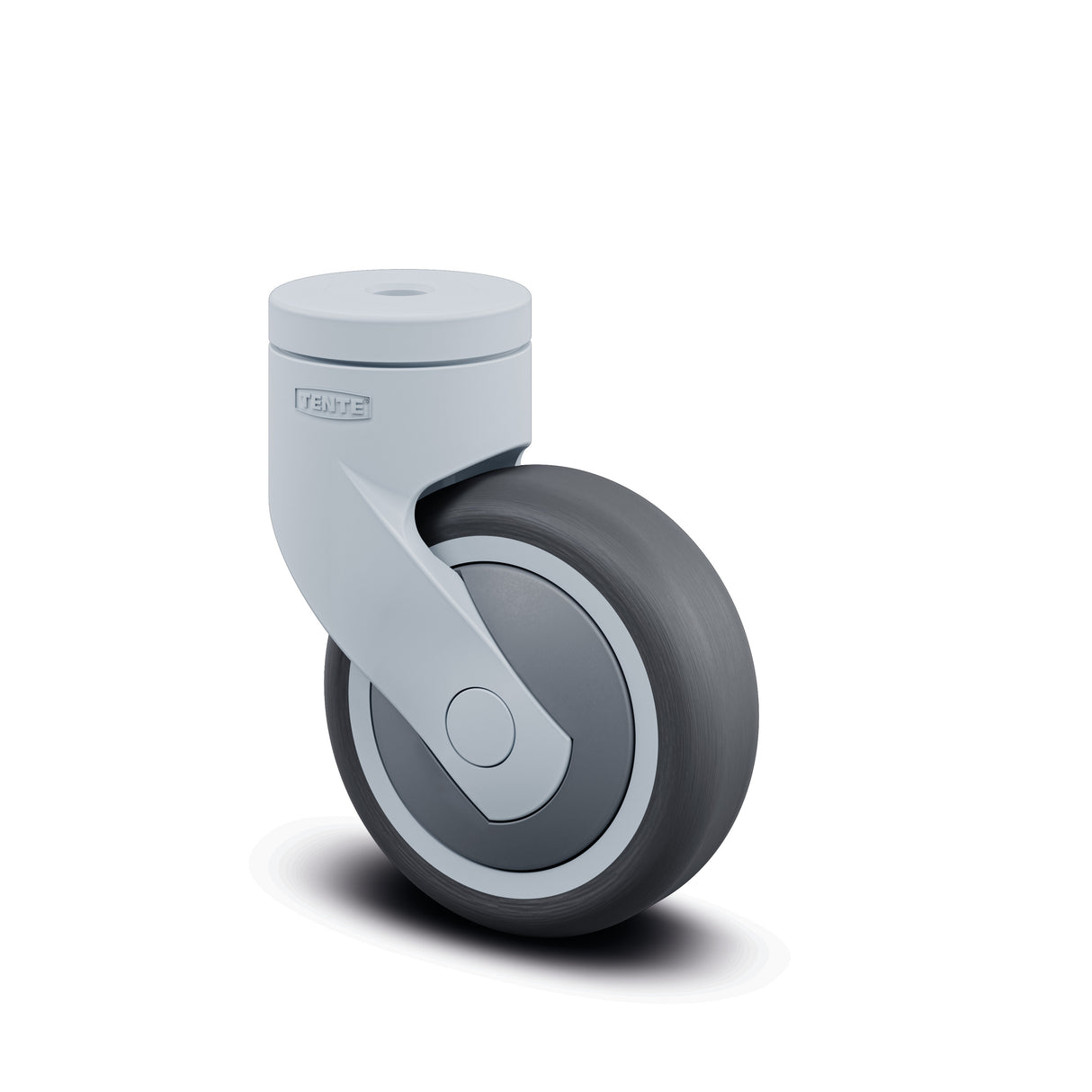

TENTE 5220PJP075L51-G – 75mm Levina Light Swivel Castor

The TENTE 5220PJP075L51-G is a premium swivel castor from the Levina Light series, designed for light-duty applications where smooth, quiet movement and floor protection are essential. Its Supratech wheel and glass-filled polyamide housing absorb shocks and reduce noise, making it ideal for medical equipment, trolleys, and other quiet environments.

The grey synthetic thermoplastic rubber (TENTEprene) tread is non-marking, preserving sensitive floors, while the swivel head design provides easy manoeuvrability without bearings. With a wheel diameter of 75 mm, wheel width of 25 mm, and a dynamic load capacity of 75 kg (static 150 kg), this castor delivers reliable, long-lasting performance in demanding light-duty settings.

Perfect for hospitals, clinics, laboratories, and other spaces requiring silent operation, this castor combines functionality, durability, and subtle performance.
