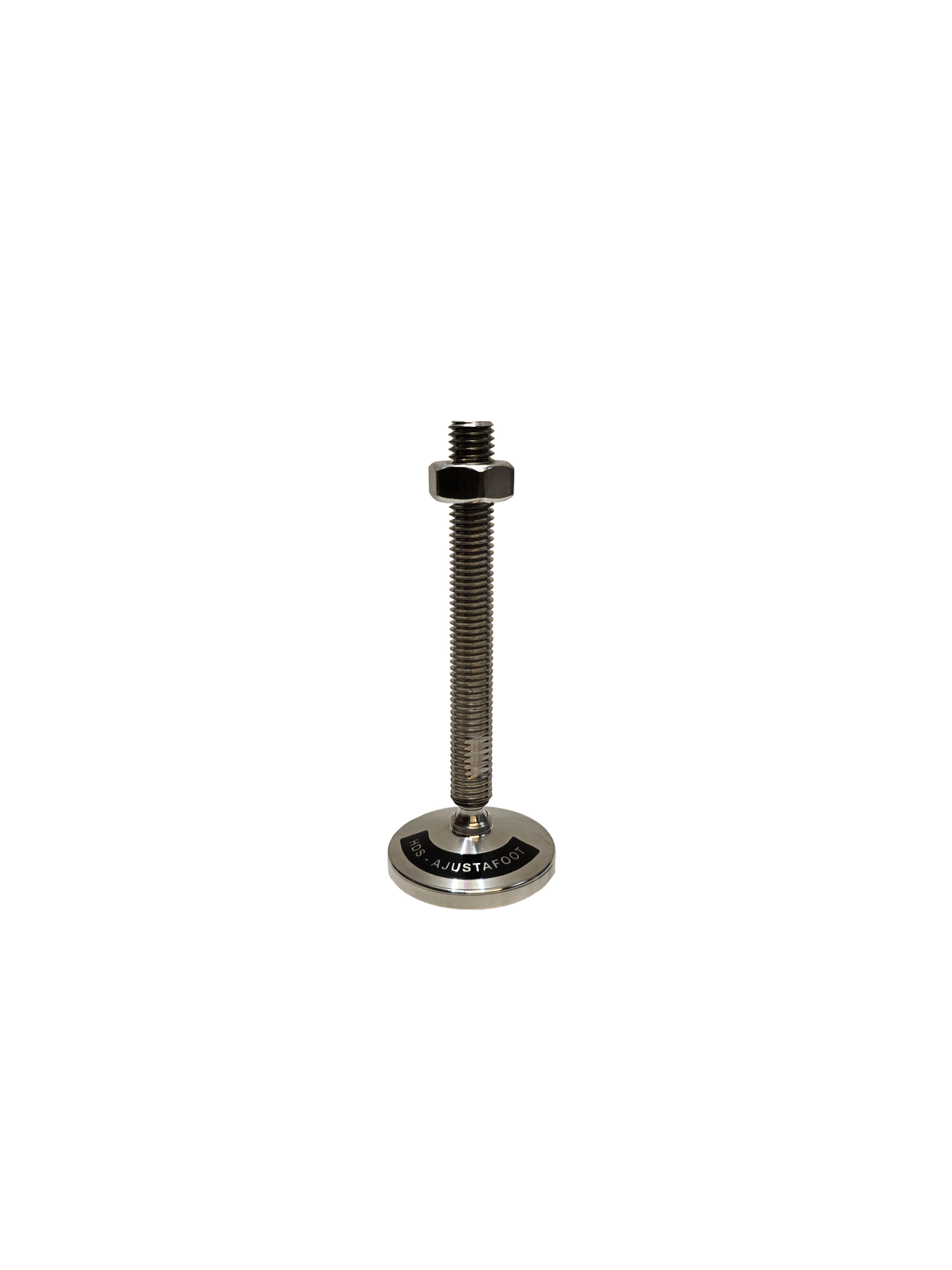

HDS40/M10/80 - 700kg 80mm x M10 Stainless Steel Levelling Feet
Shipping calculated at checkout.
Data Sheet PDF
HDS40/M10/80 - 700kg 80mm x M10 Stainless Steel Levelling Feet is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
HDS40/M10/80 - 700kg 80mm x M10 Stainless Steel Levelling Feet is backordered and will ship as soon as it is back in stock.
-
Capacity700 kg
Technical Specifications
- Material: 100% 304 Stainless Steel (ball jointed)
- Size: 80mm x M10
- Base Diameter: 40mm
- Thread Length: 80mm
- Base Only Height: 15mm
- Thread Size: M10
- Thread Type: Stainless Steel
- Pivot Angle: 55°
- Load Rating (Vertical): 700kg
This extra heavy-duty adjustable levelling foot is designed for high-load applications such as heavy machinery and industrial equipment. Manufactured entirely from 304 grade stainless steel—including the base, stud, knuckle, and locknut—it is ideal for use in environments with high hygiene standards, including food preparation areas, locations exposed to corrosive substances, and areas with potential exposure to hazardous chemicals.
The ball-jointed design allows for a 55° pivot angle to accommodate uneven surfaces, while the non-slip insert in the 40mm diameter base provides enhanced grip and vibration resistance. With a 700kg vertical load capacity, this foot offers exceptional stability, strength, and resistance to corrosion.
Additional sizes may be supplied upon request.
