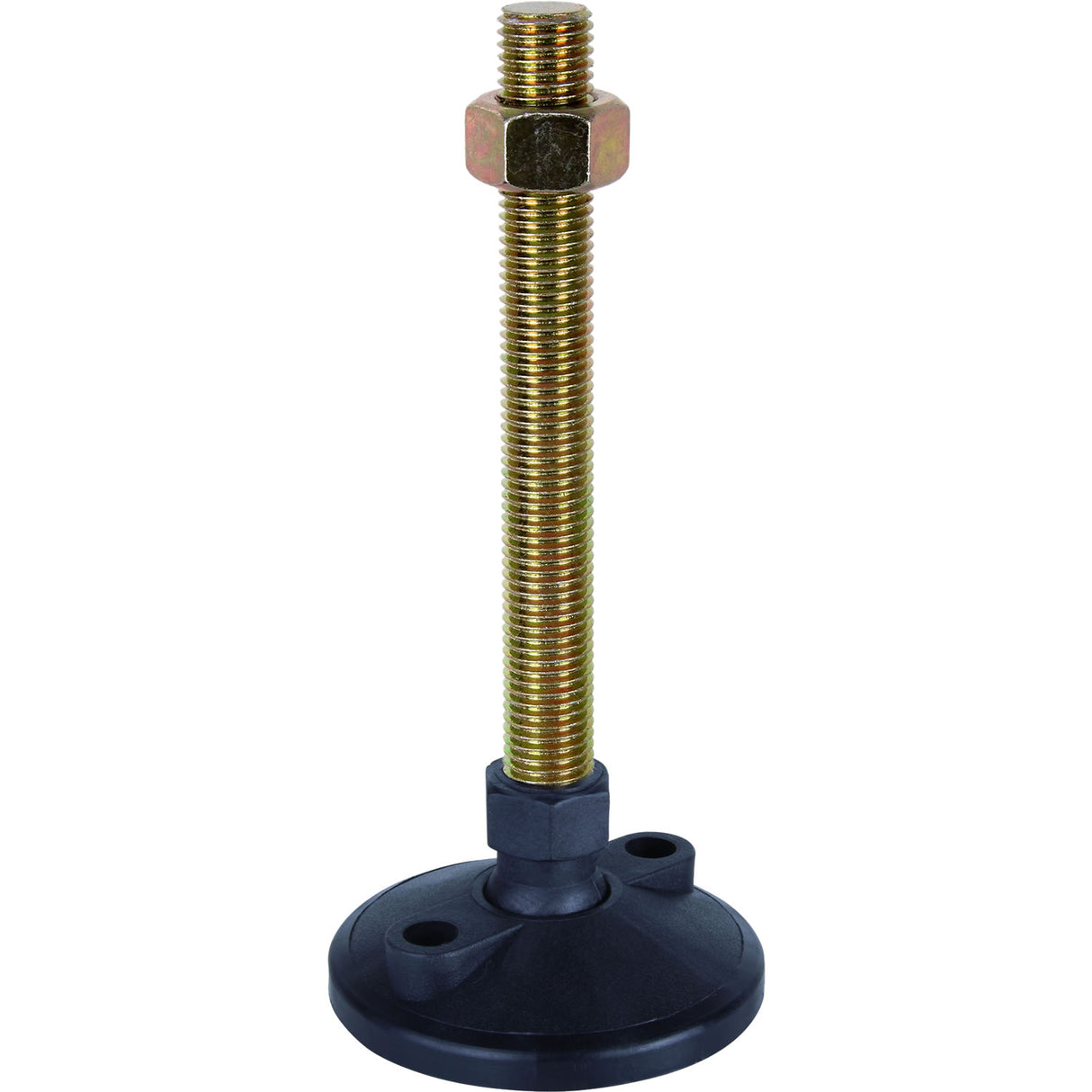

30/90/M20/165 - 1000 Kg 90mm x M20 Zinc Plated Levelling Feet
Regular price
$44.33
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
Data Sheet PDF
30/90/M20/165 - 1000 Kg 90mm x M20 Zinc Plated Levelling Feet is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Material: Ball Jointed Bolt-Down Mild Steel
- Size: 90mm x M20
- Base Diameter: 90mm
- Thread Length: 165mm
- Base+knuckle Height: 51mm
- Base Only Height: 25mm
- Thread Size: M20
- Thread Type: Zinc Plated
- Pivot Angle: 40 Deg
- Load Rating - Vertical: 1000 Kg
- Bolt Down Hole Centres: 60mm
- Bolt Down Hole Diameter: 11mm
Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.
-
Load Capacity1000 kg
