Technical Specifications
- -Material- Ball jointed Stainless Steel
- -Size- 90mm x M20
- -Base Diameter- 90mm
- -Thread Length- 100mm
- -Base+Knuckle Height- 51mm
- -Base Only Height- 25mm
- -Thread Size- M20
- -Thread Type- Stainless Steel
- -Pivot Angle- 40 Deg
- -Load Rating - Vertical- 1000 Kg

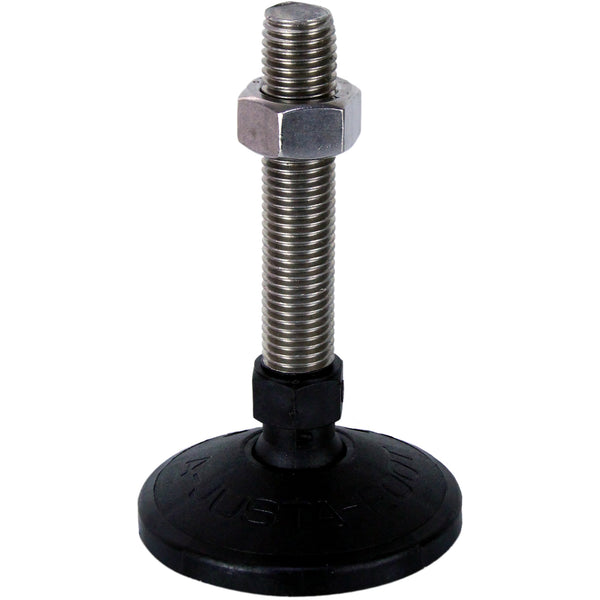

Adjustable/Levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.
