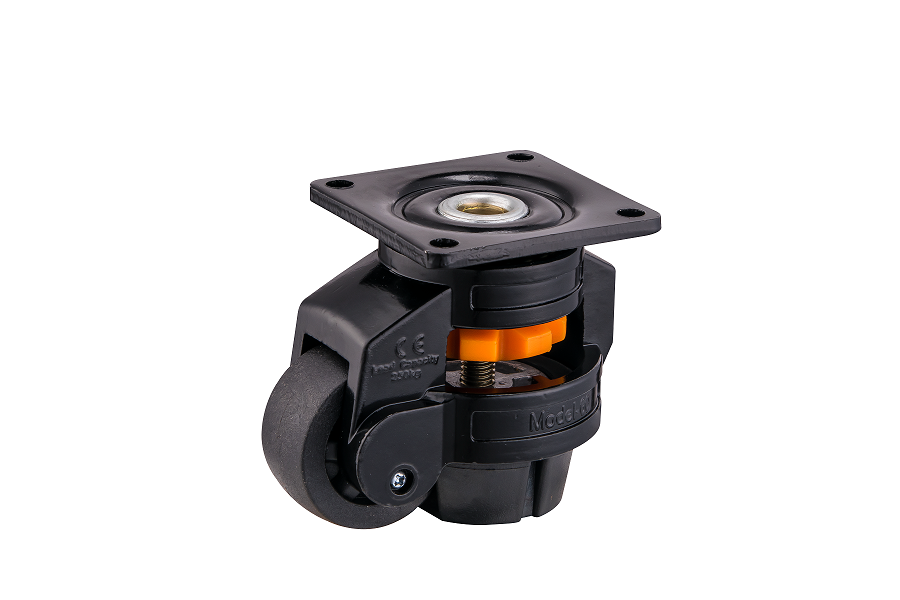

LV62HBLK - Level/Height Adjustment Castor 500kg

Product Description

Technical Specifications

• Castor Type: Swivel
• Load Capacity: 500 Kg per castor
• Mounting Type:Plate, 90mm x 90mm - Holes 9mm 70mm x 70mm Centres
• Wheel Material: Nylon
• Wheel Bearing Type: Plain Bush
• Frame Finish: Black Powder Coat
• Wheel Diameter X Tread Width: 62mm x 30.7mm
• Swivel Radius:- 75mm
• Lift Operation:Finger Operated Rotating Wheel (orange)
• -adjustable Range: 0-12mm
• Overall Height:Castor 110mm+12mm at max height adjustment

Finger operated levelling castor. Anti vibration rubber foot and nylon wheel. Cast alloy body with powder coat finish. Once the rubber foot is lowered the castor wheel is raised off the ground (heavier loads must be taken off castors to allow adjustment). When the foot is wound up the wheel contacts the ground and becomes a swivel castor. Suitable for workbenches, pool tables, machinery and displays. 2000kg max load over 4 units.
