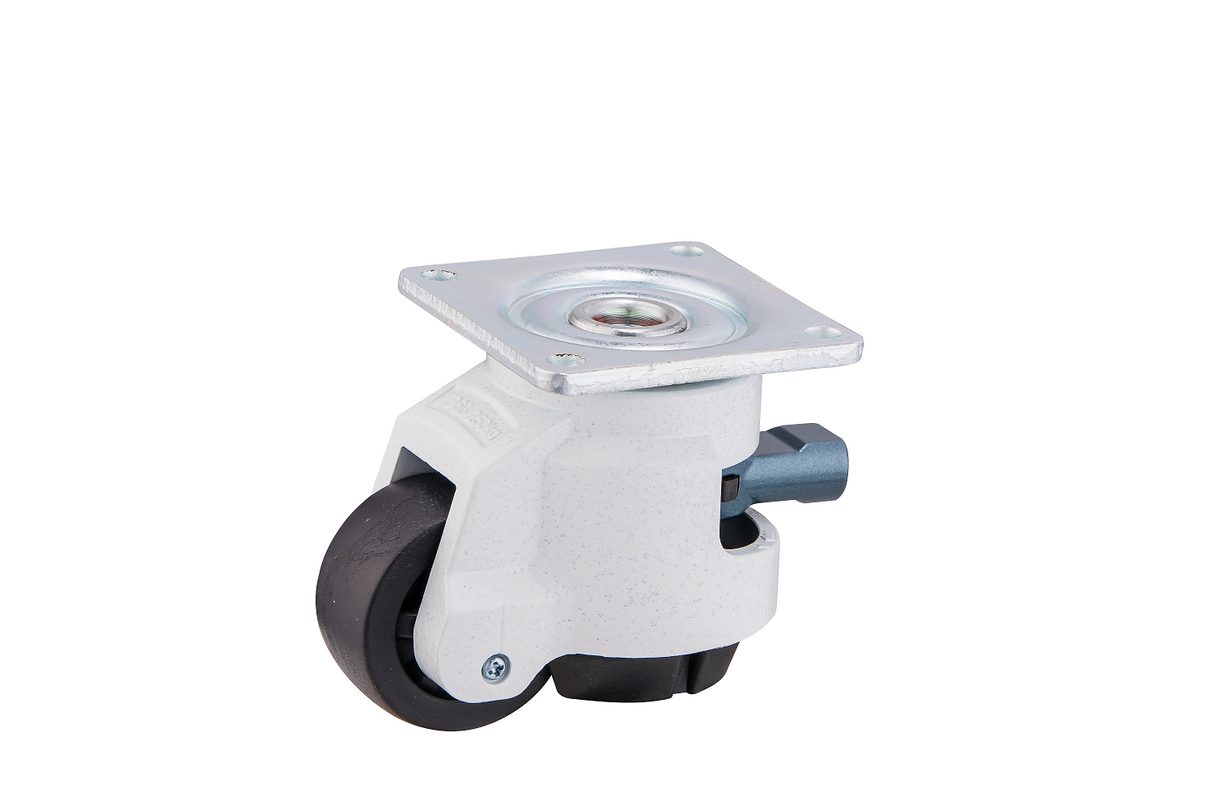

LV50RWHT - Level/Height Adjustment Castor 250kg

Product Description

Technical Specifications

• Castor Type: Swivel
• Load Capacity: 250 Kg per castor
• Mounting Type:Plate, 75mm x 75mm - Holes 7mm 58mm x 58mm Centres
• Wheel Material: Nylon
• Wheel Bearing Type: Plain Bush
• Frame Finish: White Powder Coat
• Wheel Diameter X Tread Width: 50mm x 24mm
• -swivel Radius: 63mm
• Lift Operation: Ratchet Lever with extension mounting hole
• -adjustable Range: 0-10mm
• Overall Height:Castor 85mm+10mm at max height adjustment

Ratchet Lever operated levelling castor. Ratchet lever with switchable direction up and down. Easily insert a phillips screwdriver or similar to extend length of the ratchet arm.

Easier to adjust height under load than the finger operated version.

Anti vibration rubber foot and nylon wheel. Cast alloy body with powder coat finish. Once the rubber foot is lowered the castor wheel is raised off the ground (heavier loads must be taken off castors to allow adjustment). When the foot is wound up the wheel contacts the ground and becomes a swivel castor. Suitable for workbenches, pool tables, machinery and displays.1000kgmax loadover 4 units.
