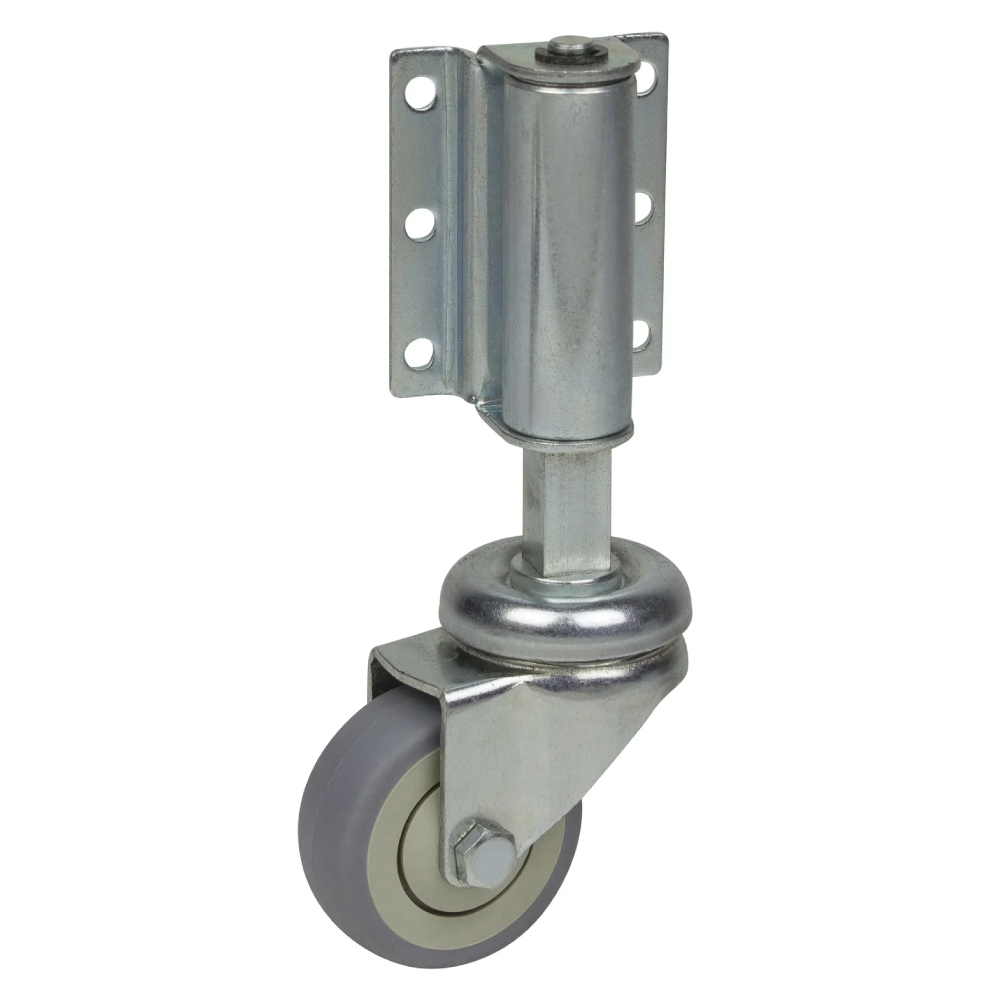

Gate Castor 50mm Spring Loaded – 50kg 50mm Rubber Wheel (Light Duty)
Shipping calculated at checkout.
Gate Castor 50mm Spring Loaded – 50kg 50mm Rubber Wheel (Light Duty) is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Gate Castor 50mm Spring Loaded – 50kg 50mm Rubber Wheel (Light Duty) is backordered and will ship as soon as it is back in stock.
-
Capacity50 kg
-
Overall Height155 mm
- Wheel
-
Wheel Diameter50 mm
Technical Specifications
- Material: Rubber Wheel, Zinc plated Steel Frame
- Wheel Diameter: 50mm
- Swivel Radius: 50mm
- Overall Height: 155mm
- Bracket Off-set: 20mm
- Bracket Mount Holes: Ø5mm x 24mm spacing
- Load Capacity: 50 kg
- Spring Travel: 20mm
Light duty spring loaded gate castor designed to support and stabilise smaller gates and doors over uneven surfaces. The integrated spring helps absorb shock and maintain consistent ground contact, reducing sag and strain on hinges.
Fitted with a 50mm rubber wheel, this castor provides smooth, quiet non-marking operation and is ideal for use on concrete, pavers and other hard surfaces.
Suitable for residential gates, pedestrian access gates, doors and other light duty applications.
The mounting bracket is designed to be fixed to the face of the gate or door. A 60mm clearance is required underneath to allow for full swivel rotation.
