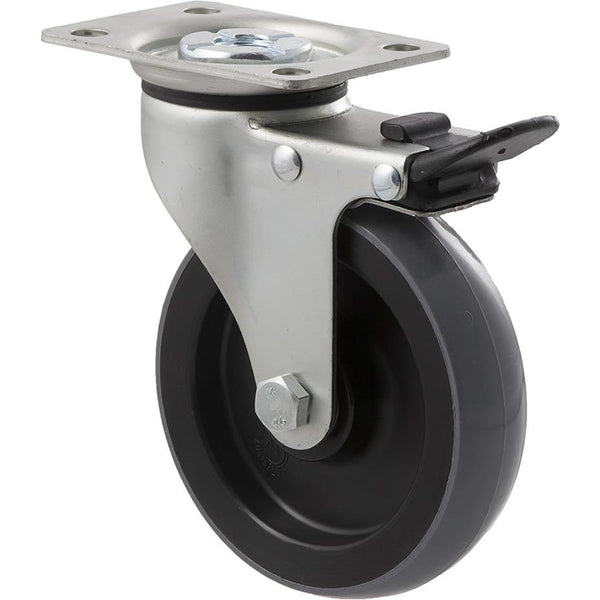

KUQ100/KZPTB - 100 kg Swivel Plate Total Brake 100mm Polyurethane
Shipping calculated at checkout.
KUQ100/KZPTB - 100 kg Swivel Plate Total Brake 100mm Polyurethane is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
KUQ100/KZPTB - 100 kg Swivel Plate Total Brake 100mm Polyurethane is backordered and will ship as soon as it is back in stock.
-
Castor TypeSwivel Total Brake
-
Capacity100 kg
-
Overall Height131 mm
- Wheel
-
Wheel Diameter100 mm
-
Tread Width23 mm
-
Wheel MaterialNylon
-
Tread MaterialPolyurethane
-
Axle TypeBolted
- Frame
-
Frame FinishZinc
- Bearing
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 100 kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: P/U on Nylon
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 23mm
- Overall Height: 131mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 89mm
Light industrial grey polyurethane tyred castor. General use in lighter applications including display stands, furniture, shop fitting and medical equipment.
Related Options..


Data Sheet PDF

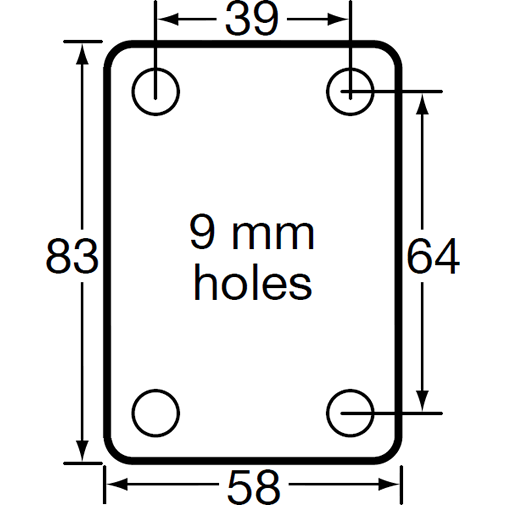

Mounting Solutions
