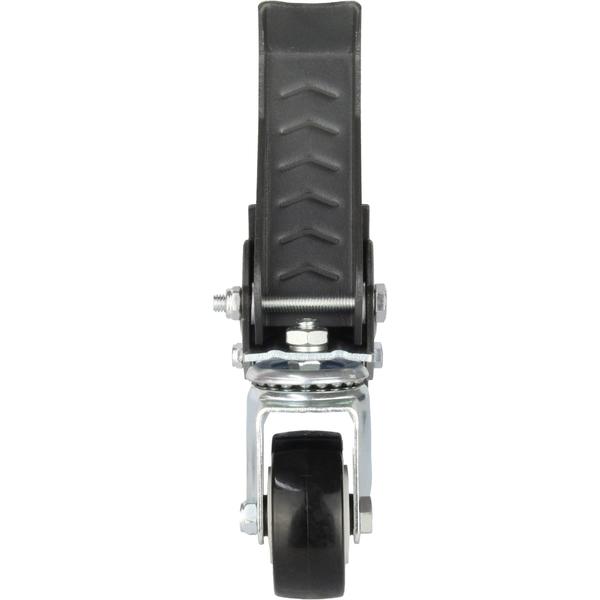

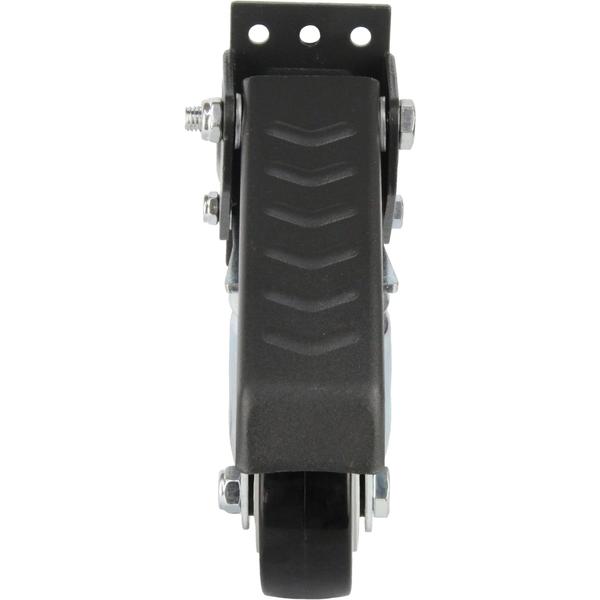

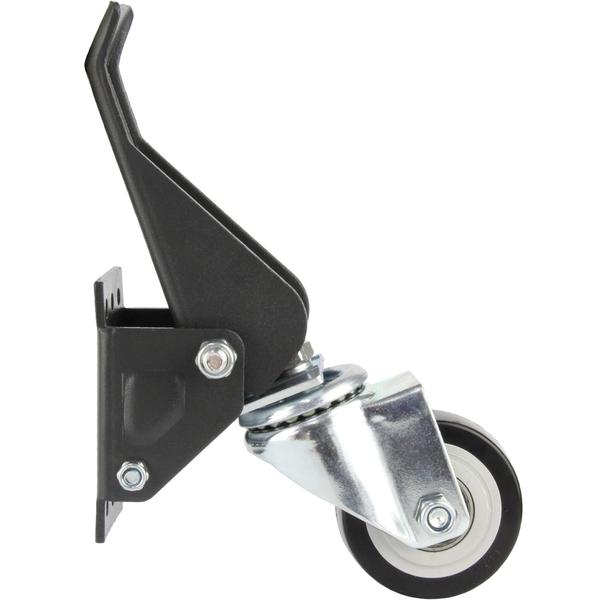

WBCS04 - 180 Kg Workbench Lift Castor Set of 4

Product Description

Technical Specifications

• Castor Type: Side mount - Lift Up
• Load Capacity: 180 Kg combined over 4 castors
• Brake Type: N/A
• Mounting Type: Plate
• Wheel Material: Black Polyurethane
• Wheel Bearing Type: Ball
• Thread Guard Fitted?: No
• Frame Finish: Grey Powdercoat
• Wheel Diameter X Tread Width: 65mm x 27mm
• Overall Height: 154mm (combined castor and mounting bracket)
• Lift Height: 40mm throw
• Axle Type: Bolted
• Mounting Plate Dimensions: 90mm x 50mm
• Mounting Plate Hole Centres: 69mm x 32mm
• Mounting Plate Hole Diameter: 6mm
• Swivel Radius (Inc. Brake If Fitted): 71mm

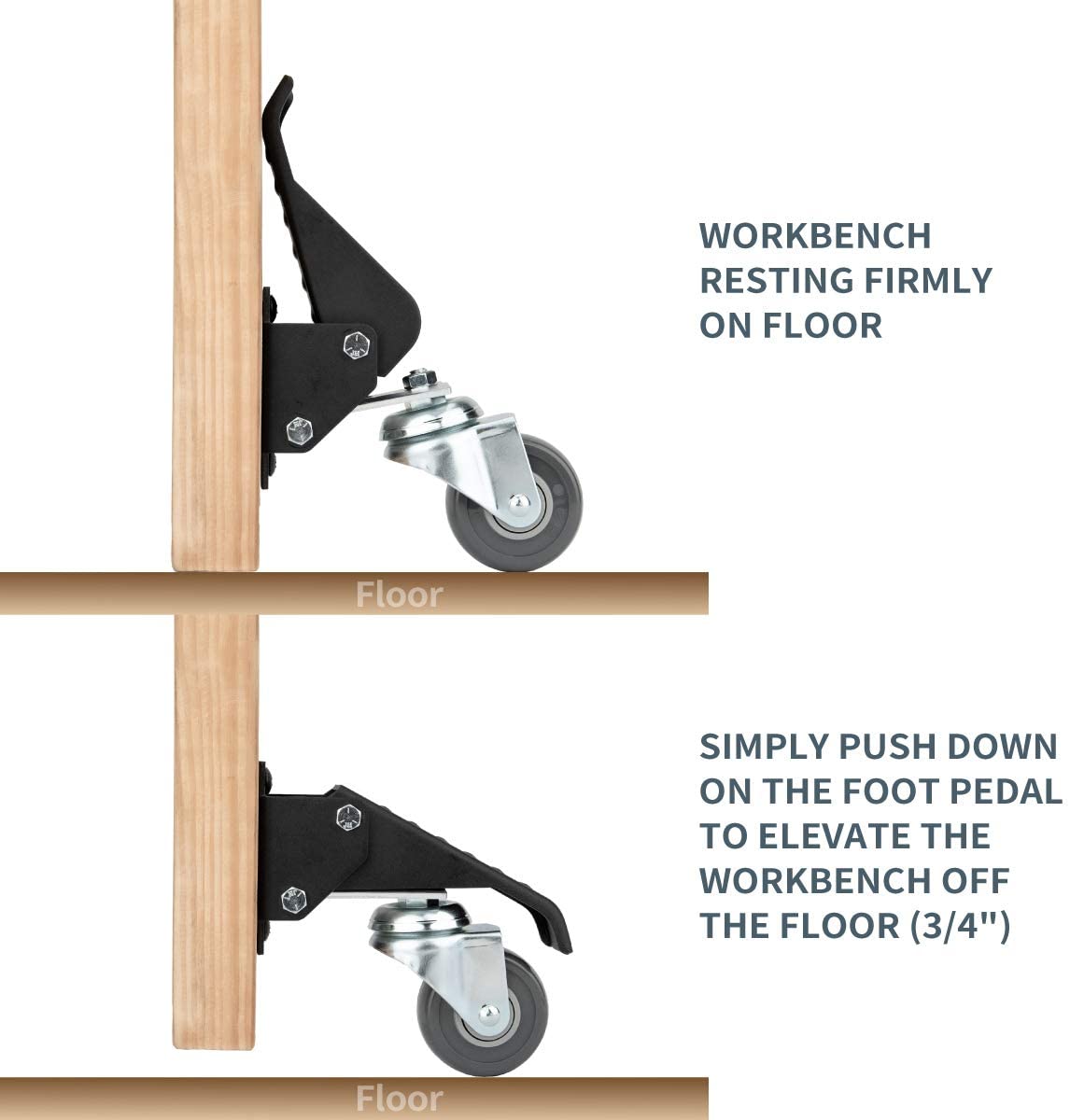

Workbench lift-up style castor set (4 castors). Side mount to legs of benches or equipment. Used for temporary lift and move. Popular with woodworking equipment, office equipment and other items that needs to be moved temporarily. Leaves equipment at original height and stability.

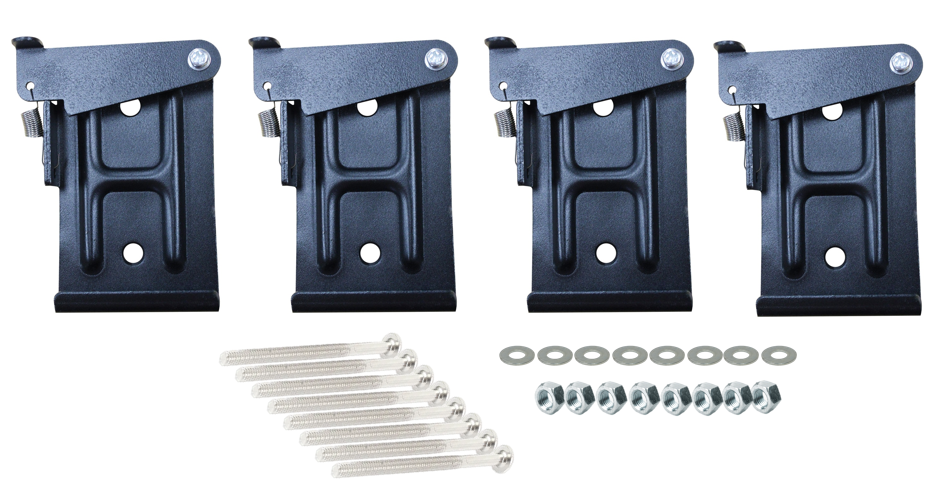

Quick release kit (set of 4) can be added to enable one set of castors to be used on multiple benches, castors slide in and out of mounted brackets and are locked with a pin once in place to function.

Quick release kits also sold separately (click here)
