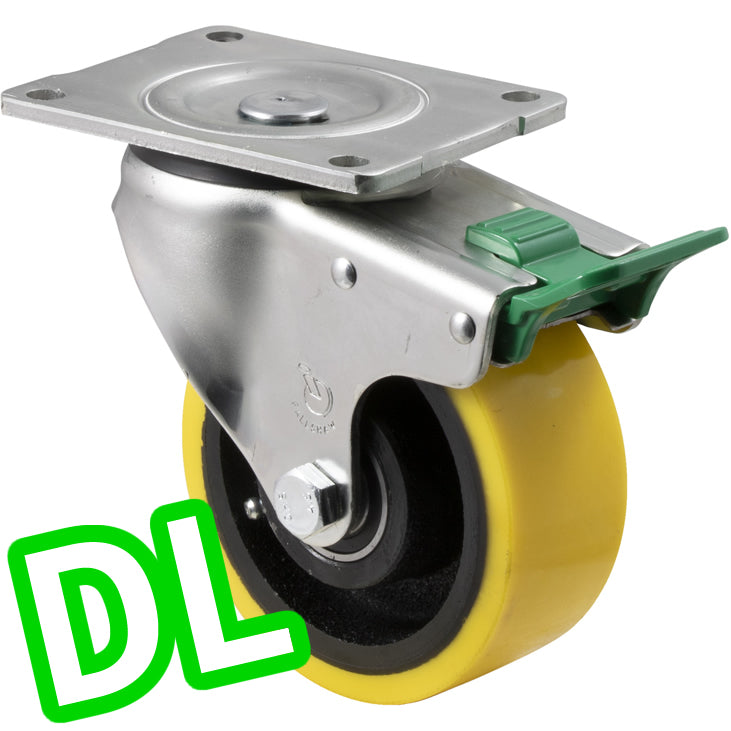

XUQ125/OZPDL - 400 kg Swivel Plate Direction Lock Only 125mm Polyurethane
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
XUQ125/OZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
XUQ125/OZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Underlined specification values indicate differences between product options.
Please confirm all specifications before ordering.
- SKU XUQ125/OZPDL
-
Castor TypeSwivel
-
Capacity400 kg
-
Overall Height164 mm
- Wheel
-
Wheel DiameterØ125 mm
-
Tread Width50 mm
-
Wheel MaterialCast Iron
-
Tread MaterialPolyurethane
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 400 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 164mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 162mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavier Industrial polyurethane castor. General use including heavier trolleys, engineering, transport and workshops.
MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
Click the wheel only option to view other XUQ125 frame options.
