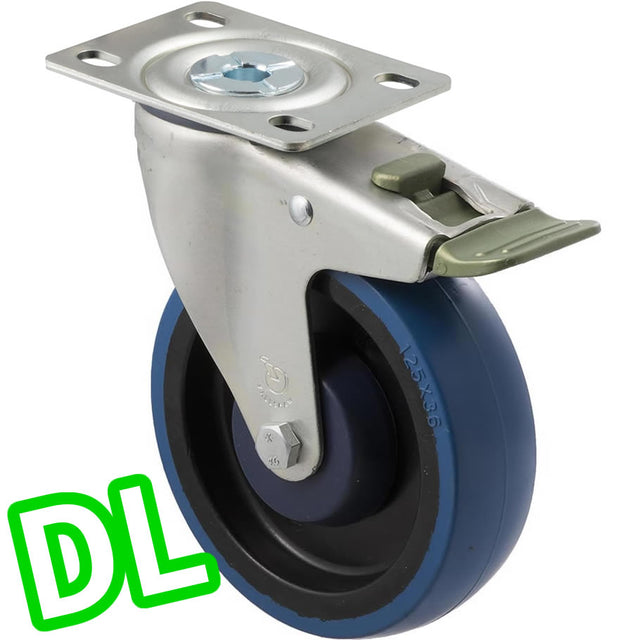

MBQ125G/MZPDL - 150 kg Swivel Plate Direction Lock Only 125mm Blue Rubber
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MBQ125G/MZPNDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
MBQ125G/MZPNDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU MBQ125G/MZPNDL
-
Castor TypeSwivel
-
Capacity150 kg
- Wheel
-
Wheel DiameterØ125 mm
-
Tread Width30 mm
-
Wheel MaterialBlack Nylon
-
Tread MaterialBlue High-Resilience Rubber
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 150 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Blue Rubber
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 30mm
- Overall Height: 161mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.
MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
