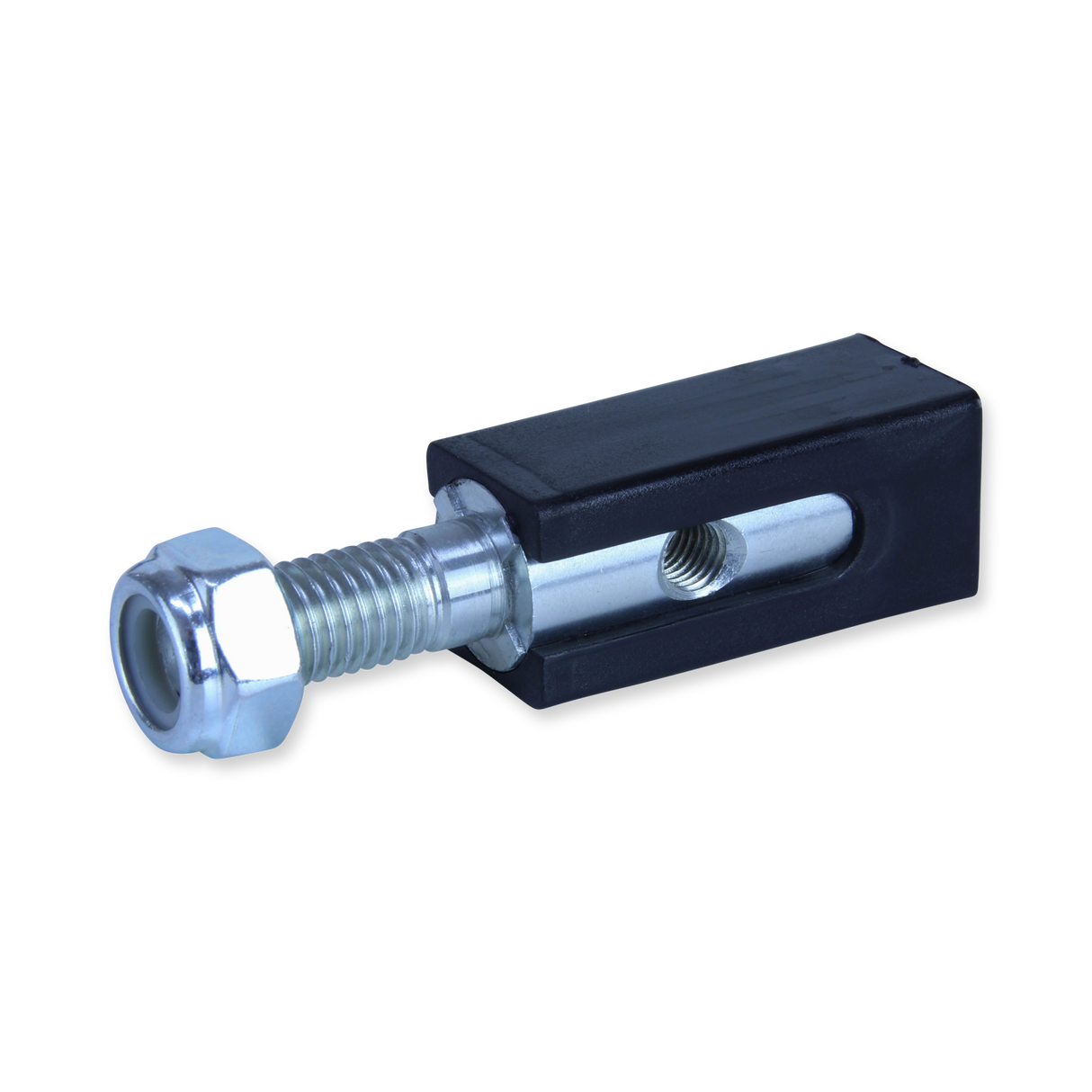

SP-AS22Z - Square Zinc Steel 22mm Solid Pintle Adapter
Regular price
$16.61
Unit price
/
Unavailable
GST included
SP-AS22Z - Square Zinc Steel 22mm Solid Pintle Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Shape: Square
- -dimensions-:51.0mm x 22.0mm
- Material: Zinc steel with square plastic sleeve
- Tube OD X Wall Thickness: 25.0mm x 1.6mm SQ
- Cross Drill Hole: 8mm diameter, 19mm from end of tube.
Specs - click here.
Installation Instructions - click here.
Solid steel pintle with plastic sleeve to fit square tubing. Used to attach castors to metal tubing. Particularly good when using castors that have directional locks. More secure than expanding plastic type. These pintles require an M8 bolt/screw through the side of the tube (not supplied)
