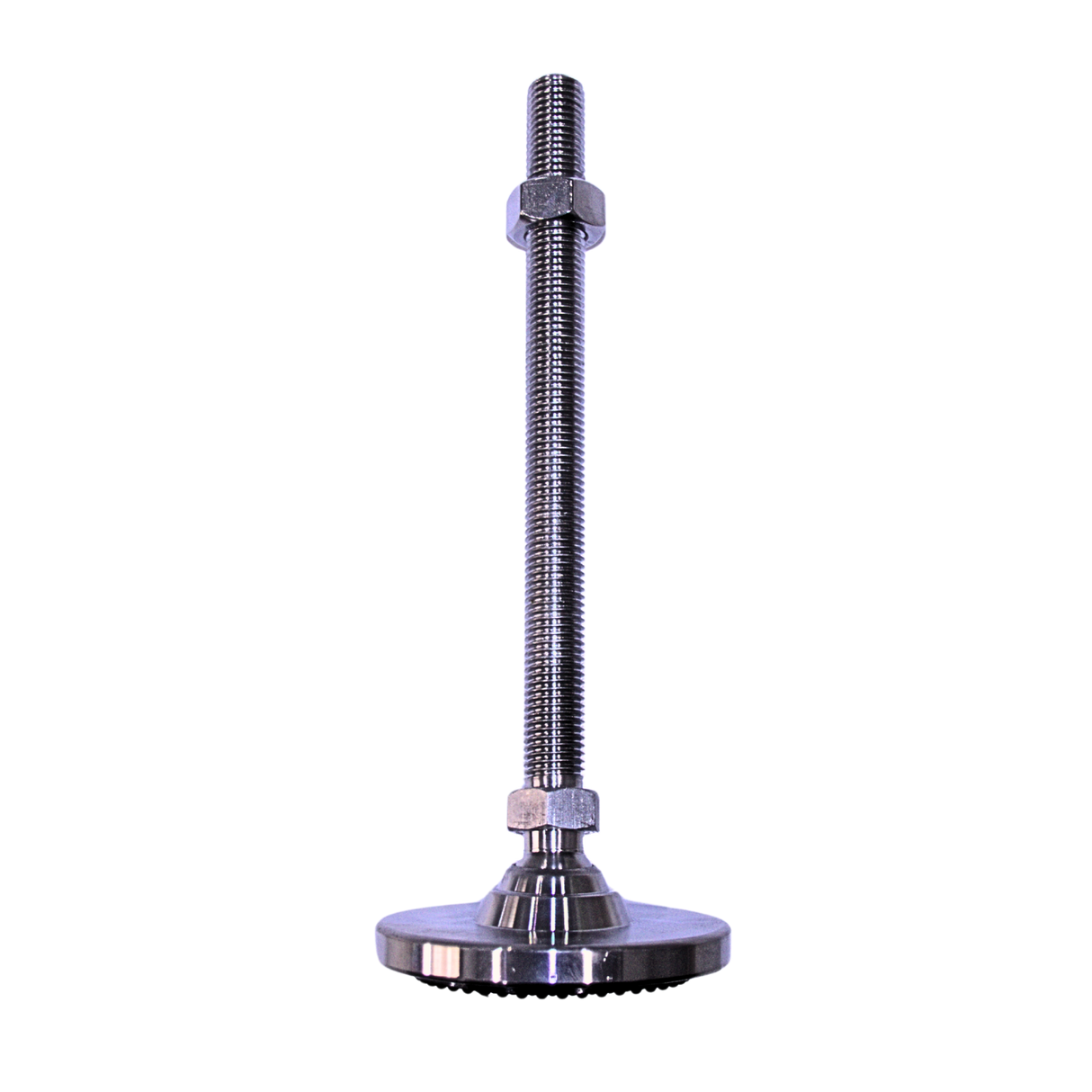

SSF-90-M16-190 - HD S/S Levelling Foot, 2000kg, Ø90mm Base, M16x190mm

Product Description

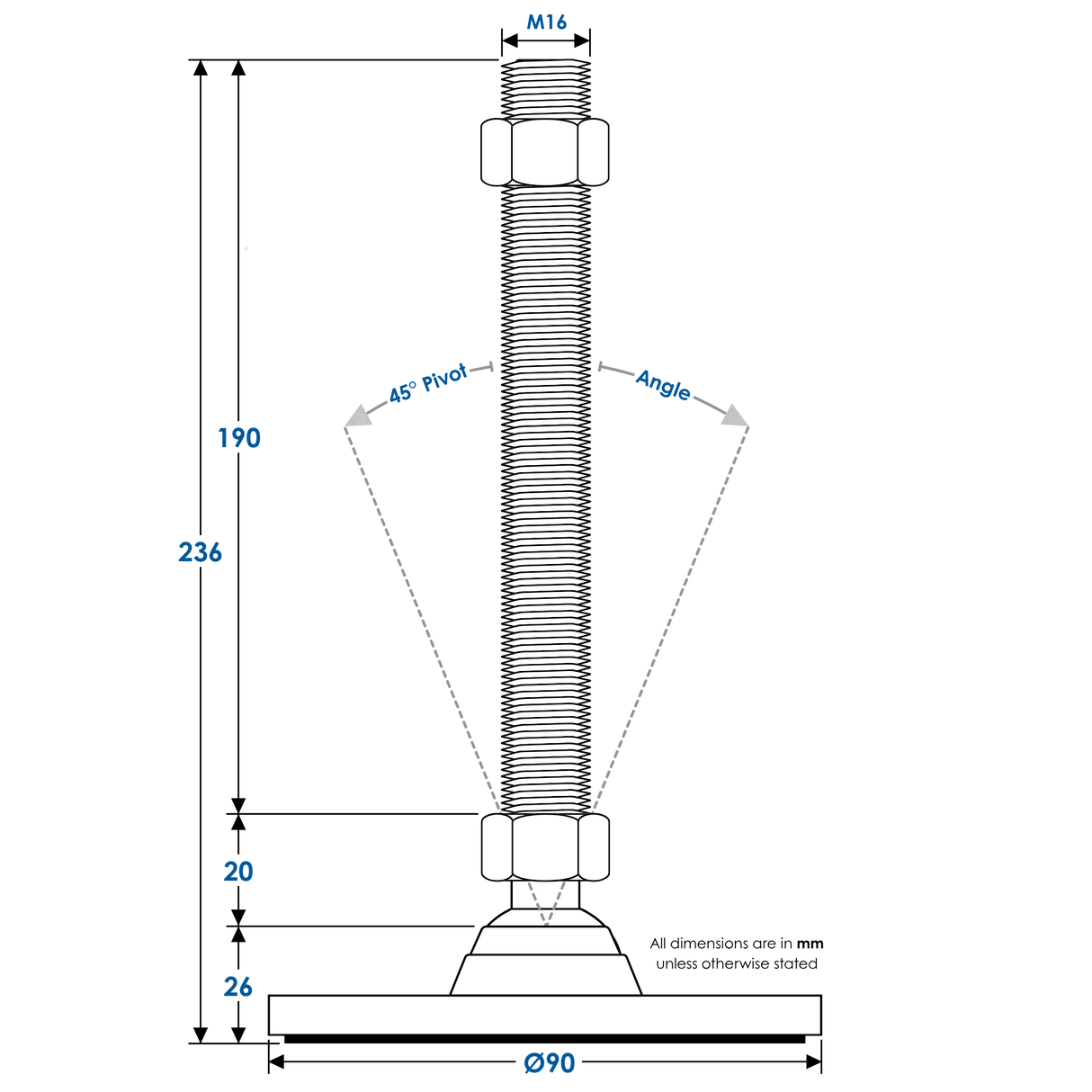

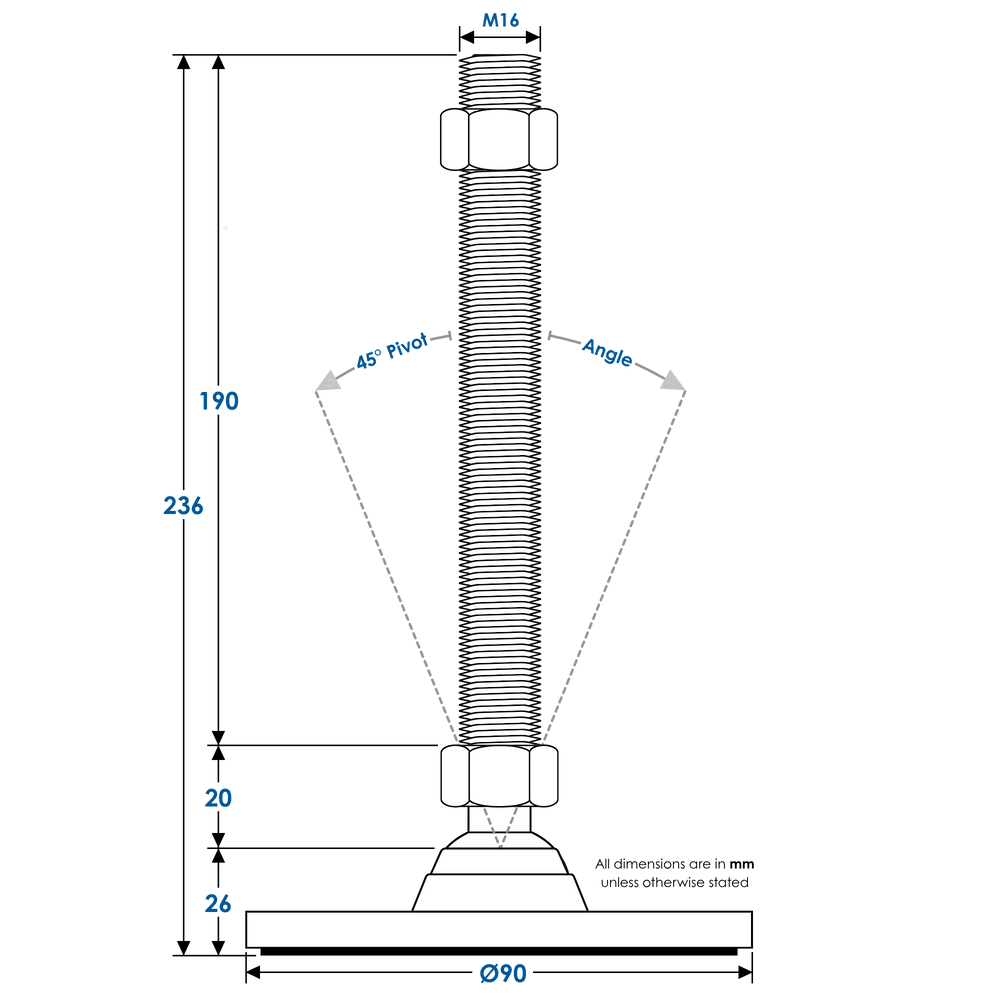

Technical Specifications

• Material: 304 Stainless Steel
• Type: Ball Jointed Machined H/D S/S

• Thread Size: M16
• Thread Length: 190mm
• Base Diameter: 90mm
• Base Only Height: 26mm
• Base-To-Knuckle Height: 46mm

• Overall Height: 236mm
• Thread Type: Stainless Steel
• Pivot Angle: 45°
• Load Rating (Vertical): 2000kg

This heavy-duty adjustable levelling foot is engineered for demanding load-bearing applications including machinery, fabrication equipment, and other industrial installations. Constructed from high-quality 304 grade stainless steel throughout the base, threaded stud, knuckle, and locknut, it is well suited to environments requiring strong corrosion resistance and high hygiene standards, such as food processing facilities and areas exposed to moisture or chemicals.

The articulated ball joint permits up to 45° of pivot to compensate for uneven flooring and installation surfaces. A non-slip rubber pad is integrated into the 90mm diameter base, improving surface grip and assisting with vibration reduction. Designed for high vertical load performance, this unit delivers reliable strength, stability, and long-term durability in harsh operating conditions.

Additional sizes may be supplied upon request.
