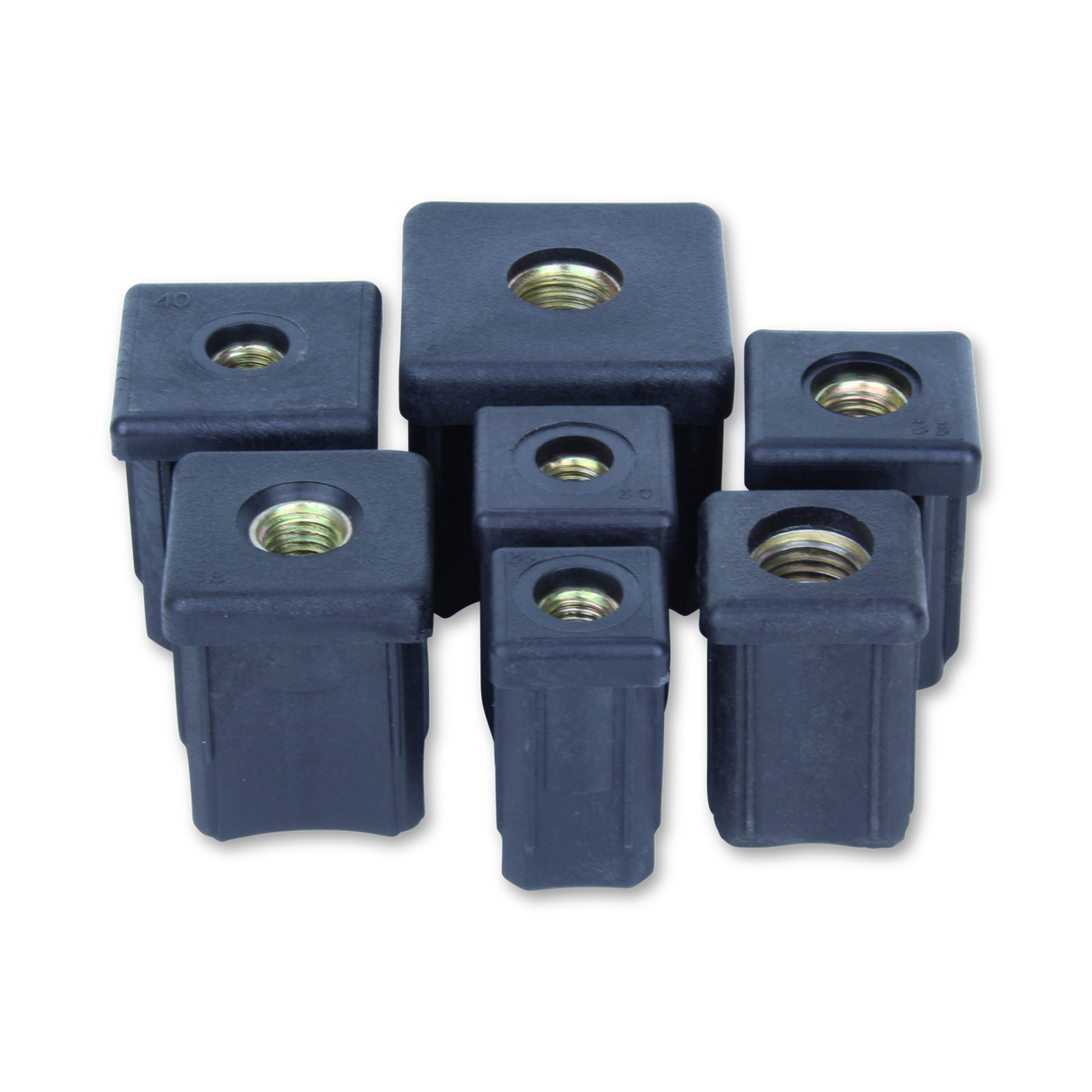

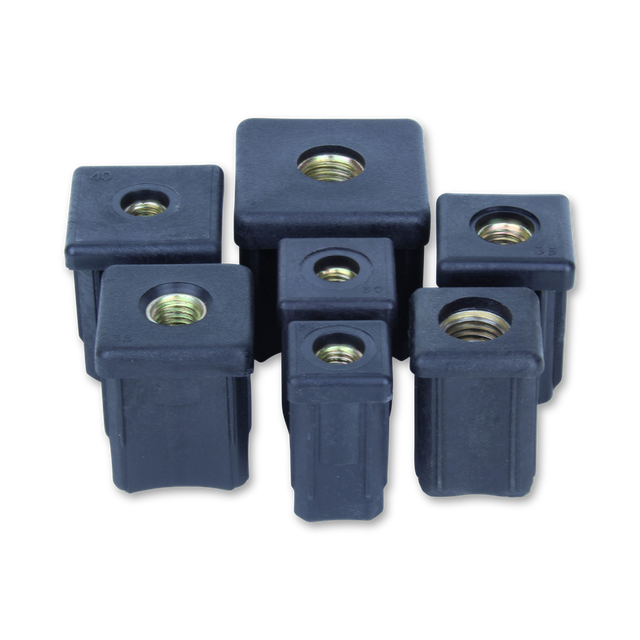

10/35/M12 - 35mm x 35mm Square M/S Threaded Tube Insert
Regular price
$6.95
Unit price
/
Unavailable
GST included
Data Sheet PDF
10/35/M12 - 35mm x 35mm Square M/S Threaded Tube Insert is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Size: 35mm X M12
- Outer Tube Diameter: 35mm x 35mm
- Thread Size: M12
- Thread Type: Zinc Plated
- Inserted Length: 39mm
- Overall Length: 45mm
- Plug Diameter: 32.2mm
- Recommended Tube ID Size: 31mm-32mm
- Load Rating: 400 Kg
Square threaded tube insert to suit mounting adjustable/levelling feet. Glass filled nylon for high strength, zinc plated thread.
-
Load Capacity400 kg
