Cast Iron

Sort by:
AUQ200 3000 Kg Polyurethane Wheel

Wheels

$394.90 (Incl. GST)
AUQ200 3000 Kg <span>Polyurethane Wheel</span>

AUQ200 3000 Kg Polyurethane Wheel

$394.90 (Incl. GST)

Technical Specifications

  • -Load Capacity- 3000 Kg
  • -Wheel Diameter- 200mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 100mm
  • -Hub Length (unsleeved)- N/A
  • -Hub Length (sleeved)- 109mm
  • -Bore Diameter (Unsleeved)- 30mm
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Very Heavy Duty polyurethane tyred cast iron wheel only (fitted with ball bearings)


More Info
AUQ250 3500 Kg Polyurethane Wheel

Wheels

$451.00 (Incl. GST)
AUQ250 3500 Kg <span>Polyurethane Wheel</span>

AUQ250 3500 Kg Polyurethane Wheel

$451.00 (Incl. GST)

Technical Specifications

  • -Load Capacity- 3500 Kg
  • -Wheel Diameter- 250mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 100mm
  • -Hub Length (unsleeved)- N/A
  • -Hub Length (sleeved)- 109mm
  • -Bore Diameter (Unsleeved)- 30mm
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Very Heavy Duty polyurethane tyred cast iron wheel only (fitted with ball bearings)


More Info
BH-G150K 900 Kg Zinc Castor <span>Fixed Cast Iron 150mm x 50mm</span>

BH-G150K 900 Kg Zinc Castor Fixed Cast Iron 150mm x 50mm

$84.85 (Incl. GST)

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 900 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 197mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (Inc. brake if fitted)- N/A

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
BH-G200K 900 Kg Zinc Castor <span>Fixed Cast Iron 200mm x 50mm</span>

BH-G200K 900 Kg Zinc Castor Fixed Cast Iron 200mm x 50mm

$105.35 (Incl. GST)

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 900 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 200mm x 50mm
  • -Overall Height- 245mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- N/A

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
DCI75 100 Kg Cast Iron Wheel

Wheels

$15.85 (Incl. GST)
DCI75 100 Kg <span>Cast Iron Wheel</span>

DCI75 100 Kg Cast Iron Wheel

$15.85 (Incl. GST)

Technical Specifications

  • -Load Capacity- 100 Kg
  • -Wheel Diameter- 75mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 32mm
  • -Hub Length (unsleeved)- 40mm
  • -Hub Length (sleeved)- 41.3mm
  • -Bore Diameter (Unsleeved)- 12mm
  • -Sleeved Bore Diameter Options- 8mm
  • -Sleeve Type- Spacer Tube
  • -Bearing Type- Plain

Medium Duty cast iron wheel only - plain bore (supplied with spacer sleeve)

Related Options...


More Info
DCI75/MZF 100 Kg Zinc Castor <span>Fixed Cast Iron 75mm x 32mm</span>

DCI75/MZF 100 Kg Zinc Castor Fixed Cast Iron 75mm x 32mm

$24.10 (Incl. GST)

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

Also used in oven racks, powder coating trolleys and freezer trolleys.

Related Options...


MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
DCI75/MZFHT 100 Kg Zinc Castor - HIGH TEMP <span>Fixed Cast Iron 75mm x 32mm</span>

DCI75/MZFHT 100 Kg Zinc Castor - HIGH TEMP Fixed Cast Iron 75mm x 32mm

$25.20 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Fixed
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Light industrial hi/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options...


MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
DCI75/MZH 100 Kg Zinc Castor <span>Bolt-Hole Cast Iron 75mm x 32mm</span>

DCI75/MZH 100 Kg Zinc Castor Bolt-Hole Cast Iron 75mm x 32mm

$28.85 (Incl. GST)

Technical Specifications

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

Also used in oven racks, powder coating trolleys and freezer trolleys.

Related Options...


More Info
DCI75/MZHHT 100 Kg Zinc Castor - HIGH TEMP <span>Bolt-Hole Cast Iron 75mm x 32mm</span>

DCI75/MZHHT 100 Kg Zinc Castor - HIGH TEMP Bolt-Hole Cast Iron 75mm x 32mm

$33.85 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial hi/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options...


More Info
DCI75/MZP 100 Kg Zinc Castor <span>Swivel Cast Iron 75mm x 32mm</span>

DCI75/MZP 100 Kg Zinc Castor Swivel Cast Iron 75mm x 32mm

$28.85 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

Also used in oven racks, powder coating trolleys and freezer trolleys.

Related Options...


MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
DCI75/MZPHT 100 Kg Zinc Castor - HIGH TEMP <span>Swivel Cast Iron 75mm x 32mm</span>

DCI75/MZPHT 100 Kg Zinc Castor - HIGH TEMP Swivel Cast Iron 75mm x 32mm

$33.85 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial hi/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options...


MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
DCI75HT 100 Kg - HIGH TEMP Cast Iron Wheel

Wheels

$15.85 (Incl. GST)
DCI75HT 100 Kg - HIGH TEMP <span>Cast Iron Wheel</span>

DCI75HT 100 Kg - HIGH TEMP Cast Iron Wheel

$15.85 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Load Capacity- 100 Kg
  • -Wheel Diameter- 75mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 32mm
  • -Hub Length (unsleeved)- 40mm
  • -Hub Length (sleeved)- 41.3mm
  • -Bore Diameter (Unsleeved)- 12mm
  • -Sleeved Bore Diameter Options- 8mm
  • -Sleeve Type- Spacer Tube
  • -Bearing Type- Plain

Medium Duty cast iron wheel only - plain bore (supplied with spacer sleeve)

Related Options...


More Info
ECC75 Small Engine Crane Castor <span>Cast Iron 75mm x 40mm

ECC75 Small Engine Crane Castor Cast Iron 75mm x 40mm

$15.84 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- Not rated!
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Mild Steel
  • -Wheel Diameter X Tread Width- 75mm x 29mm
  • -Overall Height- 99mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 95mm x 60mm
  • -Mounting Plate Hole Centres- 74mm x 30mm
  • -Mounting Plate Hole Diameter- 9mm
  • -Swivel Radius (inc. brake if fitted)- 68mm

Small engine crane castor used mostly as the centre support of most engine cranes available.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
ECC88 Large Engine Crane Castor <span>Cast Iron 88mm x 40mm

ECC88 Large Engine Crane Castor Cast Iron 88mm x 40mm

$20.24 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- Not rated!
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Mild Steel
  • -Wheel Diameter X Tread Width- 88mm x 29mm
  • -Overall Height- 115mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 95mm x 60mm
  • -Mounting Plate Hole Centres- 74mm x 30mm
  • -Mounting Plate Hole Diameter- 9mm
  • -Swivel Radius (inc. brake if fitted)- 71mm

Large engine crane castor used mostly as the rear or front leg support of most engine cranes available.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
G150/20K 900 Kg Cast Iron Wheel

Wheels

From $52.95 (Incl. GST)
G150/20K 900 Kg <span>Cast Iron Wheel</span>

G150/20K 900 Kg Cast Iron Wheel

$52.95 (Incl. GST)

Technical Specifications

  • -Load Capacity- 900 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 65.1mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm(1/2")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Heavy Industrial cast iron wheel only - fitted with 20mm ball bearings. Option with top hat reducing pair (reduced to 1/2" ) for mounting into castors.

Delivery or in-store pickup available.

Spacer/Reducer Option

More Info

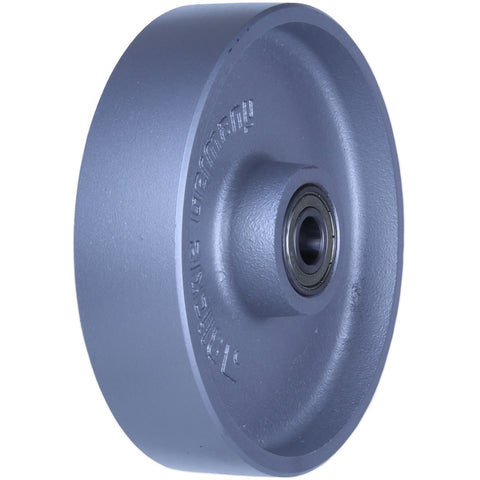

G200/20K 1000 Kg Cast Iron Wheel

Wheels

From $69.60 (Incl. GST)
G200/20K 1000 Kg <span>Cast Iron Wheel</span>

G200/20K 1000 Kg Cast Iron Wheel

$69.60 (Incl. GST)

Technical Specifications

  • -Load Capacity- 1000 Kg
  • -Wheel Diameter- 200mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 65.1mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm(1/2")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Heavy Industrial cast iron wheel only - fitted with 20mm ball bearings. Option with top hat reducing pair (reduced to 1/2" ) for mounting into castors.

Delivery or in-store pickup available.

Spacer/Reducer Option

More Info
GTH150/20K 750 Kg Polyurethane Wheel

Wheels

From $72.90 (Incl. GST)
GTH150/20K 750 Kg <span>Polyurethane Wheel</span>

GTH150/20K 750 Kg Polyurethane Wheel

$72.90 (Incl. GST)

Technical Specifications

  • -Load Capacity- 750 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 65.1mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm(1/2")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Heavy Industrial polyurethane tyred cast iron wheel only - fitted with ball bearings

Delivery or in-store pickup available.

Spacer/Reducer Option

More Info
GTH200/20K 1000 Kg Polyurethane Wheel

Wheels

From $93.30 (Incl. GST)
GTH200/20K 1000 Kg <span>Polyurethane Wheel</span>

GTH200/20K 1000 Kg Polyurethane Wheel

$93.30 (Incl. GST)

Technical Specifications

  • -Load Capacity- 1000 Kg
  • -Wheel Diameter- 200mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 65.1mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm(1/2")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Heavy Industrial polyurethane tyred cast iron wheel only - fitted with ball bearings

Delivery or in-store pickup available.

Spacer/Reducer Option

More Info
GTHN150/25H7 150mm x 50mm <span>Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway</span>

GTHN150/25H7 150mm x 50mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway

$132.55 (Incl. GST)

Technical Specifications

  • -Load Capacity- 650 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 25mm w/ H7 Keyway
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- N/A

Delivery or in-store pickup available.


More Info
GTHN200/25H7 200mm x 50mm <span>Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway</span>

GTHN200/25H7 200mm x 50mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway

$171.05 (Incl. GST)

Technical Specifications

  • -Load Capacity- 900 Kg
  • -Wheel Diameter- 200mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 50mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 25mm w/ H7 Keyway
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- N/A

Delivery or in-store pickup available.


More Info
GTHN202/35H7 200mm x 80mm <span>Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway</span>

GTHN202/35H7 200mm x 80mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway

$262.40 (Incl. GST)

Technical Specifications

  • -Load Capacity- 1400 Kg
  • -Wheel Diameter- 200mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 80mm
  • -Hub Length (unsleeved)- 80mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 35mm w/ H7 Keyway
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- N/A

Delivery or in-store pickup available.


More Info
GTHN252/40H7 250mm x 80mm <span>Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway</span>

GTHN252/40H7 250mm x 80mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway

$287.20 (Incl. GST)

Technical Specifications

  • -Load Capacity- 1600 Kg
  • -Wheel Diameter- 250mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 80mm
  • -Hub Length (unsleeved)- 80mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 40mm w/ H7 Keyway
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- N/A

Delivery or in-store pickup available.


More Info
JCI100 230 Kg Cast Iron Wheel

Wheels

$26.60 (Incl. GST)
JCI100 230 Kg <span>Cast Iron Wheel</span>

JCI100 230 Kg Cast Iron Wheel

$26.60 (Incl. GST)

Technical Specifications

  • -Load Capacity- 230 Kg
  • -Wheel Diameter- 100mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 38mm
  • -Hub Length (unsleeved)- 45mm
  • -Hub Length (sleeved)- 46.3mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 10mm
  • -Sleeve Type- Spacer Tube
  • -Bearing Type- Plain

Medium Industrial cast iron wheel only - plain bore (supplied with spacer sleeve) HI TEMP suitable.

Related Options...


More Info
JCI100/JZF 230 Kg Zinc Castor <span>Fixed Cast Iron 100mm x 38mm</span>

JCI100/JZF 230 Kg Zinc Castor Fixed Cast Iron 100mm x 38mm

$39.55 (Incl. GST)

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...


More Info
JCI100/JZFHT 230 Kg Zinc Castor - HIGH TEMP <span>Fixed Cast Iron 100mm x 38mm</span>

JCI100/JZFHT 230 Kg Zinc Castor - HIGH TEMP Fixed Cast Iron 100mm x 38mm

$38.90 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Fixed
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Related Options...


More Info
JCI100/JZH 230 Kg Zinc Castor <span>Bolt-Hole Cast Iron 100mm x 38mm</span>

JCI100/JZH 230 Kg Zinc Castor Bolt-Hole Cast Iron 100mm x 38mm

$47.80 (Incl. GST)

Technical Specifications

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Related Options...


More Info
JCI100/JZHHT 230 Kg Zinc Castor - HIGH TEMP <span>Bolt-Hole Cast Iron 100mm x 38mm</span>

JCI100/JZHHT 230 Kg Zinc Castor - HIGH TEMP Bolt-Hole Cast Iron 100mm x 38mm

$50.40 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...


More Info
JCI100/JZP 230 Kg Zinc Castor <span>Swivel Cast Iron 100mm x 38mm</span>

JCI100/JZP 230 Kg Zinc Castor Swivel Cast Iron 100mm x 38mm

$47.80 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Related Options...


More Info
JCI100/JZPHT 230 Kg Zinc Castor - HIGH TEMP <span>Swivel Cast Iron 100mm x 38mm</span>

JCI100/JZPHT 230 Kg Zinc Castor - HIGH TEMP Swivel Cast Iron 100mm x 38mm

$50.40 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Swivel
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...


More Info
LH-G150K 900 Kg Zinc Castor <span>Swivel Cast Iron 150mm x 50mm</span>

LH-G150K 900 Kg Zinc Castor Swivel Cast Iron 150mm x 50mm

$132.65 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 900 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 197mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 140mm

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
LH-G150K-F1 900 Kg Zinc Castor <span>Swivel Total Brake Cast Iron 150mm x 50mm</span>

LH-G150K-F1 900 Kg Zinc Castor Swivel Total Brake Cast Iron 150mm x 50mm

$159.70 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 900 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 197mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 170mm

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
LH-G200K 900 Kg Zinc Castor <span>Swivel Cast Iron 200mm x 50mm</span>

LH-G200K 900 Kg Zinc Castor Swivel Cast Iron 200mm x 50mm

$141.15 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 900 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 200mm x 50mm
  • -Overall Height- 245mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 170mm

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
LH-G200K-F1 900 Kg Zinc Castor <span>Swivel Total Brake Cast Iron 200mm x 50mm</span>

LH-G200K-F1 900 Kg Zinc Castor Swivel Total Brake Cast Iron 200mm x 50mm

$182.45 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 900 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 200mm x 50mm
  • -Overall Height- 245mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 140mm x 110mm
  • -Mounting Plate Hole Centres- 105mm x 75mm-80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 190mm

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.


More Info
Pallet Truck Poly/Cast Iron Load Roller 750 Kg

Pallet Truck Poly/Cast Iron Load Roller 750 Kg

$40.50 (Incl. GST)

Technical Specifications:

  • -Load Capacity:- 750 Kg
  • -Wheel Diameter:- 74mm
  • -Wheel Material:- Cast Iron
  • -Tyre Material:- Red Polyurethane
  • -Tread Width:- 93mm
  • -Hub Length (unsleeved):- 93mm
  • -Hub Length (sleeved):-
  • -Bore Diameter (Unsleeved):- 20mm
  • -Sleeved Bore Diameter Options:-
  • -Sleeve Type:-
  • -Bearing Type:- Ball Bearings

Heavy Industrial red polyurethane roller - fitted with ball bearings.

Direct replacements for our Pallet Trucks.

-Delivery or in-store pickup available.


More Info
Pallet Truck Poly/Cast Iron Steer Wheel 500 Kg

Pallet Truck Poly/Cast Iron Steer Wheel 500 Kg

$63.25 (Incl. GST)

Technical Specifications:

  • -Load Capacity:- 500 Kg
  • -Wheel Diameter:- 180mm
  • -Wheel Material:- Cast Iron
  • -Tyre Material:- Red Polyurethane
  • -Tread Width:- 50mm
  • -Hub Length (unsleeved):- 43mm with recess on 1 side
  • -Hub Length (sleeved):-
  • -Bore Diameter (Unsleeved):- 20mm
  • -Sleeved Bore Diameter Options:-
  • -Sleeve Type:-
  • -Bearing Type:- Ball Bearings

Heavy Industrial red polyurethane steer wheel - fitted with ball bearings.

Direct replacements for our Pallet Trucks.

-Delivery or in-store pickup available.


More Info
SAS-123 VLK-PB25 2200 Kg <span>Polyurethane Drive Wheel</span>

SAS-123 VLK-PB25 2200 Kg Polyurethane Drive Wheel

$262.70 (Incl. GST)

Technical Specifications

  • -Load Capacity- 2200 Kg
  • -Wheel Diameter- 300mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 75mm
  • -Hub Length (unsleeved)- 82mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 25mm
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- Plain

Heavy Industrial polyurethane tyred cast iron wheel only - pilot bore (plain) (to be machined and keyed to suit drive applications)

Delivery or in-store pickup available.


More Info
SAS-63 VLK-PB25 1050 Kg <span>Polyurethane Drive Wheel</span>

SAS-63 VLK-PB25 1050 Kg Polyurethane Drive Wheel

$117.05 (Incl. GST)

Technical Specifications

  • -Load Capacity- 1050 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 75mm
  • -Hub Length (unsleeved)- 82mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (Unsleeved)- 25mm
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- Plain

Heavy Industrial polyurethane tyred cast iron wheel only - pilot bore (plain) (to be machined and keyed to suit drive applications)

Delivery or in-store pickup available.


More Info
Scissor Lift Table Poly/Cast Iron Wheel 200 Kg

Scissor Lift Table Poly/Cast Iron Wheel 200 Kg

$50.70 (Incl. GST)

Technical Specifications:

  • -Load Capacity:- 200 Kg
  • -Wheel Diameter:- 125mm
  • -Wheel Material:- Cast Iron
  • -Tyre Material:- Red Polyurethane
  • -Tread Width:- 40mm
  • -Hub Length (unsleeved):- 40mm
  • -Hub Length (sleeved):-
  • -Bore Diameter (Unsleeved):- 17mm
  • -Sleeved Bore Diameter Options:-
  • -Sleeve Type:-
  • -Bearing Type:- Ball Bearings

Heavy Industrial red polyurethane scissor lift table wheel - fitted with ball bearings

-Delivery or in-store pickup available.


More Info
VUQ200 2000 Kg Polyurethane Wheel

Wheels

$329.55 (Incl. GST)
VUQ200 2000 Kg <span>Polyurethane Wheel</span>

VUQ200 2000 Kg Polyurethane Wheel

$329.55 (Incl. GST)

Technical Specifications

  • -Load Capacity- 2000 Kg
  • -Wheel Diameter- 203mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 75mm
  • -Hub Length (unsleeved)- 83mm
  • -Hub Length (sleeved)- 89mm
  • -Bore Diameter (Unsleeved)- 30mm
  • -Sleeved Bore Diameter Options- 19mm (3/4")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Very heavy duty polyurethane tyred cast iron wheel - fitted with ball bearings (supplied with 2 top hat spacers)

Related Options...


More Info
VUQ250 2000 Kg Polyurethane Wheel

Wheels

$376.65 (Incl. GST)
VUQ250 2000 Kg <span>Polyurethane Wheel</span>

VUQ250 2000 Kg Polyurethane Wheel

$376.65 (Incl. GST)

Technical Specifications

  • -Load Capacity- 2000 Kg
  • -Wheel Diameter- 254mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Polyurethane
  • -Tread Width- 75mm
  • -Hub Length (unsleeved)- 83mm
  • -Hub Length (sleeved)- 89mm
  • -Bore Diameter (Unsleeved)- 30mm
  • -Sleeved Bore Diameter Options- 19mm (3/4")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Very heavy duty polyurethane tyred cast iron wheel - fitted with ball bearings (supplied with 2 top hat spacers)

Related Options...


More Info
WCI150 250 Kg - HIGH TEMP Cast Iron Wheel

Wheels

$41.20 (Incl. GST)
WCI150 250 Kg - HIGH TEMP <span>Cast Iron Wheel</span>

WCI150 250 Kg - HIGH TEMP Cast Iron Wheel

$41.20 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Load Capacity- 250 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 48mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 61.3mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm (1/2")
  • -Sleeve Type- Spacer Tube
  • -Bearing Type- Plain

Heavy Industrial cast iron wheel only - plain bore (supplied with spacer sleeve)

Related Options...


More Info
WCI150 400 Kg Cast Iron Wheel

Wheels

$41.20 (Incl. GST)
WCI150 400 Kg <span>Cast Iron Wheel</span>

WCI150 400 Kg Cast Iron Wheel

$41.20 (Incl. GST)

Technical Specifications

  • -Load Capacity- 400 Kg
  • -Wheel Diameter- 150mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 48mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 61.3mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm (1/2")
  • -Sleeve Type- Spacer Tube
  • -Bearing Type- Plain

Heavy Industrial cast iron wheel only - plain bore (supplied with spacer sleeve)

Related Options...


More Info
WCI150/HZF 400 Kg Zinc Castor <span>Fixed Cast Iron 150mm x 50mm</span>

WCI150/HZF 400 Kg Zinc Castor Fixed Cast Iron 150mm x 50mm

$72.55 (Incl. GST)

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 400 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 189mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Heavier Industrial cast iron castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
WCI150/HZFHT 250 Kg Zinc Castor - HIGH TEMP <span>Fixed Cast Iron 150mm x 50mm</span>

WCI150/HZFHT 250 Kg Zinc Castor - HIGH TEMP Fixed Cast Iron 150mm x 50mm

$73.65 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Fixed
  • -Load Capacity- 250 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 189mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- N/A

Heavier Industrial cast iron castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
WCI150/OZP 400 Kg Zinc Castor <span>Swivel Cast Iron 150mm x 50mm</span>

WCI150/OZP 400 Kg Zinc Castor Swivel Cast Iron 150mm x 50mm

$78.05 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 400 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 189mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 121mm

Heavier Industrial cast iron castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
WCI150/OZPDL 400 Kg Zinc Castor <span>Swivel <strong>Direction Lock Only</strong> Cast Iron 150mm x 50mm</span>

WCI150/OZPDL 400 Kg Zinc Castor Swivel Direction Lock Only Cast Iron 150mm x 50mm

$89.05 (Incl. GST)

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 400 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 189mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 138mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavier Industrial cast iron castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
WCI150/OZPHT 250 Kg Zinc Castor - HIGH TEMP <span>Swivel Cast Iron 150mm x 50mm</span>

WCI150/OZPHT 250 Kg Zinc Castor - HIGH TEMP Swivel Cast Iron 150mm x 50mm

$83.55 (Incl. GST)

Technical Specifications - HIGH TEMP!

  • -Castor Type- Swivel
  • -Load Capacity- 250 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 189mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 121mm

Heavier Industrial cast iron castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option

More Info
XCQ100 450 Kg Cast Iron Wheel

Wheels

$41.15 (Incl. GST)
XCQ100 450 Kg <span>Cast Iron Wheel</span>

XCQ100 450 Kg Cast Iron Wheel

$41.15 (Incl. GST)

Technical Specifications

  • -Load Capacity- 450 Kg
  • -Wheel Diameter- 100mm
  • -Wheel Material- Cast Iron
  • -Tyre Material- Cast Iron
  • -Tread Width- 48mm
  • -Hub Length (unsleeved)- 60mm
  • -Hub Length (sleeved)- 61.3mm
  • -Bore Diameter (Unsleeved)- 20mm
  • -Sleeved Bore Diameter Options- 12.7mm (1/2")
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearings

Heavy Industrial cast iron wheel only - fitted with ball bearings (supplied with 2 top hat spacers)

Related Options...


More Info
