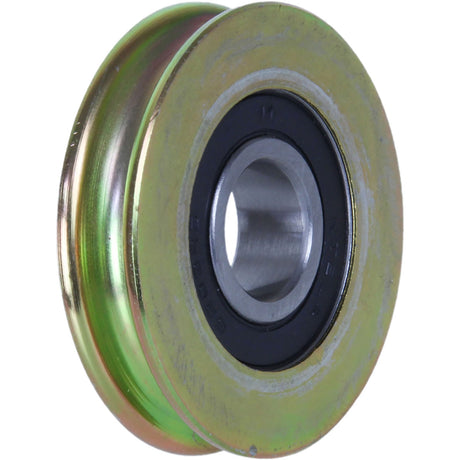

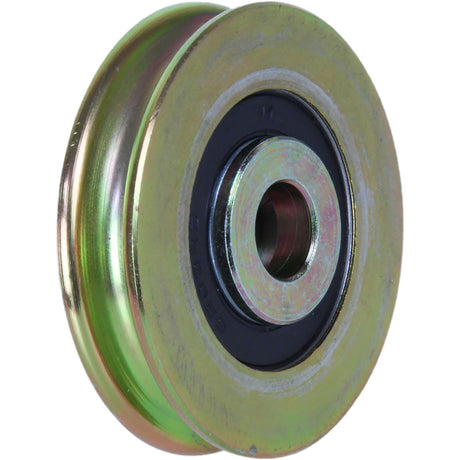

613 100 Kg 6mm Round Groove Wheel

Wheels

$25.90 (Incl. GST)
613 100 Kg 6mm <span>Round Groove Wheel</span>

613 100 Kg 6mm Round Groove Wheel

$25.90 (Incl. GST)

Technical Specifications

  • -Groove Type- 6mm Round Groove
  • -Load Capacity- 100 Kg
  • -Wheel Diameter- 60mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 13mm
  • -Groove Width- 6mm
  • -Groove Depth- 7mm
  • -Hub Length (unsleeved)- 12mm
  • -Hub Length (sleeved)- 17mm
  • -Bore Diameter (unsleeved)- 17mm
  • -Sleeved Bore Diameter Options- 12mm
  • -Sleeve Type- Top Hat Pair (Included)
  • -Bearing Type- Ball Bearing
  • -Axle Bolt/Nut Supplied? No

Machined steel rope groove pulley, suits 6mm wire rope.

Delivery or in-store pickup available.


More Info
618V 80 Kg V Groove Wheel

Wheels

$25.30 (Incl. GST)
618V 80 Kg <span>V Groove Wheel</span>

618V 80 Kg V Groove Wheel

$25.30 (Incl. GST)

Technical Specifications

  • -Groove Type- V Groove
  • -Load Capacity- 80 Kg
  • -Wheel Diameter- 60mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 18mm
  • -Groove Width- 12mm
  • -Groove Depth- 5mm
  • -Hub Length (unsleeved)- 14mm
  • -Hub Length (sleeved)- 24mm
  • -Bore Diameter (unsleeved)- 12mm
  • -Sleeved Bore Diameter Options- 10mm
  • -Sleeve Type- Top Hat Pair
  • -Bearing Type- Ball Bearing
  • -Axle Bolt/Nut Supplied? M10 x 45mm & Nut

Machined steel "V" groove wheel, for use with folded angle tracks.

Delivery or in-store pickup available.


More Info

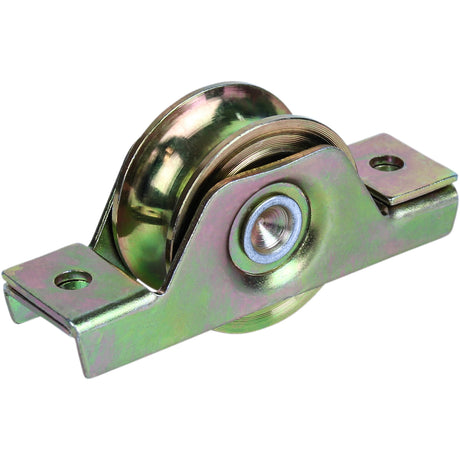

W60B 100 Kg 20mm Round Groove Sliding Gate Wheel

Sliding Gate Hardware

$22.00 (Incl. GST)
W60B 100 Kg 20mm <span>Round Groove Sliding Gate Wheel</span>

W60B 100 Kg 20mm Round Groove Sliding Gate Wheel

$22.00 (Incl. GST)

Technical Specifications

  • -Groove Type- 20mm Round Groove
  • -Load Capacity- 100 Kg
  • -Wheel Diameter- 60mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 26mm
  • -Groove Width- 20mm
  • -Groove Depth- 9mm
  • -Bearing Type- Ball Bearing
  • -Bracket Width- 34mm
  • -Bracket Length- 120mm
  • -Mounting hole Centres- 95mm
  • -Mounting hole size- 9mm
  • -Overall Height- 60mm

Machined steel "O" groove wheel fitted to recessed mount bracket . Suitable for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.


More Info
WV60B 100 Kg 20mm Round Groove Sliding Gate Wheel

Sliding Gate Hardware

$22.00 (Incl. GST)
WV60B 100 Kg 20mm <span>Round Groove Sliding Gate Wheel</span>

WV60B 100 Kg 20mm Round Groove Sliding Gate Wheel

$22.00 (Incl. GST)

Technical Specifications

  • -Groove Type- 20mm Round Groove
  • -Load Capacity- 100 Kg
  • -Wheel Diameter- 60mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 26mm
  • -Groove Width- 20mm
  • -Groove Depth- 9mm
  • -Bearing Type- Ball Bearing
  • -Bracket Width- 36mm
  • -Bracket Length- 100mm
  • -Mounting hole Centres- 67mm
  • -Mounting hole size- 9mm
  • -Overall Height- 66mm

Machined steel "O" groove wheel fitted to surface mount bracket . Suitable for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.
