100mm

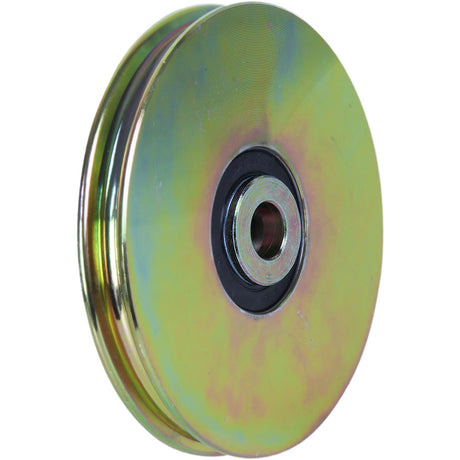

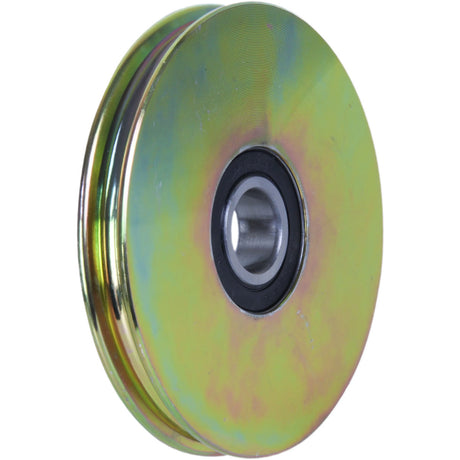

1013 100 Kg 6mm Round Groove Wheel

$37.40 (Incl. GST)

Technical Specifications

• -Groove Type- 6mm Round Groove
• -Load Capacity- 100 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 13mm
• -Groove Width- 6mm
• -Groove Depth- 7mm
• -Hub Length (unsleeved)- 12mm
• -Hub Length (sleeved)- 17mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12mm
• -Sleeve Type- Top Hat Pair (Included)
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? No

Machined steel rope groove pulley, suits 6mm wire rope.

Delivery or in-store pickup available.

1030O 300 Kg 20mm Round Groove Wheel

$71.95 (Incl. GST)

Technical Specifications

• -Groove Type- 20mm Round Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 21mm
• -Groove Depth- 9mm
• -Hub Length (unsleeved)- 22mm
• -Hub Length (sleeved)- 44mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 14mm
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? M14 x 70mm & Nut

Machined steel "O" round groove wheels, for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.

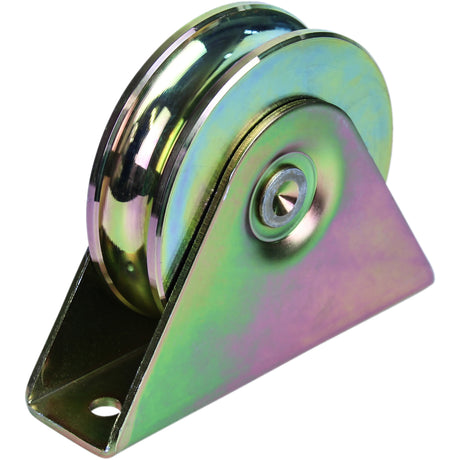

1030PCO 300 Kg 20mm Round Groove Sliding Gate Wheel

$80.95 (Incl. GST)

Technical Specifications

• -Groove Type- 20mm Round Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 22mm
• -Groove Depth- 9mm
• -Bearing Type- Ball Bearing
• -Bracket Width- 38mm
• -Bracket Length- 140mm
• -Mounting hole Centres- 108mm
• -Mounting hole size- 9mm
• -Overall Height- 106mm

Machined steel "O" groove wheel fitted to surface mount bracket . Suitable for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.

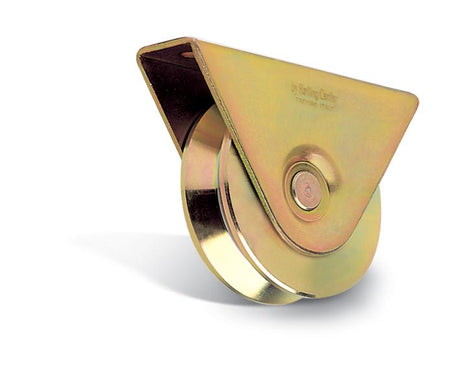

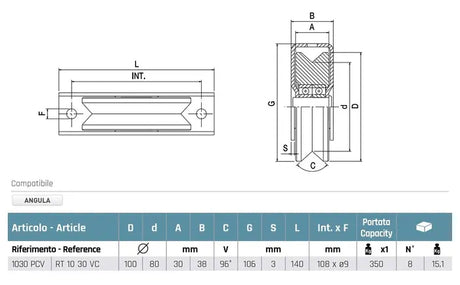

1030PCV 300 Kg V Groove Sliding Gate Wheel

$80.95 (Incl. GST)

Technical Specifications

• -Groove Type- V Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 22mm
• -Groove Depth- 9mm
• -Bearing Type- Ball Bearing
• -Bracket Width- 38mm
• -Bracket Length- 140mm
• -Mounting hole Centres- 108mm
• -Mounting hole size- 9mm
• -Overall Height- 106mm

Machined steel "V" groove wheel fitted to bracket. Suitable for running on folded angle tracks.

Delivery or in-store pickup available.

1030V 300 Kg V Groove Wheel

$71.95 (Incl. GST)

Technical Specifications

• -Groove Type- V Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 21mm
• -Groove Depth- 9mm
• -Hub Length (unsleeved)- 24mm
• -Hub Length (sleeved)- 44mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 14mm
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? M14 x 70mm & Nut

Machined steel "V" groove wheel, for use with folded angle tracks.

Delivery or in-store pickup available.

B-PATH100K-FK 200 Kg Zinc Castor Fixed P/U on Nylon 100mm x 32mm

$22.90 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 200 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 125mm
• -Axle Type- Bolted

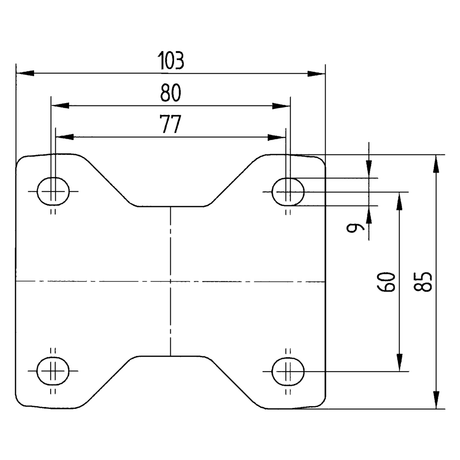

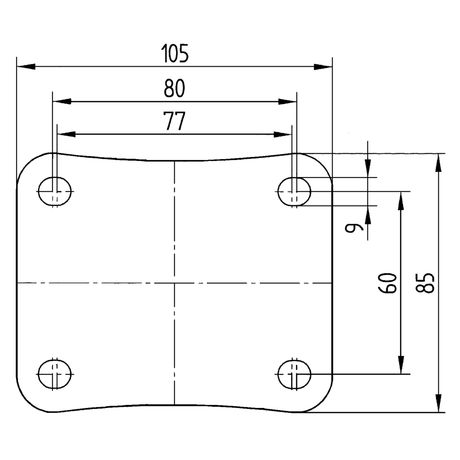

• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

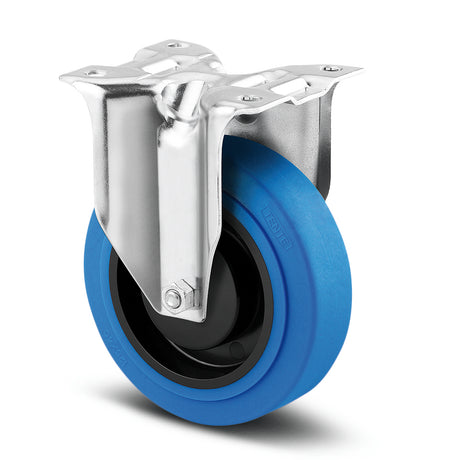

B-POEV102K-SB 150 Kg Zinc Castor Fixed Blue Rubber on Nylon 100mm x 35mm

$23.45 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 35mm
• -Overall Height- 126mm
• -Axle Type- Bolted

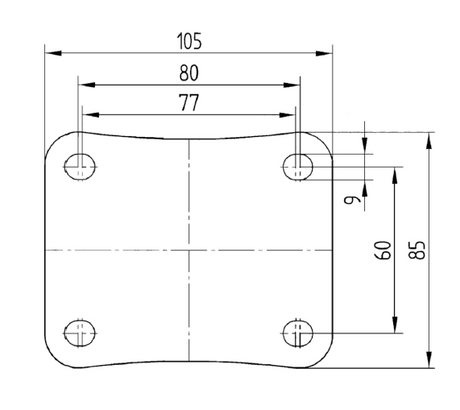

• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial blue rubber on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BP10050B 150 Kg Blue Rubber Wheel

$23.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Polypropylene
• -Tyre Material- Blue Rubber
• -Tread Width- 35mm
• -Hub Length (unsleeved)- 56mm
• -Hub Length (sleeved)- 62mm
• -Bore Diameter (Unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Ball Bearings

Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)

Delivery or in-store pickup available.

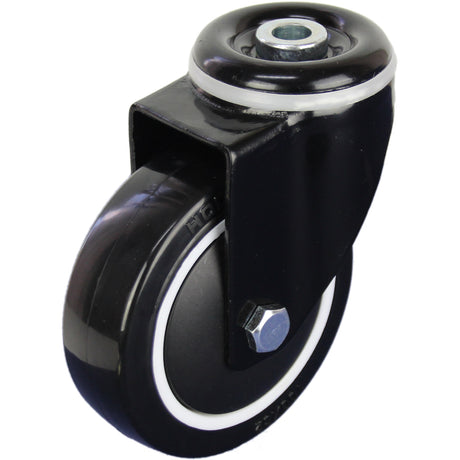

BPUQ100BH 140 Kg Black Series Castor Swivel Bolt Hole P/U on Nylon 100mm x 32mm

$21.25 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 140 Kg
• -Brake Type- N/A
• -Mounting Type- 13mm Bolt Hole
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 131mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- 13mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

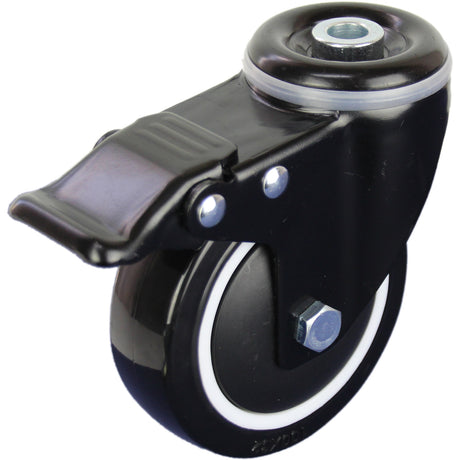

BPUQ100BHTB 140 Kg Black Series Castor Swivel Bolt Hole Total Brake P/U on Nylon 100mm x 32mm

$24.00 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 140 Kg
• -Brake Type- Total Brake
• -Mounting Type- 13mm Bolt Hole
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 131mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- 13mm
• -Swivel Radius (inc. brake if fitted)- 111mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

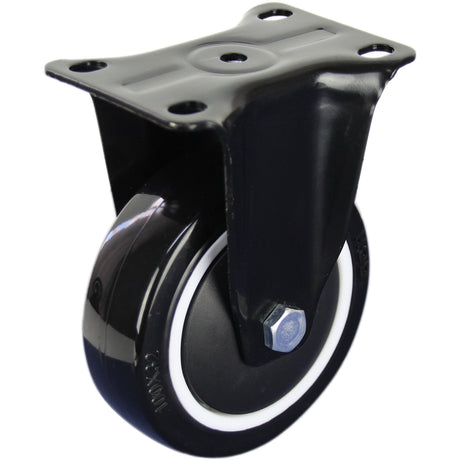

BPUQ100F 140 Kg Black Series Castor Fixed Plate P/U on Nylon 100mm x 32mm

$17.05 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 140 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 131mm
• -Axle Type- Bolted

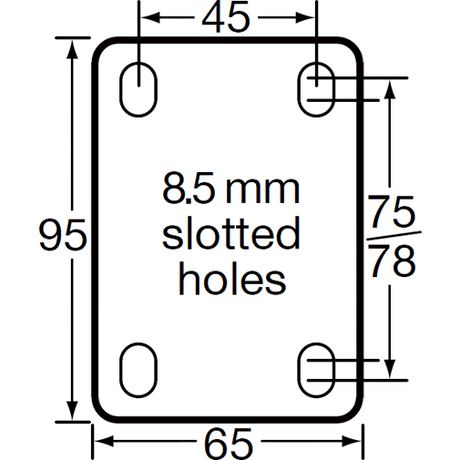

• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100S 140 Kg Black Series Castor Swivel Plate P/U on Nylon 100mm x 32mm

$21.25 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 140 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 131mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

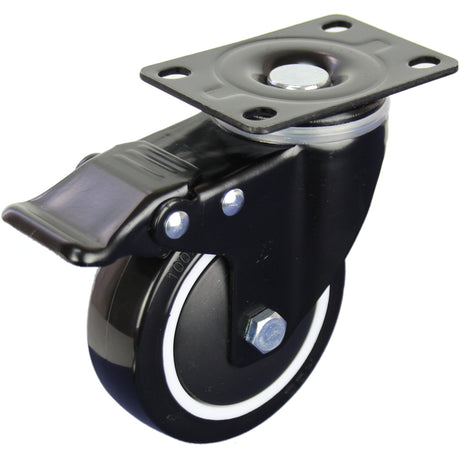

BPUQ100STB 140 Kg Black Series Castor Swivel Plate Total Brake P/U on Nylon 100mm x 32mm

$24.00 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 140 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 131mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 111mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

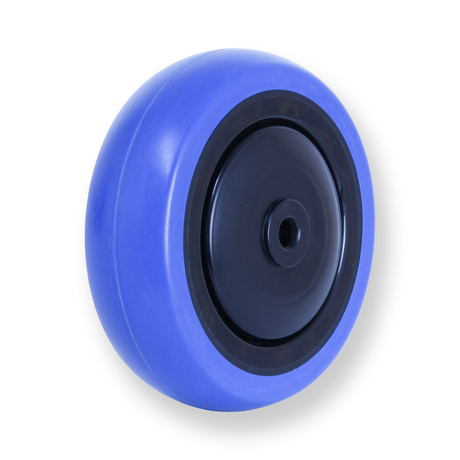

CBQ100G 100 Kg Blue Rubber Wheel

$15.60 (Incl. GST)

Technical Specifications

• -Load Capacity- 100 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 30mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)- 8mm
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- N/A
• -Bearing Type- Ball Bearings

Light Industrial blue rubber wheel only (fitted with ball bearings)

Related Options...

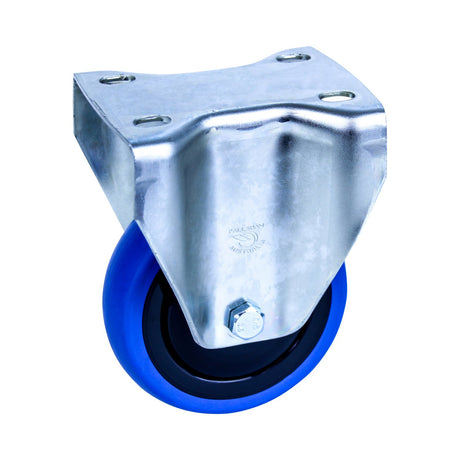

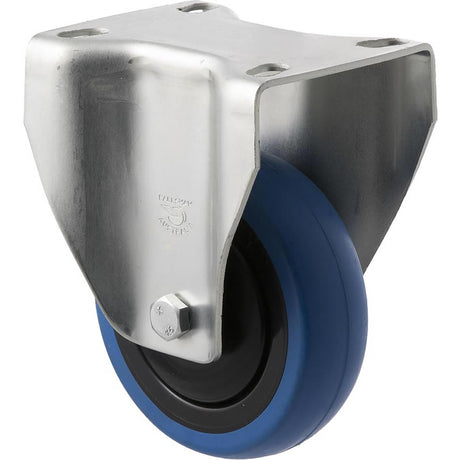

CBQ100G/MZF 100 Kg Zinc Castor Fixed Blue Rubber 100mm x 30mm

$25.00 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

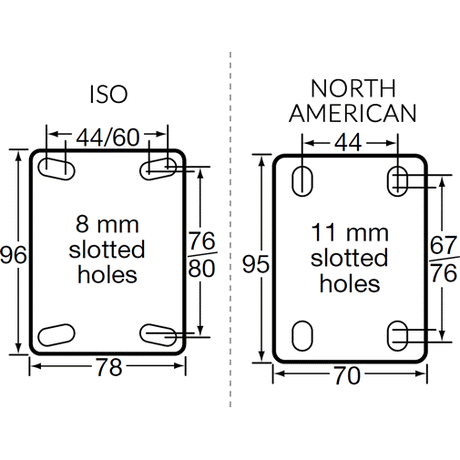

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $25.00 AUD North American - $25.00 AUD

Top Plate Option

ISO

North American

---

More Info

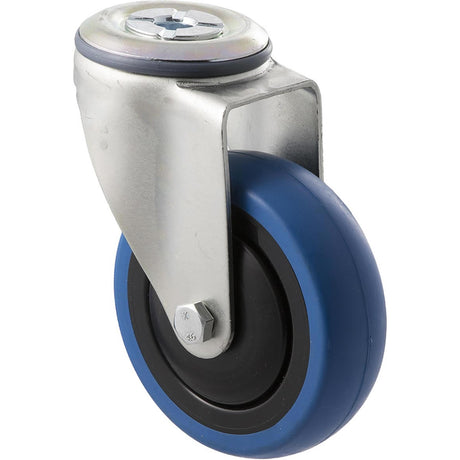

CBQ100G/MZH 100 Kg Zinc Castor Bolt-Hole Blue Rubber 100mm x 30mm

$29.75 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

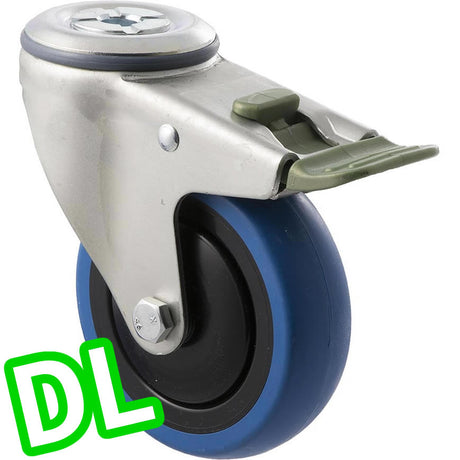

CBQ100G/MZHDL 100 Kg Zinc Castor Bolt-Hole Direction Lock Only Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

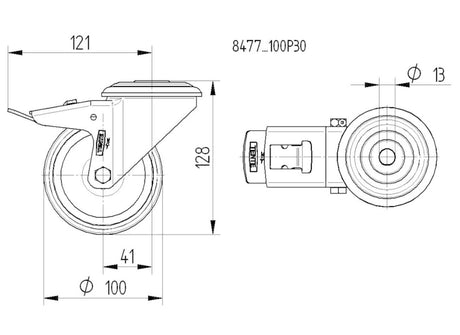

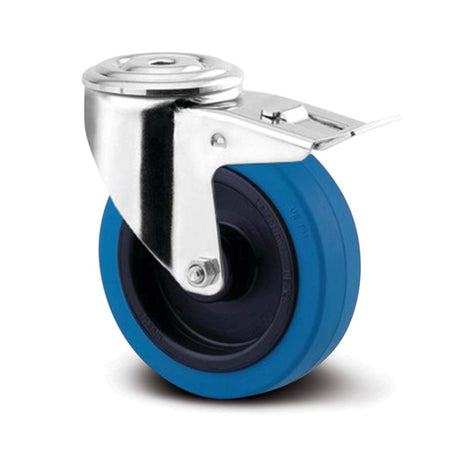

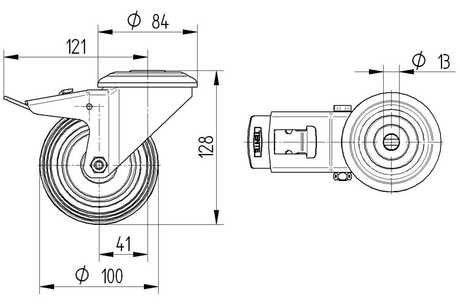

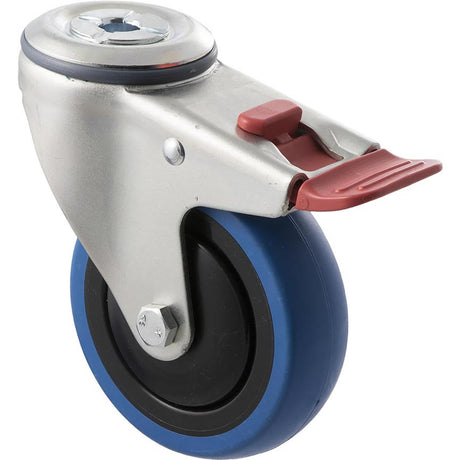

CBQ100G/MZHTB 100 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- Total Brake

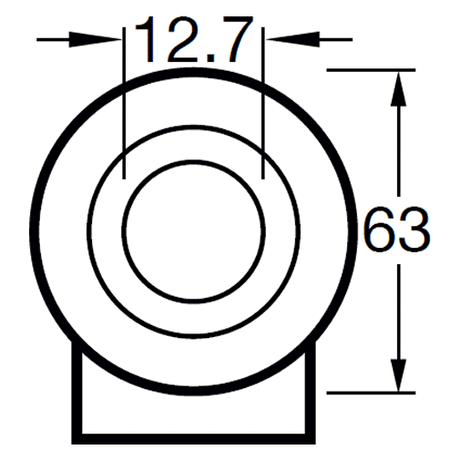

• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

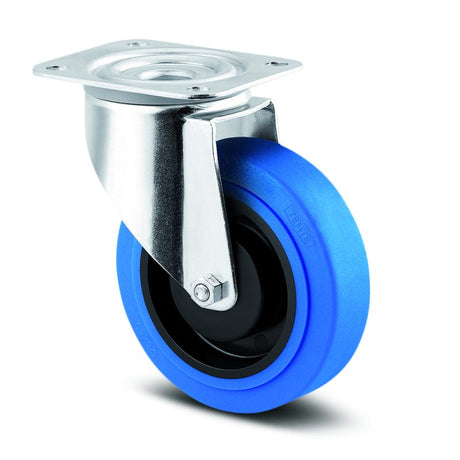

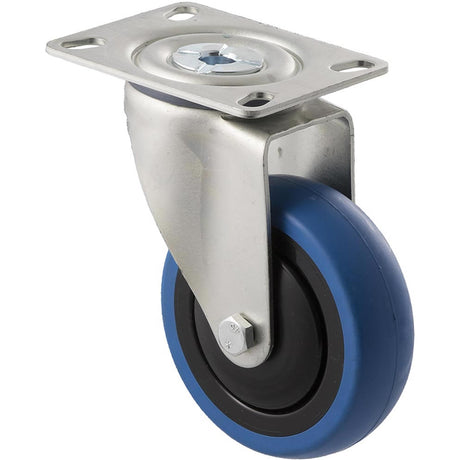

CBQ100G/MZP 100 Kg Zinc Castor Swivel Blue Rubber 100mm x 30mm

$29.75 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 100 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $29.75 AUD North American - $29.75 AUD

Top Plate Option

ISO

North American

---

More Info

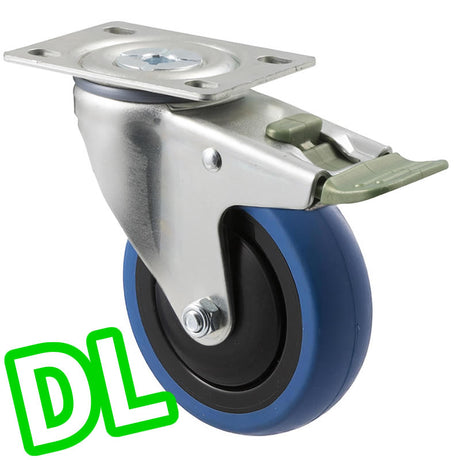

CBQ100G/MZPDL 100 Kg Zinc Castor Swivel Direction Lock Only Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 100 Kg
• -Brake Type- Direction Only
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $37.45 AUD North American - $37.45 AUD

Top Plate Option

ISO

North American

---

More Info

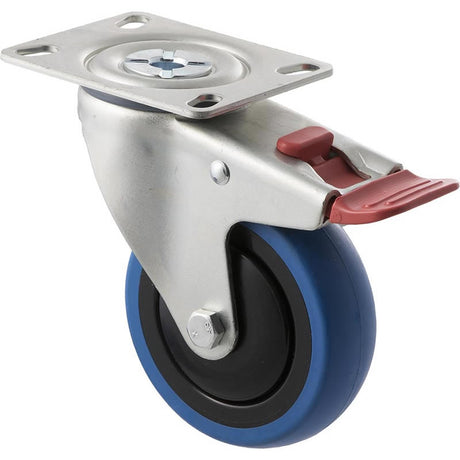

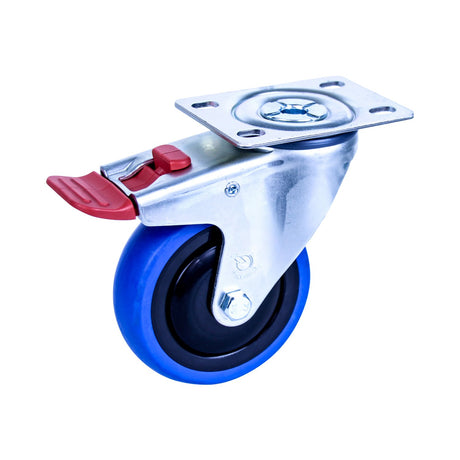

CBQ100G/MZPTB 100 Kg Zinc Castor Swivel Total Brake Blue Rubber 100mm x 30mm

$37.45 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 100 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $37.45 AUD North American - $37.45 AUD

Top Plate Option

ISO

North American

---

More Info

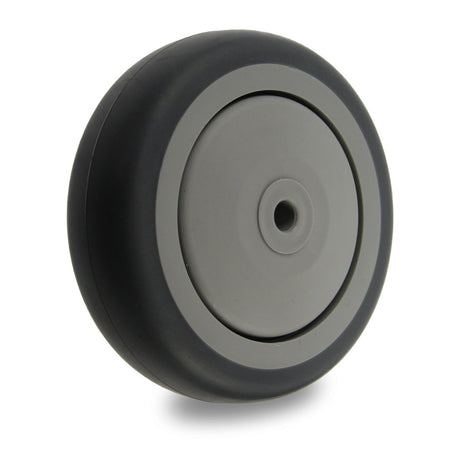

GRQ100 100 Kg 100mmGrey Rubber Wheel

$13.20 (Incl. GST)

Technical Specifications

• -Load Capacity- 100 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Nylon
• -Tyre Material- Grey Rubber
• -Tread Width- 31mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)- 8mm
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- Spacer Tube
• -Bearing Type- Ball Bearing

Medium duty grey rubber tyre wheel only - ball bearing w/ thread guards

Delivery or in-store pickup available.

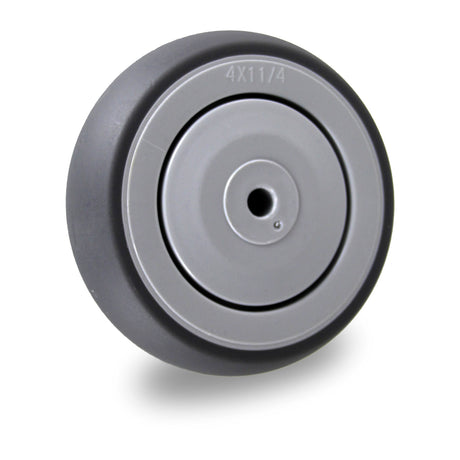

GRQ100SS 100 Kg 100mmGrey Rubber Wheel - Stainless Steel

$19.35 (Incl. GST)

Technical Specifications

• -Load Capacity- 100 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Nylon
• -Tyre Material- Grey Rubber
• -Tread Width- 31mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)- 8mm
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- Spacer Tube
• -Bearing Type- S/S Ball Bearing

Medium duty grey rubber tyre wheel only - stainless steel ball bearing w/ thread guards

Delivery or in-store pickup available.

HIN4F-CIPU 280 Kg Zinc Castor Fixed P/U on Cast Iron 100mm x 50mm

$31.80 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 280 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 50mm
• -Overall Height- 144mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- N/A

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

HIN4S-CIPU 280 Kg Zinc Castor Swivel P/U on Cast Iron 100mm x 50mm

$35.85 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 280 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 50mm
• -Overall Height- 144mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- 81mm

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

HIN4SB-CIPU 280 Kg Zinc Castor Swivel Total Brake P/U on Cast Iron 100mm x 50mm

$44.65 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 280 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 50mm
• -Overall Height- 144mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- 129mm

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

HUA100 300 Kg Polyurethane Wheel

$29.40 (Incl. GST)

Technical Specifications

• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Polyurethane
• -Tread Width- 40mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Heavy Industrial polyurethane tyred nylon wheel - plain bore (supplied with spacer sleeve)

(HUR100 shown in photograph)

HUA100S 300 Kg Polyurethane Wheel

$35.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Polyurethane
• -Tread Width- 40mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 13mm
• -Sleeve Type- S/S Spacer Tube
• -Bearing Type- Plain

Heavy Industrial polyurethane tyred nylon wheel - plain bore (supplied with S/S spacer sleeve)

(HUR100 shown in photograph)

HUR100 300 Kg Polyurethane Wheel

$29.40 (Incl. GST)

Technical Specifications

• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Polyurethane
• -Tread Width- 40mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Roller Bearings

Heavy Industrial polyurethane tyred nylon wheel - roller bearing fitted (supplied with spacer sleeve)

Related Options...

HUR100/HZF 300 Kg Zinc Castor Fixed P/U on Nylon 100mm x 40mm

$54.90 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 300 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Heavy Industrial polyurethane castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $54.90 AUD North American - $54.90 AUD

Top Plate Option

ISO

North American

---

More Info

HUR100/OZP 300 Kg Zinc Castor Swivel P/U on Nylon 100mm x 40mm

$60.40 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 300 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 96mm

Heavy Industrial polyurethane castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $60.40 AUD North American - $60.40 AUD

Top Plate Option

ISO

North American

---

More Info

HUR100/OZPDL 300 Kg Zinc Castor Swivel Direction Lock Only P/U on Nylon 100mm x 40mm

$71.40 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 300 Kg
• -Brake Type- Direction Only
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 140mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavy Industrial polyurethane castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $71.40 AUD North American - $71.40 AUD

Top Plate Option

ISO

North American

---

More Info

HUR100/OZPTB 300 Kg Zinc Castor Swivel Total Brake P/U on Nylon 100mm x 40mm

$71.40 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 300 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 140mm

Heavy Industrial polyurethane castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

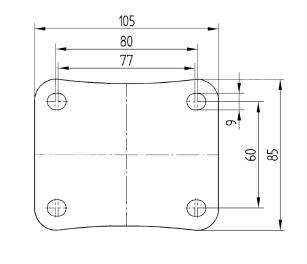

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $71.40 AUD North American - $71.40 AUD

Top Plate Option

ISO

North American

---

More Info

HUS100 300 Kg Polyurethane Wheel

$40.40 (Incl. GST)

Technical Specifications

• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Polyurethane
• -Tread Width- 40mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 13mm
• -Sleeve Type- S/S Spacer Tube
• -Bearing Type- S/S Roller

Heavy Industrial polyurethane tyred nylon wheel -S/S roller bearing fitted (supplied with S/S spacer sleeve)

Related Options...

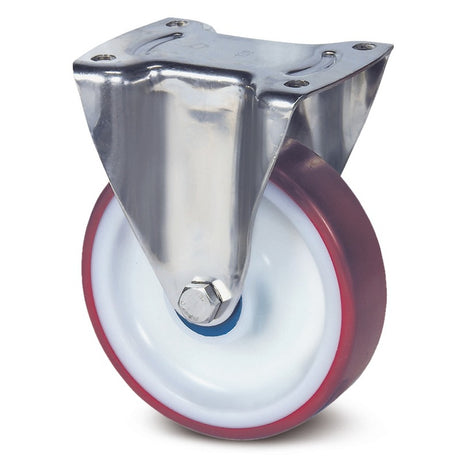

HUS100/OSF 300 Kg Stainless Steel Castor Fixed P/U on Nylon 100mm x 40mm

$102.45 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 300 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- S/S Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Heavier industrial stainless steel polyurethane castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.

Related Options...

HUS100/OSP 300 Kg Stainless Steel Castor Swivel P/U on Nylon 100mm x 40mm

$102.45 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 300 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- S/S Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 96mm

Heavier industrial stainless steel polyurethane castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.

Related Options...

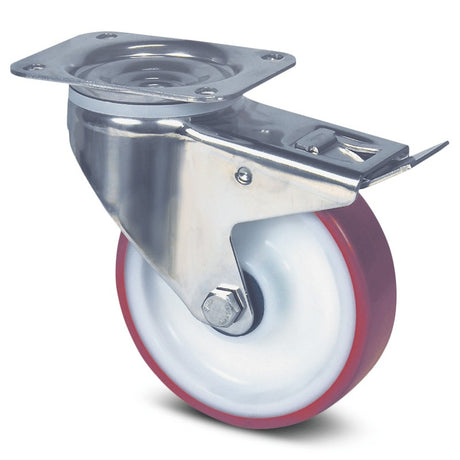

HUS100/OSPTB 300 Kg Stainless Steel Castor Swivel Total Brake P/U on Nylon 100mm x 40mm

$118.95 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 300 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- S/S Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 40mm
• -Overall Height- 138mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 140mm

Heavier industrial stainless steel polyurethane castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.

Related Options...

JBA100 150 Kg Blue Rubber Wheel

$16.75 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 33mm
• -Hub Length (unsleeved)- 45mm
• -Hub Length (sleeved)- 46mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 10mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Medium Industrial blue rubber tyred nylon wheel - plain bore (supplied with spacer sleeve)

JBR100 150 Kg Blue Rubber Wheel

$16.75 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 33mm
• -Hub Length (unsleeved)- 45mm
• -Hub Length (sleeved)- 46mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 10mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Roller Bearings

Medium Industrial blue rubber tyred nylon wheel - roller bearing fitted (supplied with spacer sleeve)

Related Options...

JBR100/JZF 150 Kg Zinc Castor Fixed Blue Rubber 100mm x 32mm

$27.95 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZH 150 Kg Zinc Castor Bolt-Hole Blue Rubber 100mm x 32mm

$36.20 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 100mm x 32mm

$46.10 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZP 150 Kg Zinc Castor Swivel Blue Rubber 100mm x 32mm

$36.20 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

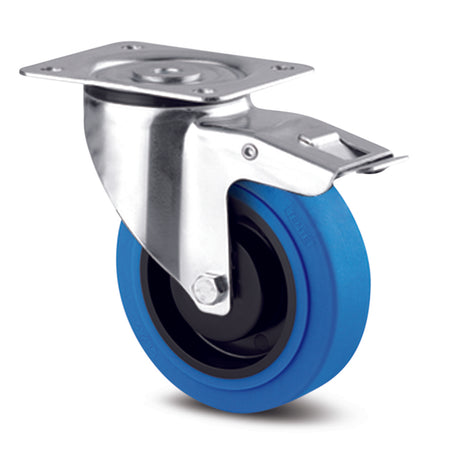

JBR100/JZPTB 150 Kg Zinc Castor Swivel Total Brake Blue Rubber 100mm x 32mm

$46.10 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JCI100 230 Kg Cast Iron Wheel

$26.60 (Incl. GST)

Technical Specifications

• -Load Capacity- 230 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Cast Iron
• -Tyre Material- Cast Iron
• -Tread Width- 38mm
• -Hub Length (unsleeved)- 45mm
• -Hub Length (sleeved)- 46.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 10mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Medium Industrial cast iron wheel only - plain bore (supplied with spacer sleeve) HI TEMP suitable.

Related Options...

JCI100/JZF 230 Kg Zinc Castor Fixed Cast Iron 100mm x 38mm

$39.55 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 230 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 38mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JCI100/JZH 230 Kg Zinc Castor Bolt-Hole Cast Iron 100mm x 38mm

$47.80 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 230 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 38mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Related Options...

JCI100/JZP 230 Kg Zinc Castor Swivel Cast Iron 100mm x 38mm

$47.80 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 230 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 38mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Related Options...
