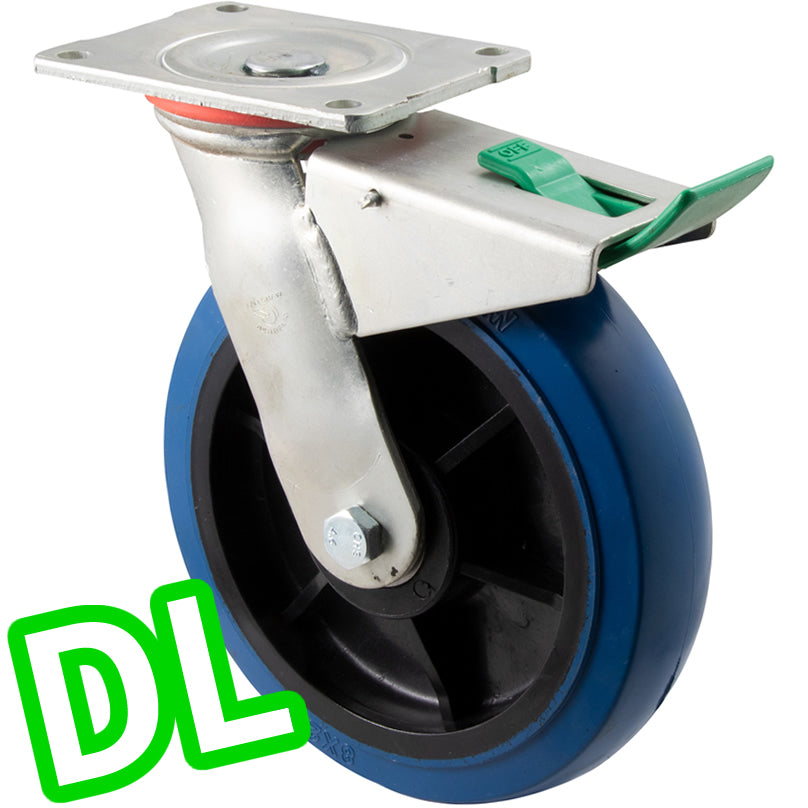

OBQ200/HZPDL - H SERIES 400 Kg Swivel Plate Direction Lock Only 200mm Blue Rubber

Product Description

Technical Specifications

• Castor Type: Swivel
• Load Capacity: 400 Kg
• Brake Type:Direction Only
• Mounting Type: Plate
• Wheel Material: Blue Rubber
• Wheel Bearing Type: Ball Bearing
• Thread Guard Fitted?: No
• Frame Finish: Zinc
• Wheel Diameter X Tread Width: 200mm x 45mm
• Overall Height: 238mm
• Axle Type: Bolted
• Swivel Radius (Inc. Brake If Fitted): 162mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavy (fabricated) industrial blue rubber castor. General use including heavy trolleys, engineering, transport and factories.
