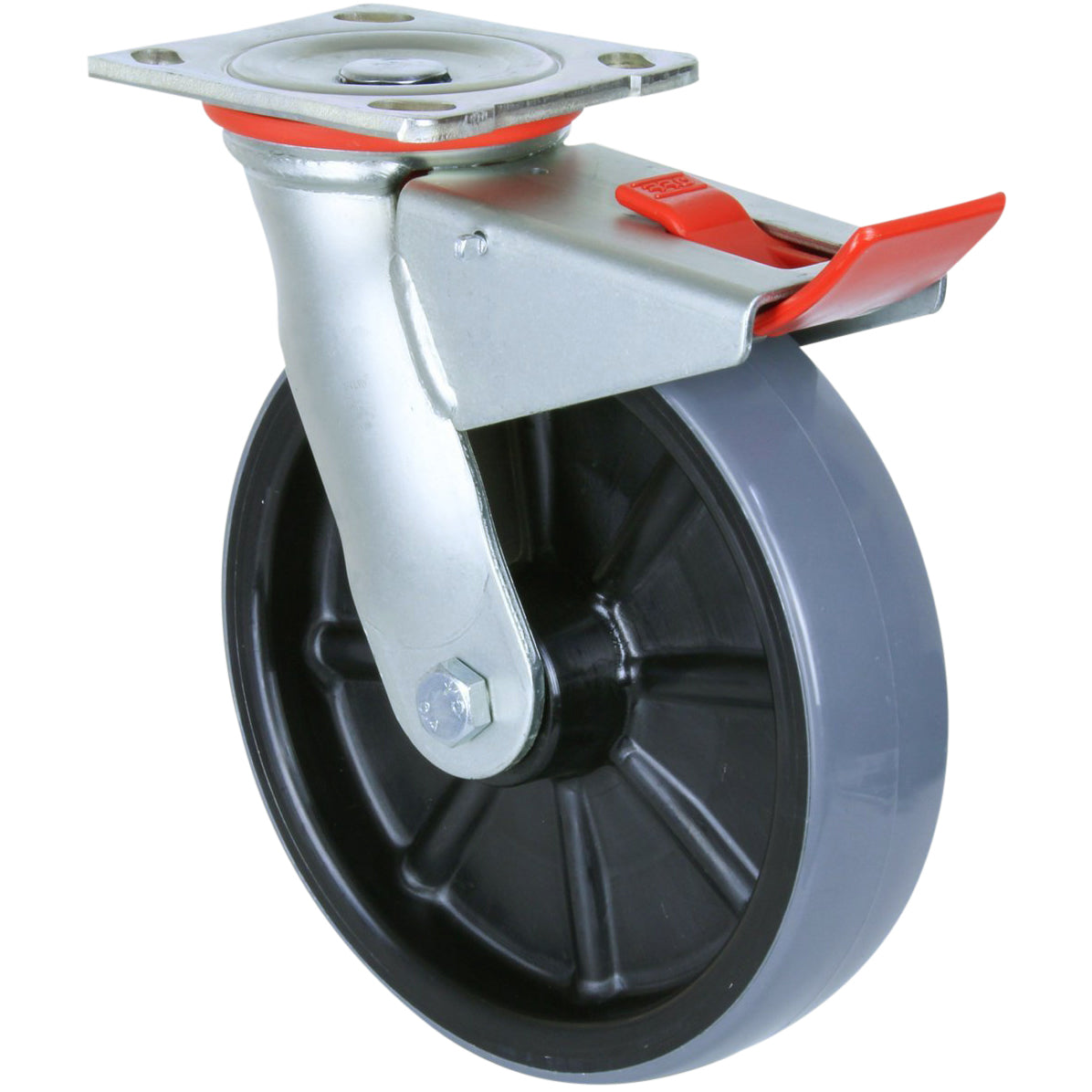

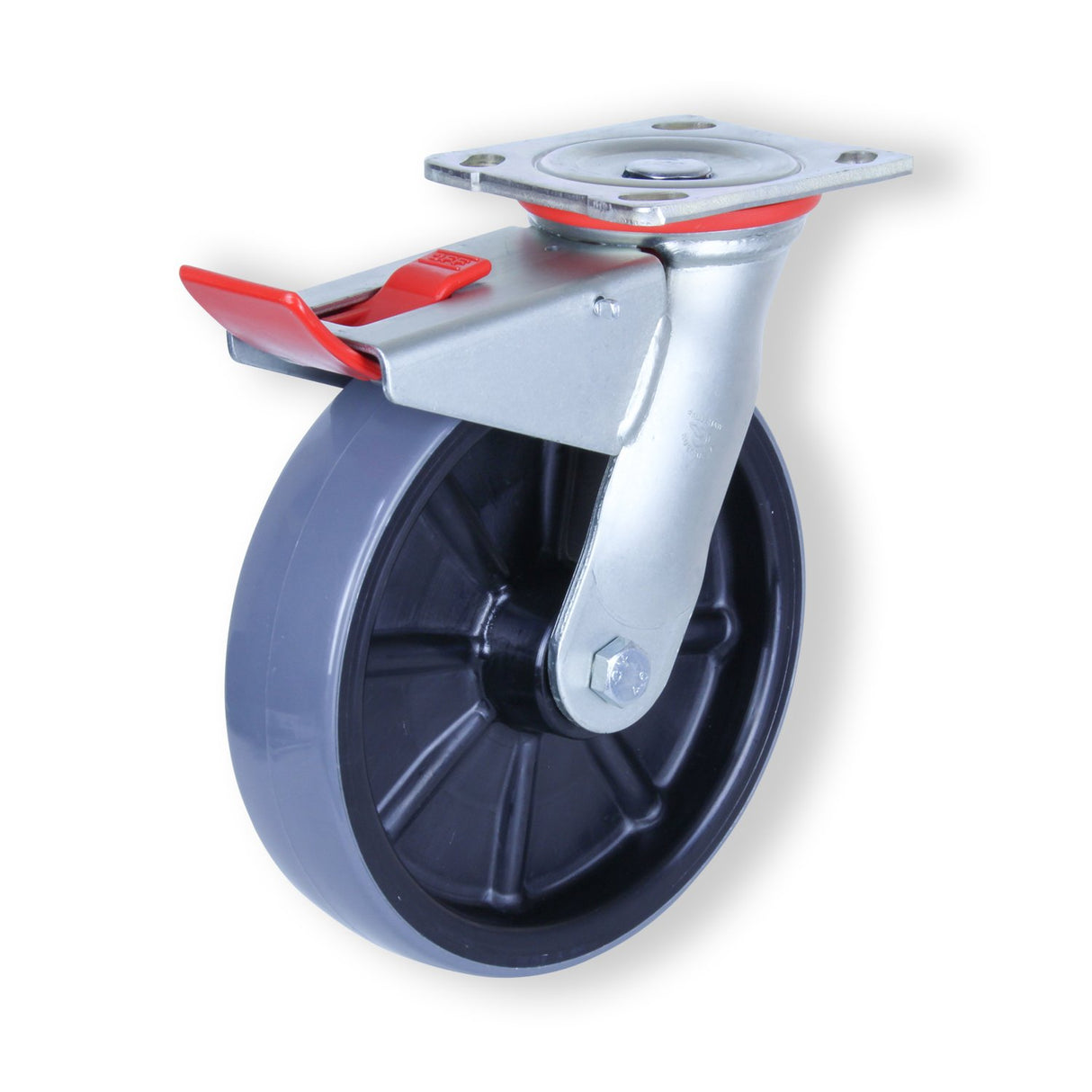

HUR200/HZPTB - H SERIES 500 kg Swivel Plate Total Brake 200mm Polyurethane
Shipping calculated at checkout.
HUR200/HZPTB - H SERIES 500 kg Swivel Plate Total Brake 200mm Polyurethane - ISO is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
HUR200/HZPTB - H SERIES 500 kg Swivel Plate Total Brake 200mm Polyurethane - ISO is backordered and will ship as soon as it is back in stock.
-
Castor TypeSwivel Total Brake
-
Capacity500 kg
-
Overall Height238 mm
- Wheel
-
Wheel Diameter200 mm
-
Tread Width50 mm
-
Wheel MaterialNylon
-
Tread MaterialPolyurethane
-
Axle TypeBolted
- Frame
-
Frame FinishZinc
- Bearing
-
TypeNeedle Roller
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 500 kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: P/U on Nylon
- Wheel Bearing Type: Needle Roller
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 238mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 162mm
Heavy (fabricated) industrial polyurethane castor. General use including heavy trolleys, engineering, transport and factories.
Related Options..

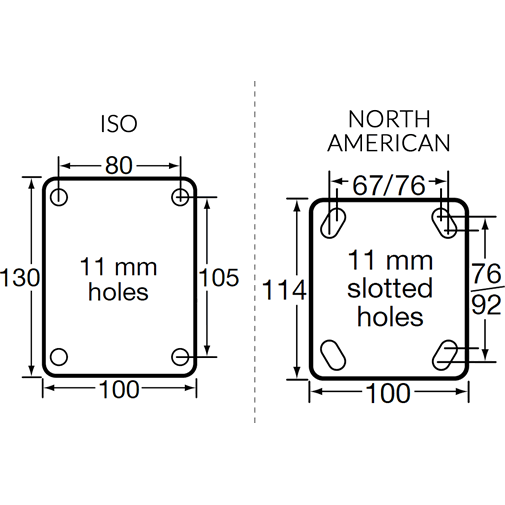

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!



Data Sheet PDF
Mounting Solutions
