150kg

B-POEV102K-SB 150 Kg Zinc Castor Fixed Blue Rubber on Nylon 100mm x 35mm

$23.45 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 35mm
• -Overall Height- 126mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial blue rubber on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BP10050B 150 Kg Blue Rubber Wheel

$23.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Polypropylene
• -Tyre Material- Blue Rubber
• -Tread Width- 35mm
• -Hub Length (unsleeved)- 56mm
• -Hub Length (sleeved)- 62mm
• -Bore Diameter (Unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Ball Bearings

Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)

Delivery or in-store pickup available.

F650X8SB10 150 Kg Puncture Proof Pneumatic Wheel

$119.45 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Nominal Wheel Diameter- 390mm
• -Nominal Tread Width- 130mm
• -Tyre Type & Tread Style- Black Turf Pattern, Solid MCP Tyre
• -Ply Rating- N/A
• -Rim Diameter- 8"
• -Rim Material- Red Metal
• -Rim Style- 1 piece
• -Boss Width- 102mm
• -Hub Type- Central
• -Bore Diameter- 1"
• -Bearing Type- Precision sealed ball bearing

Puncture-proof hand-trolley wheel fitted with a black polyurethane foam tyre. Convenient and low maintenance - no need to regularly check tyre pressures. Ideal for locations such as building sites, farms and workshops or anywhere a compressed air supply is not available, or where there is a risk of punctures from nails, glass or other sharp objects.

Budget MCP foam "pneumatic type" wheels - NO air - No punctures. Not suitable for static loads.

Delivery or in-store pickup available.

F650X8SB20 150 Kg Puncture Proof Pneumatic Wheel

$128.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Nominal Wheel Diameter- 390mm
• -Nominal Tread Width- 130mm
• -Tyre Type & Tread Style- Black Turf Pattern, Solid MCP Tyre
• -Ply Rating- N/A
• -Rim Diameter- 8"
• -Rim Material- Red Metal
• -Rim Style- 1 piece
• -Boss Width- 106mm
• -Hub Type- Central
• -Bore Diameter- 1" Reduced to 20mm
• -Bearing Type- Precision sealed ball bearing, 1 " bearing shown

Puncture-proof hand-trolley wheel fitted with a black polyurethane foam tyre. Convenient and low maintenance - no need to regularly check tyre pressures. Ideal for locations such as building sites, farms and workshops or anywhere a compressed air supply is not available, or where there is a risk of punctures from nails, glass or other sharp objects.

Budget MCP foam "pneumatic type" wheels - NO air - No punctures. Not suitable for static loads.

Delivery or in-store pickup available.

F650X8SB34 150 Kg Puncture Proof Pneumatic Wheel

$128.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Nominal Wheel Diameter- 390mm
• -Nominal Tread Width- 130mm
• -Tyre Type & Tread Style- Black Turf Pattern, Solid MCP Tyre
• -Ply Rating- N/A
• -Rim Diameter- 8"
• -Rim Material- Red Metal
• -Rim Style- 1 piece
• -Boss Width- 106mm
• -Hub Type- Central
• -Bore Diameter- 1" Reduced to 3/4"
• -Bearing Type- Precision sealed ball bearing, 1 " bearing shown

Puncture-proof hand-trolley wheel fitted with a black polyurethane foam tyre. Convenient and low maintenance - no need to regularly check tyre pressures. Ideal for locations such as building sites, farms and workshops or anywhere a compressed air supply is not available, or where there is a risk of punctures from nails, glass or other sharp objects.

Budget MCP foam "pneumatic type" wheels - NO air - No punctures. Not suitable for static loads.

Delivery or in-store pickup available.

F650X8SB58 150 Kg Puncture Proof Pneumatic Wheel

$128.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Nominal Wheel Diameter- 390mm
• -Nominal Tread Width- 130mm
• -Tyre Type & Tread Style- Black Turf Pattern, Solid MCP Tyre
• -Ply Rating- N/A
• -Rim Diameter- 8"
• -Rim Material- Red Metal
• -Rim Style- 1 piece
• -Boss Width- 106mm
• -Hub Type- Central
• -Bore Diameter- 1" Reduced to 5/8"
• -Bearing Type- Precision sealed ball bearing, 1 " bearing shown

Puncture-proof hand-trolley wheel fitted with a black polyurethane foam tyre. Convenient and low maintenance - no need to regularly check tyre pressures. Ideal for locations such as building sites, farms and workshops or anywhere a compressed air supply is not available, or where there is a risk of punctures from nails, glass or other sharp objects.

Budget MCP foam "pneumatic type" wheels - NO air - No punctures. Not suitable for static loads.

Delivery or in-store pickup available.

JBA100 150 Kg Blue Rubber Wheel

$16.75 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 33mm
• -Hub Length (unsleeved)- 45mm
• -Hub Length (sleeved)- 46mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 10mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Medium Industrial blue rubber tyred nylon wheel - plain bore (supplied with spacer sleeve)

JBR100 150 Kg Blue Rubber Wheel

$16.75 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 33mm
• -Hub Length (unsleeved)- 45mm
• -Hub Length (sleeved)- 46mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 10mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Roller Bearings

Medium Industrial blue rubber tyred nylon wheel - roller bearing fitted (supplied with spacer sleeve)

Related Options...

JBR100/JZF 150 Kg Zinc Castor Fixed Blue Rubber 100mm x 32mm

$27.95 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZH 150 Kg Zinc Castor Bolt-Hole Blue Rubber 100mm x 32mm

$36.20 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 100mm x 32mm

$46.10 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZP 150 Kg Zinc Castor Swivel Blue Rubber 100mm x 32mm

$36.20 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

JBR100/JZPTB 150 Kg Zinc Castor Swivel Total Brake Blue Rubber 100mm x 32mm

$46.10 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber
• -Wheel Bearing Type- Needle Roller
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 129mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Related Options...

Jockey Wheel 6 Inch 150 Kg Replacement Black Rubber Wheel

$22.55 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Black Rubber
• -Tyre Material- Black Rubber
• -Tread Width- 36mm
• -Hub Length (unsleeved)- 50mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)- 12.7mm
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- N/A
• -Bearing Type- Plain

Replacement jockey wheel - plain bore

Delivery or in-store pickup available.

LE-POEV102K-FI-SB 150 Kg Zinc Castor Swivel Total Brake Blue Rubber on Nylon 100mm x 35mm

$36.70 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 35mm
• -Overall Height- 126mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- 110mm

Light industrial blue rubber on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

LE-POEV102K-SB 150 Kg Zinc Castor Swivel Blue Rubber on Nylon 100mm x 35mm

$29.30 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 35mm
• -Overall Height- 126mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- 83mm

Light industrial blue rubber on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

LKPA-VSTH50K 150 Kg Zinc Castor Swivel P/U on Steel 50mm x 33mm

$42.80 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Steel
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 50mm x 33mm
• -Overall Height- 73mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 90mm x 66mm
• -Mounting Plate Hole Centres- 75mm x 45mm/61mm x 51mm
• -Mounting Plate Hole Diameter- 8mm
• -Swivel Radius (inc. brake if fitted)- 54mm

Heavy duty low profile polyurethane castor. Suitable for use for very low mount height applications - were a non-marking wheel is required.

High quality Blickle product - Made in Germany.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

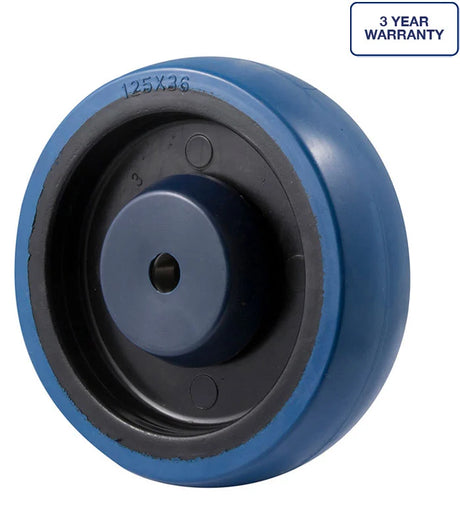

MBQ125G 150 Kg Blue Rubber Wheel

$18.95 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 125mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)- 8mm
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- N/A
• -Bearing Type- Ball Bearings

Medium Industrial blue rubber tyred nylon wheel - fitted with ball bearings

Related Options...

MNN100 150 Kg Black Nylon Wheel

$10.45 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Black Nylon
• -Tyre Material- Black Nylon
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- 41.3mm
• -Bore Diameter (Unsleeved)- 12mm
• -Sleeved Bore Diameter Options- 8mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Light Industrial black nylon wheel only - plain bore (supplied with spacer sleeve)

Related Options...

MNN100/MZF 150 Kg Zinc Castor Fixed Black Nylon 100mm x 30mm

$19.80 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $19.80 AUD North American - $19.80 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100/MZH 150 Kg Zinc Castor Bolt-Hole Black Nylon 100mm x 32mm

$24.60 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100/MZHDL 150 Kg Zinc Castor Bolt-Hole Direction Lock Only Black Nylon 100mm x 32mm

$32.30 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100/MZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 100mm x 32mm

$32.30 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100/MZP 150 Kg Zinc Castor Swivel Black Nylon 100mm x 32mm

$24.60 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $24.60 AUD North American - $24.60 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100/MZPDL 150 Kg Zinc Castor Swivel Direction Lock Only Black Nylon 100mm x 32mm

$32.30 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $32.30 AUD North American - $32.30 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100/MZPTB 150 Kg Zinc Castor Swivel Total Brake Black Nylon 100mm x 32mm

$32.30 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $32.30 AUD North American - $32.30 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100W 150 Kg White Nylon Wheel

$10.35 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- White Nylon
• -Tyre Material- White Nylon
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- 41.3mm
• -Bore Diameter (Unsleeved)- 12mm
• -Sleeved Bore Diameter Options- 8mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Light Industrial white nylon wheel only - plain bore (supplied with spacer sleeve)

Related Options...

MNN100W/MZF 150 Kg Zinc Castor Fixed Black Nylon 100mm x 32mm

$19.70 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $19.70 AUD North American - $19.70 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100W/MZH 150 Kg Zinc Castor Bolt-Hole White Nylon 100mm x 32mm

$24.45 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100W/MZHDL 150 Kg Zinc Castor Bolt-Hole Direction Lock Only White Nylon 100mm x 32mm

$32.15 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100W/MZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake White Nylon 100mm x 32mm

$32.15 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN100W/MZP 150 Kg Zinc Castor Swivel Black Nylon 100mm x 32mm

$24.45 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $24.45 AUD North American - $24.45 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100W/MZPDL 150 Kg Zinc Castor Swivel Direction Lock Only White Nylon 100mm x 32mm

$32.15 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- Plate
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $32.15 AUD North American - $32.15 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100W/MZPTB 150 Kg Zinc Castor Swivel Total Brake White Nylon 100mm x 32mm

$32.15 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $32.15 AUD North American - $32.15 AUD

Top Plate Option

ISO

North American

---

More Info

MNN100WS 150 Kg White Nylon Wheel

$12.70 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- White Nylon
• -Tyre Material- White Nylon
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- 41.3mm
• -Bore Diameter (Unsleeved)- 12mm
• -Sleeved Bore Diameter Options- 8mm
• -Sleeve Type- S/S Spacer Tube
• -Bearing Type- Plain

Light Industrial white nylon wheel only - plain bore (supplied with S/S spacer sleeve)

Related Options...

MNN100WS/MSF 150 Kg Stainless Steel Castor Fixed White Nylon 100mm x 32mm

$40.75 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain S/S Bush
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments

Related Options...

MNN100WS/MSH 150 Kg Stainless Steel Castor Bolt-Hole White Nylon 100mm x 32mm

$55.15 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain S/S Bush
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments

Related Options...

MNN100WS/MSHTB 150 Kg Stainless Steel Castor Bolt-Hole Total Brake White Nylon 100mm x 32mm

$63.95 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain S/S Bush
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments

Related Options...

MNN100WS/MSP 150 Kg Stainless Steel Castor Swivel White Nylon 100mm x 32mm

$55.15 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain S/S Bush
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments

Related Options...

MNN100WS/MSPTB 150 Kg Stainless Steel Castor Swivel Total Brake White Nylon 100mm x 32mm

$63.95 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- White Nylon
• -Wheel Bearing Type- Plain S/S Bush
• -Thread guard Fitted?- No
• -Frame Finish- Stainless Steel
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments

Related Options...

MNN125 150 Kg Black Nylon Wheel

$13.10 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 125mm
• -Wheel Material- Black Nylon
• -Tyre Material- Black Nylon
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 40mm
• -Hub Length (sleeved)- 41.3mm
• -Bore Diameter (Unsleeved)- 12mm
• -Sleeved Bore Diameter Options- 8mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Light Industrial black nylon wheel only - plain bore (supplied with spacer sleeve)

Related Options...

MNN125/MZF 150 Kg Zinc Castor Fixed Black Nylon 125mm x 32mm

$23.55 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $23.55 AUD North American - $23.55 AUD

Top Plate Option

ISO

North American

---

More Info

MNN125/MZH 150 Kg Zinc Castor Bolt-Hole Black Nylon 125mm x 32mm

$28.35 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 103mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN125/MZHDL 150 Kg Zinc Castor Bolt-Hole Direction Lock Only Black Nylon 125mm x 32mm

$36.05 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN125/MZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 125mm x 32mm

$36.05 (Incl. GST)

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MNN125/MZP 150 Kg Zinc Castor Swivel Black Nylon 125mm x 32mm

$28.35 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- N/A
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 103mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $28.35 AUD North American - $28.35 AUD

Top Plate Option

ISO

North American

---

More Info

MNN125/MZPDL 150 Kg Zinc Castor Swivel Direction Lock Only Black Nylon 125mm x 32mm

$36.05 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Direction Only
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $36.05 AUD North American - $36.05 AUD

Top Plate Option

ISO

North American

---

More Info

MNN125/MZPTB 150 Kg Zinc Castor Swivel Total Brake Black Nylon 125mm x 32mm

$36.05 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 150 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- Black Nylon
• -Wheel Bearing Type- Plain
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 125mm x 32mm
• -Overall Height- 161mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

ISO - $36.05 AUD North American - $36.05 AUD

Top Plate Option

ISO

North American

---

More Info
