Spring Loaded Gate Castors

Sort by:

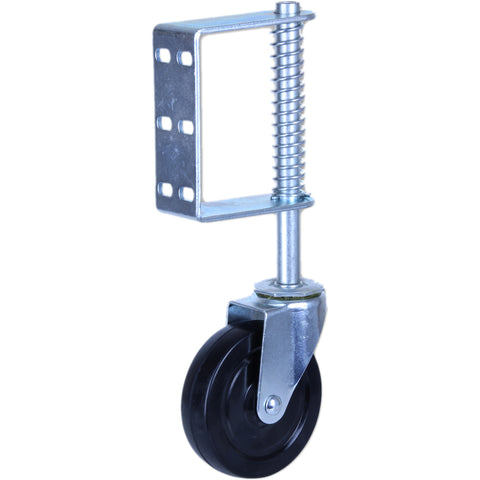

Heavy-Duty Spring Loaded Gate Castor 100 Kg

Castors

$40.00 (Incl. GST)
Heavy-Duty Spring Loaded Gate Castor 100 Kg

Heavy-Duty Spring Loaded Gate Castor 100 Kg

$40.00 (Incl. GST)

Technical Specifications

  • -Material- Nylon Wheel, Zinc plated Steel Frame
  • -Wheel Diameter- 125mm
  • -Swivel Radius- 100mm
  • -Overall Height- 370mm
  • -Bracket Off-set- 115mm
  • -Bracket Mount holes- 6 holes, 9.4mmx16mm slotted, spaced at 25 apart x 50mm + 50mm
  • -Load Capacity- 100 Kg
  • -Spring Travel- 60mm

Spring loaded swinging gate support castor, Heavy duty model, suitable for medium to large gates needing up to 60mm of spring travel. Spring loaded design works well over uneven ground or sloping surfaces. Castor is designed for mounting to the face of the gate.

Delivery or in-store pickup available.


More Info

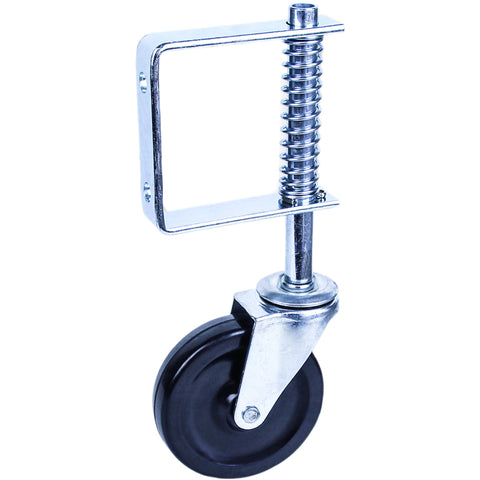

Medium Duty Spring Loaded Gate Castor 50 Kg

Castors

$20.00 (Incl. GST)
Medium Duty Spring Loaded Gate Castor 50 Kg

Medium Duty Spring Loaded Gate Castor 50 Kg

$20.00 (Incl. GST)

Technical Specifications

  • -Material- Nylon Wheel, Zinc plated Steel Frame
  • -Wheel Diameter- 100mm
  • -Swivel Radius- 85mm
  • -Overall Height- 280mm
  • -Bracket Off-set- 87mm
  • -Bracket Mount holes- 10mm dia x 58mm spacing
  • -Load Capacity- 50 Kg
  • -Spring Travel- 45mm

Spring loaded swinging gate/door support castor. Spring loaded design gives up to 45mm of spring travel. Suitable for small to medium gates on uneven or sloping surfaces. Castor mounting bracket is designed to me mounted to the face of the gate or door.

Delivery or in-store pickup available.


More Info
