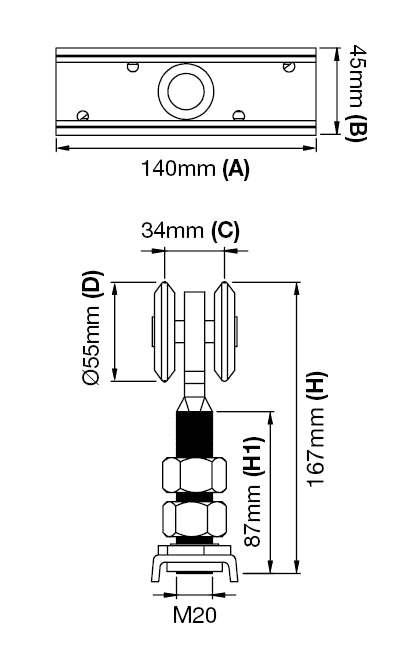

Technical Specifications
-
Load Capacity - 460kg
-
Wheel Material - Steel
-
Wheel Diameter - 55mm
-
Thread Size - M20
-
Thread Length - 85mm
-
Total Height - 167mm

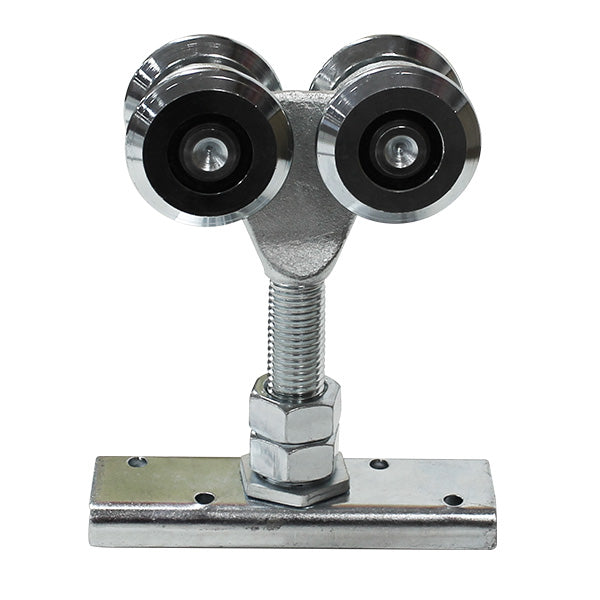

4 Wheel Steel Carriage
This compact 4-wheel steel carriage is built for strength and long service life. With a 460kg load rating, it’s perfect for mid-seize to large sliding doors and track setups. The 55mm hardened steel wheels run smooth on our galvanised track, while the M20 threaded stem (85mm long) makes mounting simple and secure. Standing at 167mm total height, this carriage delivers a tough, low-profile solution for everyday sliding applications.
View compatible range here.
